Family Fun Companies Reactor Parts, Service And Distribution

Hide thumbs Also See for Reactor:
Table of Contents

Advertisement

Quick Links

+
Family Fun Companies, INC.
Parts, Service and Distribution
708-598-3720

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reactor and is the answer not in the manual?

Questions and answers

Related Manuals for Family Fun Companies Reactor

Summary of Contents for Family Fun Companies Reactor

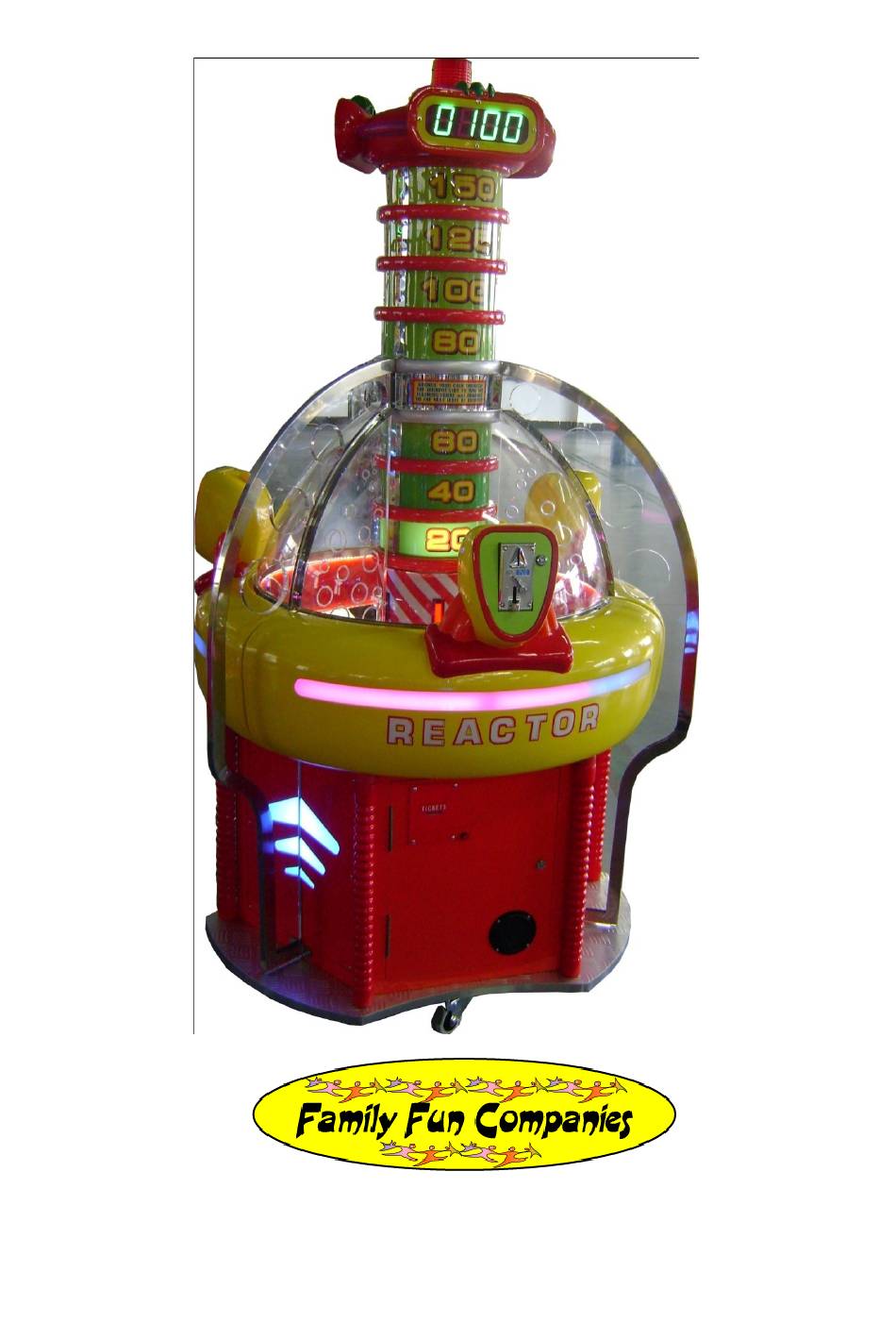

  • Page 1 Family Fun Companies, INC. Parts, Service and Distribution 708-598-3720...

  • Page 2: Table Of Contents

    Reactor Table of Contents 1. Brief Description ......................... 2 2. Caution ............................2 2-1.Notice for Installation ....................... 2 2-2. Notice for Operation ......................2 3. Accessories ........................... 2 4. How to Play ..........................4 5. Technical Parameter ........................4 6. Appearance ..........................5 7.

  • Page 3: Brief Description

    Reactor 1. Brief Description "Reactor” (TW.JQ03.36) is a ticket machine for 1 to 3 players. The play area has 3 symmetrical play stations surrounding a rotating center column target. Each play station can be equally access the rotating targets which are slots in various positions seen vertically on the column.

  • Page 4: Accessories

    Reactor 3. Accessories Check that the following accessories are supplied. Name Remark Manual Power cord 3172(2pcs)；3157(2pcs) ；1866(2pcs) The Bounce Pad Each machine with three small pieces Coin Selector TW-930 (Every 18 machines with one) JL-MainBoard-V2012.PCB Main Board （Every 18 machines with a piece）...

  • Page 5: How To Play

    Reactor 4. How to Play  Players insert coin(s) into the coin selector at the target column which passes through the coin mechanism, players need to correctly grasp the time of the release of the coin, time the release of the coin. The coin is deflected off the bounce pad and passes through the target slot.

  • Page 6: Appearance

    Reactor . Appearance Bounce pad LED display REA-E-3 REA-E-1 Speaker Control Coin selector panel REA-E-4 Ticket Exit Speaker REA-E-9...

  • Page 7: All Parts Description And Location

    Reactor Ticket Dispenser 7. All Parts Description and Location Meter Board Card Reader Knockout Ticket Box Coin Box Speaker REA-E-11 REA-E-10 REA-E-8 Main Board REA-E-13...
  • Page 8 Reactor Lamp Control Board Stepper Motor Driver REA-E-18 DM556 Stepper Motor Driver Setting Default Value Default...
  • Page 9 Reactor Power Supply Cage Audio Power Amplifier...

  • Page 10: Mechanical Parts Illustration

    Reactor 8. Mechanical Parts Illustration Console Mechanism See Reactor Mechanism Exploded View-1...
  • Page 11 Reactor Transmission Mechanism See Reactor Mechanism Exploded View-2...
  • Page 12 Console Mechanism Exploded View 1 NAME REA-1-1 M3*10 Hexagon head screws REA-1-2 the reactor console REA-1-3 M4*6 Hexagon socket headless screws REA-1-4 The reactor console cover REA-1-5 Rubber REA-1-6 the reactor console stand REA-1-7 Countersunk head screws M3*10 REA-1-8 Lamp board（white...
  • Page 13 Reactor Transmission Mechanism Exploded View 2B...
  • Page 14 Reactor Description REA-2B-1 Motor Stand REA-2B-2 Motor Plate REA-2B-3 Stepper motor REA-2B-4 Spring fixed column REA-2B-5 Spring REA-2B-6 Motor connection screw REA-2B-7 Rotating shaft REA-2B-8 Friction wheel REA-2B-9 Friction wheel locking pieces REA-2B-10 The main frame of turntable REA-2B-11 Turntable inner cover B...

  • Page 15: Component

    Reactor 9. Component 9-1. Meter Board Coins: Total number of coins Tickets: Total number of tickets Game Menu& Options Display: Enter to the menu display and adjustment display. Jackpot Clear: Press this button to clear the coin memory and all data stored.

  • Page 16: 9-3.Coin Selector

    Reactor 9-3.Coin Selector Coin selector is the CPU Comparison Type Coin selector, coin smooth, more accurate identification. Coin release bar ：Press this button to make the coin out if the there is any coin jam. Coin exit：If it is a non-standardized coin, the coin will be paid back to this exit.

  • Page 17: Ticket Dispenser

    Reactor 9-4. Ticket Dispenser Ticket entrance Fixed Sensor panel Ticket entrance Main body Ticket dispenser PCB board LED1 LED2 Ticket release button Ticket entrance: To load tickets. Mounting plate: To fix the ticket dispenser. Tickets exit button: Press this button and the machine dispenses tickets automatically.

  • Page 18: Error Analysis

    Reactor 10. Error Analysis PROBLEM POSSIBLE CAUSE SOLUTION 1. Check power supply AC voltage. 2. Check +5 and +12 DC output. Replace power supply cage if there 1. The power is not on. is no output. 2.Power supply box failure 3.

  • Page 19: Appendix

    Reactor 11. Appendix 11-1．PIN Connection on Main Board Port Port Program Specification Wiring Code Items I/O No. Of Wiring Color Function IN1.0 IN#0 0.3mm Coin In IN1.1 IN#1 0.3mm 1#Coin signal +12v 0.3mm IN1.2 IN#2 0.3mm 1# Ticket Dispenser Feedback +12v 0.3mm...
  • Page 20 0.3mm Coin Meter OUT1.3 OUT#3 0.3mm Coin-In Lamp OUT1.4 OUT#4 0.3mm Alarm Lamp for No Ticket 1# Red light of coin reactor OUT1.5 OUT#5 0.3mm board 1#Green light of coin reactor OUT1.6 OUT#6 0.3mm board 1#Blue light of coin reactor OUT1.7...

  • Page 21: Function Setting Instruction（Ver:010

    Reactor OUT2.5 OUT#13 0.3mm Alarm Lamp for No Ticket +12v 2# Red light of coin reactor OUT2.6 OUT#14 0.3mm board +12v 2# Green light of coin reactor OUT2.7 OUT#15 0.3mm board +12v 2# Blue light of coin reactor OUT3.0 OUT#16 0.3mm...
  • Page 22 Reactor Press the MENU button to enter Function Settings during non-game play. The Function Settings: LED（1000、100）showed MENU(Press the Menu button to change the value). Low 2 (10, a bit) LEDs display the OPTION button (Press the OPTION button to change the value).when entering the MENU 15, press the test button to test.
  • Page 23 Reactor Mega Jackpot Surprise Value Every No Mercy Ticket 15 Minutes Mega Jackpot Surprise Value Every These 1 Mercy Ticket 30 Minutes function Mega Jackpot Surprise Value Every are valid 2 Mercy Ticket 45 Minutes when the player Mega Jackpot Surprise Value Every...
  • Page 24 Reactor Error Code: E1: Alarm for Coin-In Timeout no-t: Alarm for Ticket-Out Timeout no-c：Alarm for Coin-Out Timeout Note: 1. Each side of the alarm display on the each side digital, 7 and 9 settings must be set to open in item 6 to be useful.

  • Page 25: Lamp Control Board Connection Table

    Reactor 11-3. Lamp Control Board Connection Table JL_YYJ_KZ.PCB Port Port Specification Wiring Function Remark Code Of Wiring Color φ0.3mm Side light φ0.3mm Awards alarm lamp φ0.3mm Side light φ0.3mm φ0.3mm parallel connection Side light φ0.3mm All Light + 5V power Coin-in testing lamp φ0.3mm...
  • Page 26 Reactor Notice: Contents subject to change without notice.
