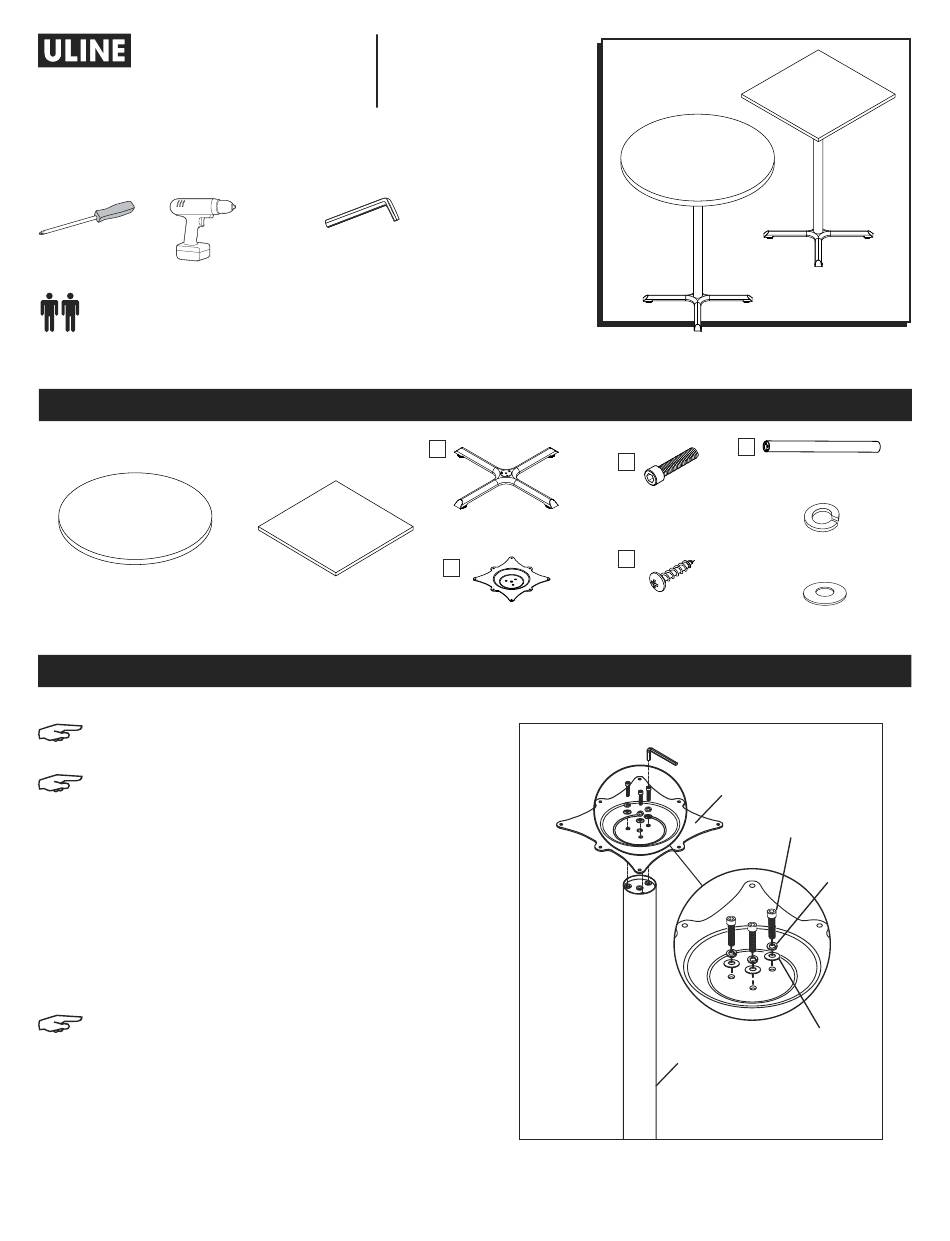

U-Line H-6966 Manual

H-6966, H-6967, H-6968
H-6969, H-10142
BAR HEIGHT TABLE
TOOLS NEEDED
Phillips
Screwdriver (Optional)
Two Person Assembly
Recommended
Round Tabletop x 1
(For H-6966, H-6967 and H-10142)
NOTE: Use Allen wrench to tighten bolts (A). Use
Phillips screwdriver to tighten screws (B).
NOTE: Assemble on a smooth, non-marring
surface to avoid scratching.
• Check that all parts are included.
• Instructions are identical for tables with
square tops and tables with round tops.
1. Align tabletop mounting plate (D) with holes on
column (E). Use three M8 x 35 mm bolts (A), three
locking washers and three washers to secure base
to center post. Fully tighten using an Allen wrench.
(See Figure 1)
NOTE: Both ends of column (E) are identical.
Attach tabletop mounting plate (D) to either
end of column.
PAGE 1 OF 6
1-800-295-5510
uline.com
Drill Allen Wrench
(Included)
Square Tabletop x 1
(For H-6968 and H-6969)
PARTS
F
Base x 1
D
Tabletop Mounting
Plate x 1
ASSEMBLY
Figure 1
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
E
A
M8 x 35 mm Bolt x 6
Locking Washer x 6
B
M5 x 25 mm Screw x 8
D
E
Column x 1
Washer x 6
A
Locking
Washer
Washer
1124 IH-6966
