Chest Freezer
MECHANICAL CONTROL SERIES
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.

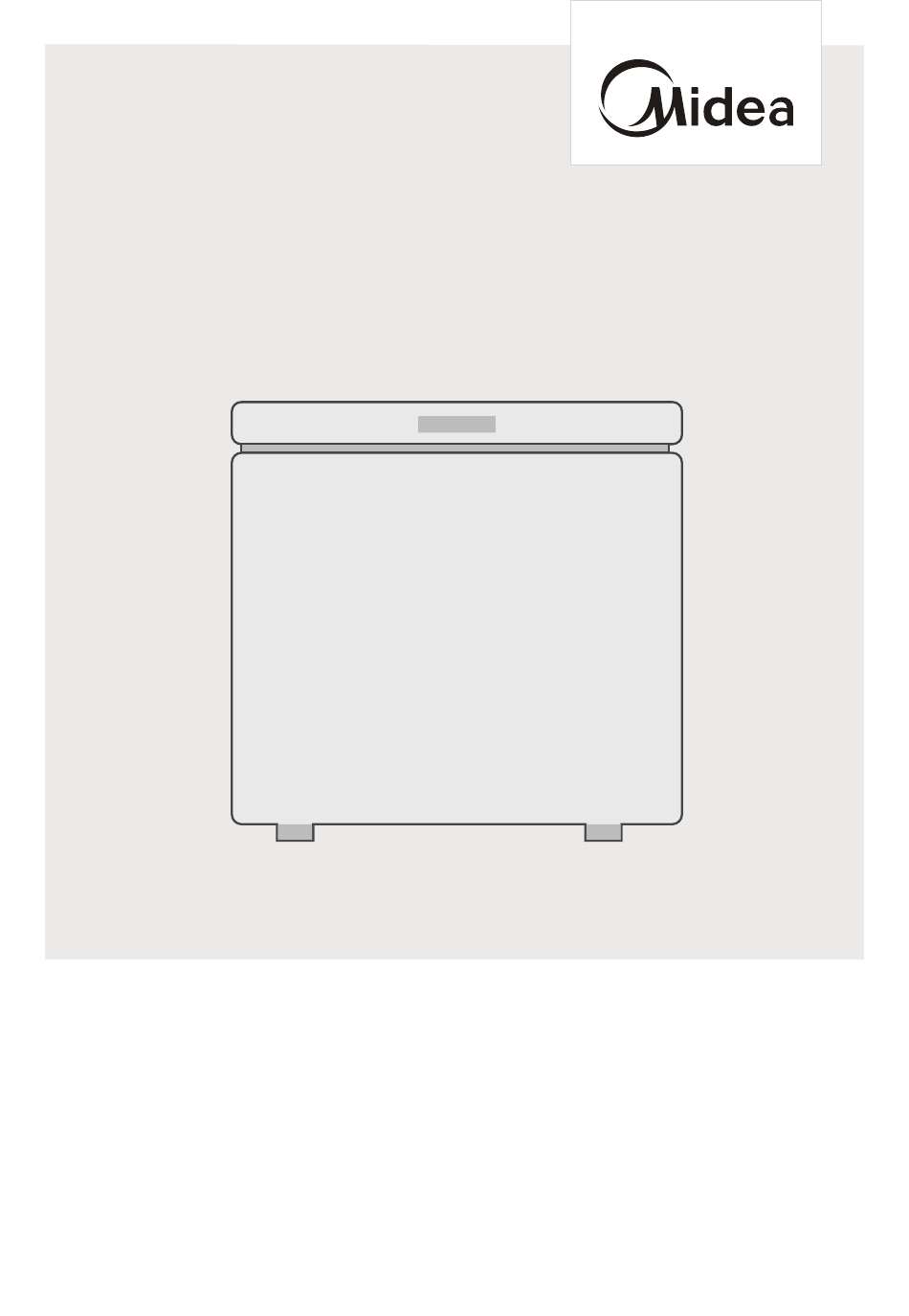

The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Advertisement
Related Manuals for Midea HS-179
Summary of Contents for Midea HS-179
- Page 1 Chest Freezer MECHANICAL CONTROL SERIES USER MANUAL Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. The diagram above is just for reference.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way. -
Page 3: Specifications
SPECIFICATIONS Rated Vol tage Freezer Overal l Di mensi on Product model Rated Current /Frequency compartment Vol ume (H x W x D)mm 220-240V~/50Hz 1.0A 136L 850x730x523mm HS-179 HS-252C 220-240V~/50Hz 0.65A 191L 850x945x523mm HS-324C(W)SKD 220-240V~/50Hz 1.4A 249L 850x985x600mm HS-377C/HS-377CN 220-240V~/50Hz 0.9A... -
Page 4: Product Overview
PRODUCT OVERVIEW Names of components Door handle (optional) Drainage hole Lamp (optional) Cabinet Shelving basket (optional) Hinge Shutter Universal wheel (optional) Temperature control panel ATTENTION Images shown here are intended as examples only. -
Page 5: Product Installation
PRODUCT INSTALLATION Install Instruction For refrigerating appliances with climate class • Depending on the climate class, This refrigerating appliance is intended to be • The climate class can be found on the rating plate. The product may not • Effective temperature range •... - Page 6 Caster Installation (optional) Unplug the unit from power source and empty contents before caster installation. Lock and secure lid to prevent opening during caster installation. The appliance comes with a caster installation kit shipped in basket of chest can be then be locked into place. Required Tool: Phillips screwdriver Caster Kit contents: Part A...
- Page 7 Installation of door handle (optional) Users can install it by themselves: Step 1: Just shown as the picture, align the handle base hole and the applicative door hole, then use the screwdriver tighten screw with the door. Step2: Align the clip on handle cover and the slot on the handle base , the Installation of lock (optional) A...
-
Page 8: Operation Instructions
OPERATION INSTRUCTIONS Control panal A\B • Please electrify the chest freezer, the “POWER” lamp will shine(green light). Recommended gear • Rotate the thermostat knob clockwise, the temperature inside chest freezer will be lower and lower. • “COOLING” means cooling zone, Recommended “FREEZING”means the freezing zone. - Page 9 Control panal C\D • Connect the freezer to power supply and “POWER” indicator will shine. • The interior temperature of the freezer is adjusted through the thermostat knob,Clockwisely rotate the thermostat knob and the interior temperature will drop. “ MIN ”...
- Page 10 Control panal E\F • Connect the freezer to power supply and “Power” indicator (the green light) will shine. “ Run” indicator (the red light) will shine when the compressor is running. • The set temperature is adjusted through the thermostat knob. The number “ 1, 2, 3, 4, 5, 6, the lower the number is, the higher the temperature inside will be and vice versa.
- Page 11 Control panal G\H • Connect the freezer to power supply an “Power” indicator will shine; “Run” indicator will shine when the compressor is running; “ALARM” indicator light when the inside temperatureis too high. • The temperature of the freezer is adjusted through the thermostat knob.
- Page 12 Control panal I\J Control panel with indicator light • Connect the freezer to power supply and “ POWER ” indicator ( the green light )will shine. • The interior temperature of the freezer is adjusted through the thermostat knob, Recommended gear Clockwisely rotate the thermostat knob and the interior temperature will drop.
- Page 13 Tips on storing food • The low temperature of freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice. • closed containers Items such as bottled beer, beverages, etc. •...
-
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE Your freezer is designed for year-round use and requires minimal cleaning recommend that you clean the freezer regularly. Defrost Freezer shall be manually defrosted. • Unplug the freezer and open the freezer door, remove foods and shelving wipe the defrost water with a dry, soft cloth. -
Page 15: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Whether the freezer is plugged and connected to power; • Low voltage Not work •... - Page 16 Problem Possible reason • stable; Loud noises • Whether the freezer accessories are properly placed. • After refrigeration, there will be pressure difference between the inside and outside of the freezer to result in door opening phenomenon. • The freezer enclosure may emit heat during operation Over heat on specially in summer, this is caused by the radiation of the sidewall...
