Service Manual_2022-V1.0

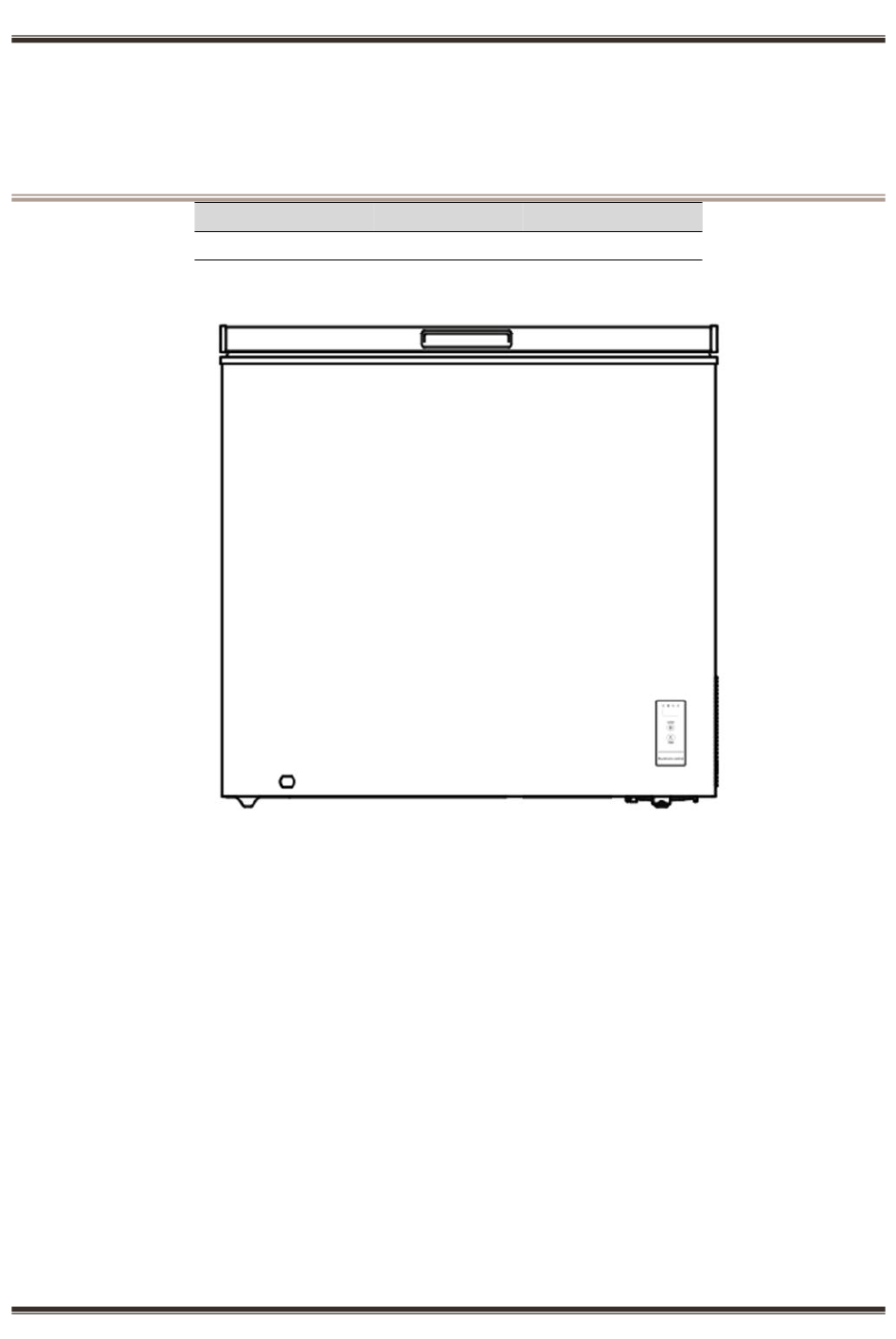

Service Manual

CHEST FREEZER SERIES

Applicable Models

Model Code

Applicable Models

HS-384CEN

CE-BD295E-JT

22032010004821

The picture in this service manual is only for reference, and specific

appearance and configuration are subject to the real product.

This manual mainly teaches the method, the specific work skill needs

engineer to accumulate through the daily work.

Table of Contents

Need help?

Do you have a question about the HS-384CEN and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea HS-384CEN

Page 1 Service Manual CHEST FREEZER SERIES Applicable Models Model Code Applicable Models HS-384CEN CE-BD295E-JT 22032010004821 The picture in this service manual is only for reference, and specific appearance and configuration are subject to the real product. This manual mainly teaches the method, the specific work skill needs...
Page 2: Important Safety Notice
Service Manual_2022-V1.0 WARNING Important Safety Notice There are special components used in this equipment which are important for safety. These parts are marked in the Schematic Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards.
Page 3: Table Of Contents
Service Manual_2022-V1.0 Contents SIGNIFICANT UPDATE NOTES (NONE) ......................5 2. SAFETY WARNING CODE ............................. 6 2.1 W ..........................6 ARNING FOR OPERATION SAFETY 2.2 S ......................... 8 AFETY INSTRUCTION FOR REFRIGERANT 3. TRANSPORT ................................9 3.1 H ..................................9 ANDLING 4. INSTALLATION AND COMMISSIONING ......................10 4.1 D ........................10 ISASSEMBLY AND...
Page 4 Service Manual_2022-V1.0...
Page 5: Significant Update Notes (None)
Service Manual_2022-V1.0 1. Significant update notes (None)
Page 6: Safety Warning Code
Service Manual_2022-V1.0 2. Safety Warning Code 2.1 Warning for operation safety Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your freezer. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your freezer.
Page 7: Connecting Electricity
Service Manual_2022-V1.0 CONNECTING ELECTRICITY Electrical Shock Hazard. Failure to follow these instructions can Plug into a grounded 3-prong outlet. result in death, fire, or electrical shock. Do not remove the ground prong. Do not use an adapter. WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death.
Page 8: Grounding Requirement
Service Manual_2022-V1.0 13) Do not store or use gasoline or any flammable liquids inside or in the vicinity of this freezer. 14) Do not use extension cords or ungrounded (two-prong) adapters with this freezer. If the power cord is too short, have a qualified electrician install an outlet near the freezer. Use of an extension cord can negatively affect the freezer’s performance.
Page 9: Transport
Service Manual_2022-V1.0 3. Transport 3.1 Handling Handling 1)Protect the refrigerator in moving it,Same as shown as lef t photo, please move it by handcart with cushion 2)Remove all packing materials and bottom cushion, the m ove into house for placement 3)After moving it to appropriate location, wait for 2 hours bef ore power on.
Page 10: Installation And Commissioning
Service Manual_2022-V1.0 4. Installation and commissioning 4.1 Door Disassembly and Assembly The refrigerator door needs to be dismantled if it cannot enter the room in the whole. 4.2 Installation location Installation location Location that is easy for ventilation shall be chosen to facilitate heat dissipation, enhance its performance and reduce the energy consumption.
Page 11: Installation Of Door Lock
Service Manual_2022-V1.0 1.Fix the lock loop to its mounting hole near the frame in the front side plate of the box with a M4x20 or M4x8 screw. Pay attention to the direction of the lock loop with its countersunk side facing outwards. 2.Hold the handle with the left hand, and aim its mounting hole at the mounting hole of the door.
Page 12: Product Configuration And Dimension
Service Manual_2022-V1.0 5. Product configuration and dimension 5.1 Main parts and their names (The picture is only for reference, and specific appearance and configuration are subject to the real product) ❶ Door shell ❼ Levelling feet Freezer chamber Refrigerator chamber ❷...
Page 13: External Dimension
Service Manual_2022-V1.0 5.2 External dimension Description Code Size (mm) Height to Top of Case Width 1115 Depth/Hinge Depth Height (Door open) 1550 (The picture is only for reference)
Page 14: Location Of S/N
Service Manual_2022-V1.0 5.3 Location of S/N Front view Some products also have S/N on the lower part of the right side of the Cabinet.
Page 15: Product Specification
Service Manual_2022-V1.0 6. Product specification 6.1 Electrical parameters Product Name CE-BD295E-ST Applicable Models HS-384CEN Item Specification Refrigerant R600a Compressor PZ75H1W Starter(PTC) TY-QZ-003 / QPE2-A15MD3 3TM149TF2/DRB16T61A1 Variable frequency driver board None Capacitor 3.0μF/450V 25.82±7%Ω Rmc: Winding resistance of compressor wiring 20.62±7%Ω Ω...
Page 16: Circuit Diagram
Service Manual_2022-V1.0 6.2 Circuit diagram...
Page 17: Dismantling Of Parts
Service Manual_2022-V1.0 8. Dismantling of parts 8.1 Parts on the door Door seal 1)Pull the door seal from the corner 2)Take efforts until door seal totally detaches from door inner liner groove, remove the door seal 3)Fixing the four corners and pressing smoothly. The hinge cover The hinge cover teardown 1) Push the hinge cover from the bottom to the top and...
Page 18 Service Manual_2022-V1.0 2) Open the slanted upward of hinge cover to a certain angle by a screwdriver and remove the hinge cover. Wear safety gloves for fear of cutting the hand. The hinge cover install 1) When the door is closed, open the lower hinge cover along the side wall to a suitable angle and push forwards into the side wall of the hinge until the hinge cover boss completely falls into the hinge hole.
Page 19: Parts Inside The Refrigerator
Service Manual_2022-V1.0 8.2 Parts inside the refrigerator Basket Open the door and upwardly lift the basket Note: There are plastic baskets and wire baskets, and the basket we offer you is subject to the real product you received. Inside water pipe cover Counterclockwise to remove the pipe cover...
