Service Manual_2018-V2.0

Service Manual

CHEST FREEZER SERIES

Applicable Models

Model Code

Applicable Models

HS-259CN

CE-BD100-ST

22032010004641

The picture in this service manual is only for reference, and specific appearance

and configuration are subject to the real product.

This manual mainly teaches the method, the specific work skill needs engineer to

accumulate through the daily work.

Need help?

Do you have a question about the HS-259CN and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea HS-259CN

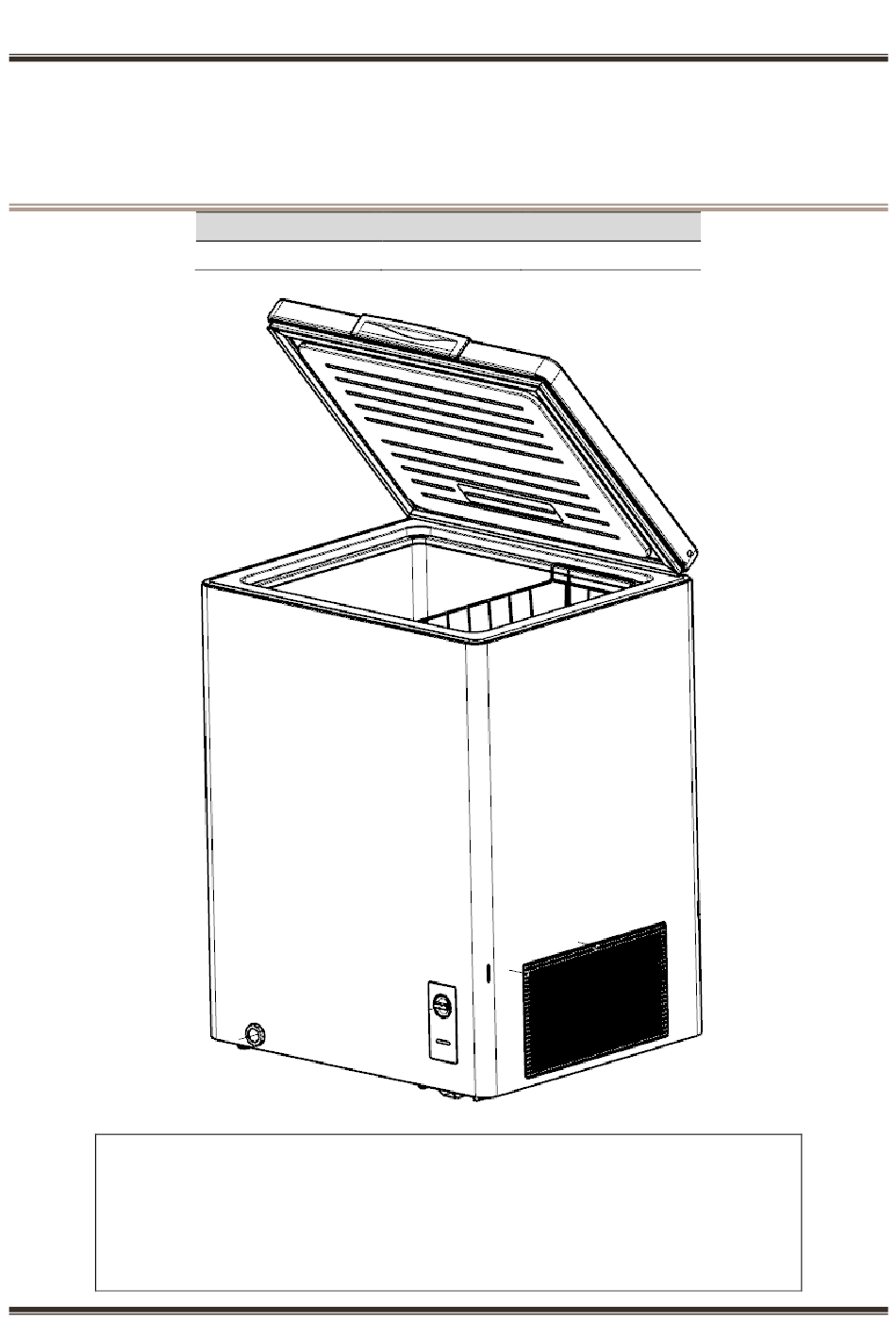

Page 1 Service Manual CHEST FREEZER SERIES Applicable Models Model Code Applicable Models HS-259CN CE-BD100-ST 22032010004641 The picture in this service manual is only for reference, and specific appearance and configuration are subject to the real product. This manual mainly teaches the method, the specific work skill needs engineer to...
Page 2 Manufacturers or distributors are not responsible for the content of the Manual and interpretation thereof. Midea Refrigerators Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales Corporation of Midea Refrigerators.
Page 3 Service Manual_2018-V2.0 Contents SIGNIFICANT UPDATE NOTES (NONE) ......................5 2. SAFETY WARNING CODE ............................6 2.1 W ........................... 6 ARNING FOR OPERATION SAFETY 2.2 S AFETY INSTRUCTION FOR REFRIGERANT ......................... 8 3. TRANSPORT ................................9 3.1 H ANDLING ................................... 9 4. INSTALLATION AND COMMISSIONING ......................10 4.1 D ISASSEMBLY AND SSEMBLY...
Page 4 Service Manual_2018-V2.0 10.1 C ..................29 OMPRESSOR ON AND OFF ONTROL SPECIFICATIONS 11. TROUBLESHOOTING METHOD ........................30 11.1 N OT COOLING ................................. 30 11.2 N ..........................31 O WORKING OF COMPRESSOR 11.3 T HERMOSTAT MALFUNCTION NDERCOOLING ...................... 31 11.4 L ..............................
Page 5 Service Manual_2018-V2.0 1. Significant update notes (None)
Page 6 Service Manual_2018-V2.0 2. Safety Warning Code 2.1 Warning for operation safety Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your freezer. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your freezer.
Page 7 Service Manual_2018-V2.0 CONNECTING ELECTRICITY Electrical Shock Hazard. Failure to follow these instructions can result in death, fire, or electrical shock. Plug into a grounded 3-prong outlet. Do not remove the ground prong. Do not use an adapter. WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death.
Page 8 Service Manual_2018-V2.0 responsibility to comply with federal and local regulations when disposing of this product. 12) This freezer is intended to be used in household and similar environments. 13) Do not store or use gasoline or any flammable liquids inside or in the vicinity of this freezer.
Page 9 Service Manual_2018-V2.0 3. Transport 3.1 Handling Handling 1)Protect the refrigerator in moving it,Same as shown as lef t photo, please move it by handcart with cushion 2)Remove all packing materials and bottom cushion, the m ove into house for placement 3)After moving it to appropriate location, wait for 2 hours bef ore power on.
Page 10 Service Manual_2018-V2.0 4. Installation and commissioning 4.1 Door Disassembly and Assembly The refrigerator door needs to be dismantled if it cannot enter the room in the whole. 4.2 Installation location Installation location Location that is easy for ventilation shall be chosen to facilitate heat dissipation, enhance its performance and reduce the energy consumption.
Page 11 Service Manual_2018-V2.0 1- Handle 2- M5*14 screw(two) 3- Screw hole cover (two) 1) The handle is inserted below the display control board of door, aligning with the screw hole. 2) Fixing the handle by using the screw. 3) Assemble the screw hole cover onto the screw hole. 1.Fix the lock loop to its mounting hole near the frame in the front side plate of the box with a M4x20 or M4x8 screw.
Page 12 Service Manual_2018-V2.0 5. Product configuration and dimension 5.1 Main parts and their names (The picture is only for reference, and specific appearance and configuration are subject to the real product) Freezer chamber Refrigerator chamber ❶ Door shell ❼ Compressor mounting panel ❷...
Page 13 Service Manual_2018-V2.0 5.2 External dimension HS-131CN Code Size (mm) Description Height to Top of Case Width Depth/Hinge Depth 1350 Height (Door open) (The picture is only for reference)
Page 14 Service Manual_2018-V2.0 5.3 Location of S/N Some products also have S/N on the lower part of the right side of the Cabinet.
Page 15 Service Manual_2018-V2.0 6. Product specification 6.1 Electrical parameters Applicable Models HS-259CN Product Name UR-BD199C1-SQ Product Code 22032010004641 Item Specification Refrigerant R600a Compressor EZ59E1A Starter(PTC) QP2-4R7 Overload protector(OLP) DRB28R61A1 Integrate PTC+OLP None Variable frequency driver board None Capacitor None Rmc：7.86±7%Ω Winding resistance of compressor wiring terminal Rsc：7.24±7%Ω...
Page 16 Service Manual_2018-V2.0 6.3 Circuit diagram...
Page 17 Service Manual_2018-V2.0 7. Refrigerating piping system and circulating route of cooling air 7.1 Refrigerating piping system ❶Compressor→❷Right condenser→❸Left Condenser→❹Dry filter→❺Capillary tube→❻Evaporator 7.2 Special soldering position...
Page 18 Service Manual_2018-V2.0 8. Dismantling of parts 8.1 Parts on the door Door seal 1)Pull the door seal from the corner 2)Take efforts until door seal totally detaches from door inner liner groove, remove the door seal 3)Fixing the four corners and pressing smoothly. The hinge cover The hinge cover teardown 1）Push the hinge cover from the bottom to the top and...
Page 19 Service Manual_2018-V2.0 Open the 2）slanted upward of hinge cover to a certain angle by a screwdriver and remove the hinge cover. Wear safety gloves for fear of cutting the hand. The hinge cover install 1）When the door is closed, open the lower hinge cover along the side wall to a suitable angle and push forwards into the side wall of the hinge until the hinge cover boss completely falls into the hinge hole.
Page 20 Service Manual_2018-V2.0 8.2 Parts inside the refrigerator Basket Open the door and upwardly lift the basket Note: There are plastic baskets and wire baskets, and the basket we offer you is subject to the real product you received. Inside water pipe cover Counterclockwise to remove the pipe cover 8.3 Light system Door light disassembly and assembly...
Page 21 Service Manual_2018-V2.0 8.4 Compressor case shutter Pull down the screw, open the shutter. Compressor and the cooling system pipe 1）Cut off the compressor pipeline.-❶Cut off the process pipeline.-❷Cut off the low-pressure muffler.- ❸Cut off the high-pressure exhaust pipe. 2-1）Remove the screws(for some models) -Two screws outside -One screw inside 2-2）Remove the metal clamp(for some models)
Page 22 Service Manual_2018-V2.0 3）Remove the clipping strip Slowly pull it out 4）Remove the protective cover -Pry the protective cover slowly from the upper part, -Pull it out and remove it. 5）Remove the starter and protector Unplug the starter and protector (you can use a screwdriver to pry it slowly) 6）Loosen the screw of the compressor bottom plate, remove the floor together with the compressor from the...
Page 23 Service Manual_2018-V2.0 8）Use Pipe cutter cut off the condenser tube❽, then Shear off capillary ❾ by the capillary tube scissors. 9）Replace the compressor and welding the compressor pipeline.-❿Welding the process pipeline.-⓫Welding the low-pressure muffler.-⓬Welding the high-pressure exhaust pipe. 10）Replace the filter, Cu-Fe tubes welding ⓭ used Ag welding rod, Cu-Cu tubes welding ⓮...
Page 24 Service Manual_2018-V2.0 12）Perfusion refrigerant. 13）Use the vise grip pliers clamp the middle of the process pipe, then seal welding process tube⓯⓰. Piping system in the compressor case ❶ Capacitor ❿ Compressor ❷ -1 Front condenser pipeline-1 ⓫ Suction Pipe ❸ -2 Rear condenser pipeline-2 ⓬...
Page 25 Service Manual_2018-V2.0 8.5 Temperature-control box assembly Temperature-control box assembly ❶ screw ❹ Temperature-control panel ❷ Temperature-control box ❺ TEMP. control knob ❸ Thermostat ❻ Indicator light Destuffing 1）Take out of temperature control box assembly by pressing shrapnel with the hands. Note:there are four shrapnels separately in the four corners,require enough strength to press shrapnel.
Page 26 Service Manual_2018-V2.0 4）Pull out the wiring harness and indicator light 5）Pull out the control knob 6）Pull out the fixed nut of the thermostat 7） remove the indicator light and thermostat, the reverse operation is for assembly...
Page 27 Service Manual_2018-V2.0 9. Function and operation 9.1 Operation panel Icons Button ❶ Indicator hole cover/Power indicator ACooling gear B “OFF” C Freezer gear 9.2 Temperature control Control panel without indicator light 1. Connect the freezer to power supply; 2. The temperature in the box is adjusted by the temperature control knob, the temperature in the box is reduced by the clockwise rotation of the temperature control knob, in the range of "COOLING", the temperature in the box is refrigerated, in the range of "FREEZING", the temperature in the box is frozen;...
Page 28 Service Manual_2018-V2.0 9.3 High temperature an alarm（None） 9.4 Defrosting function Unplug the freezer and open the freezer door, remove foods and drawers before defrosting; Open the outflow holes and drainage holes(and place water container at the outflow holes); indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth.
Page 29 Service Manual_2018-V2.0 10. Compressor 10.1 Compressor on and off Control specifications 1.1 When one of the following conditions is met, the compressor stops: 1) Tr ≤ Trt； 2) The compressor runs continuously for more than 3 hours (Stop 5 minutes); 1.2 When all the following conditions are met, the compressor starts up: 1) Tr ≥Trk;...
Page 30 Service Manual_2018-V2.0 11. Troubleshooting Method 11.1 Not cooling...
Page 31 Service Manual_2018-V2.0 11.2 No working of compressor 11.3 Thermostat malfunction-Undercooling...
Page 32 Service Manual_2018-V2.0 11.4 Light is not on 11.5 Noise...
Page 33 Service Manual_2018-V2.0 13. Figures and details of repair parts See this section in the TSP.
Page 34 MIDEA appliances after sales website For more information about Midea appliances after sales, please visit the tsp.midea.com tsp.midea.com For more information about the service manual, please visit the tsp.midea.com...
