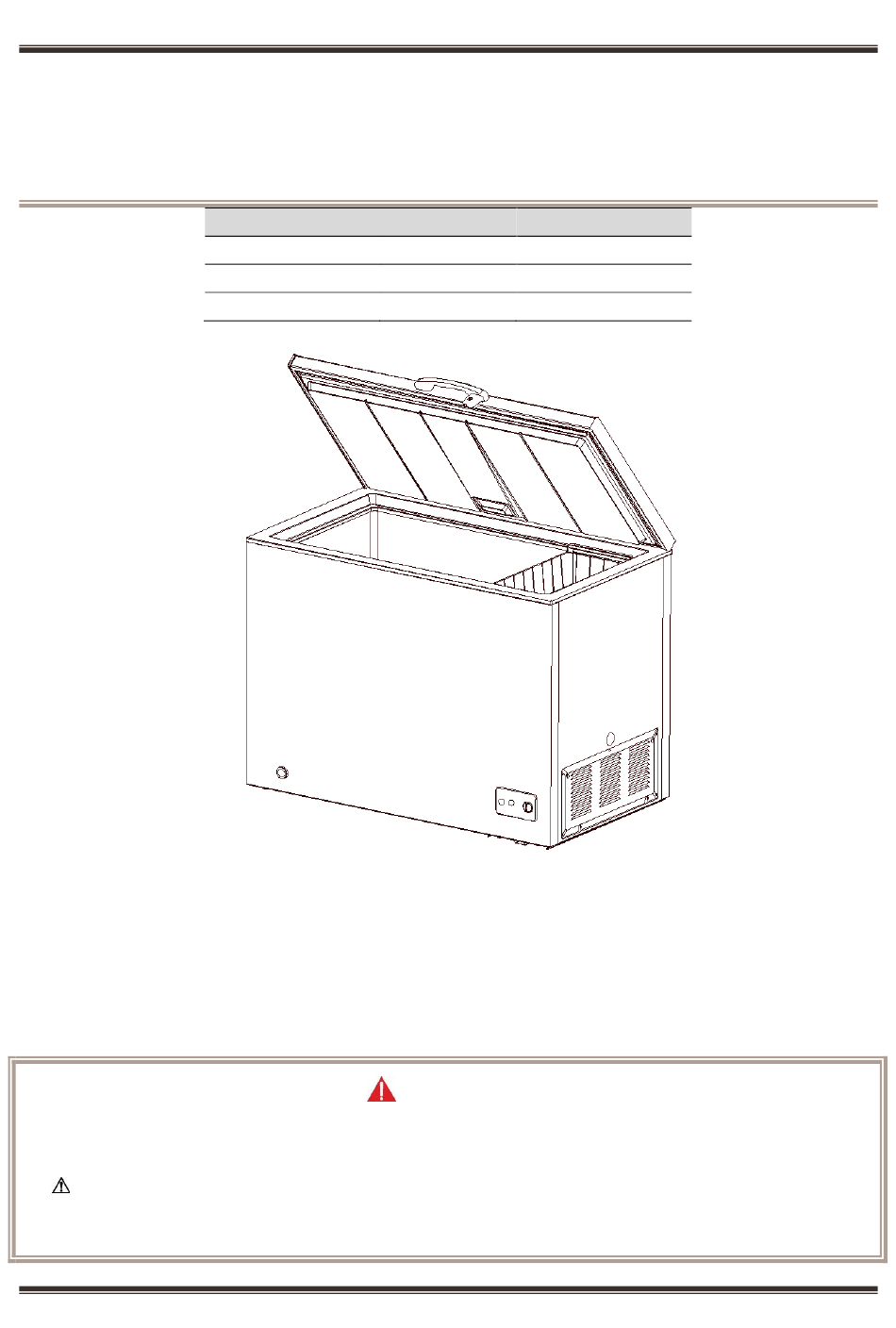

Service Manual
The picture in this service manual is only for reference, and specific appearance
and configuration are subject to the real product.
This manual mainly teaches the method, the specific work skill needs engineer to
accumulate through the daily work.
There are special components used in this equipment which are important for safety. These parts are marked
by
in the Schematic Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is
essential that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacturer.
CHEST FREEZER SERIES
Applicable Models
HS-377CN
Important Safety Notice
Model Code
Applicable Models
CE-BD290-FT
22032010002322
WARNING
1
Service Manual_2018-V2.0
Advertisement
Table of Contents
Related Manuals for Midea HS-377CN
Summary of Contents for Midea HS-377CN
- Page 1 Service Manual CHEST FREEZER SERIES Applicable Models Model Code Applicable Models HS-377CN CE-BD290-FT 22032010002322 The picture in this service manual is only for reference, and specific appearance and configuration are subject to the real product. This manual mainly teaches the method, the specific work skill needs engineer to accumulate through the daily work.
- Page 2 Manufacturers or distributors are not responsible for the content of the Manual and interpretation thereof. Midea Refrigerators Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales Corporation of Midea Refrigerators.
-
Page 3: Table Of Contents
Service Manual_2018-V2.0 Contents SIGNIFICANT UPDATE NOTES(NONE) .....................5 2. SAFETY WARNING CODE ..........................6 2.1 W ARNING FOR OPERATION SAFETY .........................6 2.2 S AFETY INSTRUCTION FOR REFRIGERANT .......................8 3. TRANSPORT ..............................9 3.1 H ANDLING ..............................9 4. INSTALLATION AND COMMISSIONING ..................... 10 4.1D ) .................... - Page 4 Service Manual_2018-V2.0 10. COMPRESSOR ............................29 10.1C ................29 OMPRESSOR ON AND OFF ONTROL SPECIFICATIONS 11. TROUBLESHOOTING METHOD ........................ 30 11.1N ............................30 OT COOLING 11.2 N ......................... 31 O WORKING OF COMPRESSOR 11.3T ..................... 31 HERMOSTAT MALFUNCTION NDERCOOLING 11.4 L ............................
-
Page 5: Significant Update Notes(None)
Service Manual_2018-V2.0 1. Significant update notes(None) -
Page 6: Safety Warning Code
Service Manual_2018-V2.0 2. Safety Warning Code 2.1 Warning for operation safety Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your freezer. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your freezer. - Page 7 Service Manual_2018-V2.0 CONNECTING ELECTRICITY Electrical Shock Hazard. Failure to follow these instructions can Plug into a grounded 3-prong outlet. result in death, fire, or electrical shock. Do not remove the ground prong. Do not use an adapter. WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death.
-
Page 8: Safety Instruction For Refrigerant
Service Manual_2018-V2.0 13) Do not store or use gasoline or any flammable liquids inside or in the vicinity of this freezer. 14) Do not use extension cords or ungrounded (two-prong) adapters with this freezer. If the power cord is too short, have a qualified electrician install an outlet near the freezer. Use of an extension cord can negatively affect the freezer’s performance. -
Page 9: Transport
Service Manual_2018-V2.0 3. Transport 3.1 Handling Handling 1)Protect the refrigerator in moving it,Same as shown as lef t photo, please move it by handcart with cushion 2)Remove all packing materials and bottom cushion, the m ove into house for placement 3)After moving it to appropriate location, wait for 2 hours bef ore power on. -
Page 10: Installation And Commissioning
Service Manual_2018-V2.0 4. Installation and commissioning 4.1Door Disassembly and Assembly(None) The refrigerator door needs to be dismantled if it cannot enter the room in the whole. 4.2 Installation location Installation location Location that is easy for ventilation shall be chosen to facilitate heat dissipation, enhance its performance and reduce the energy consumption. -
Page 11: Installation Of Door Lock
Service Manual_2018-V2.0 1- Handle 2- M5*14 screw(two) 3- Screw hole cover (two) 1) The handle is inserted below the display control board of door, aligning with the screw hole. 2) Fixing the handle by using the screw. 3) Assemble the screw hole cover onto the screw hole. 1.Fix the lock loop to its mounting hole near the frame in the front side plate of the box with a M4x20 or M4x8 screw. -
Page 12: Product Configuration And Dimension
Service Manual_2018-V2.0 5. Product configuration and dimension 5.1 Main parts and their names (The picture is only for reference, and specific appearance and configuration are subject to the real product) Freezer chamber Refrigerator chamber ❶ Door shell ❼ Levelling feet ❷... -
Page 13: External Dimension
Service Manual_2018-V2.0 5.2 External dimension HS-185CN Code Size (mm) Description Height to Top of Case 1115 Width Depth/Hinge Depth 1455 Height (Door open) (The picture is only for reference) -
Page 14: Location Of S/N
Service Manual_2018-V2.0 5.3 Location of S/N Some products also have S/N on the lower part of the right side of the Cabinet. -
Page 15: Product Specification
Service Manual_2018-V2.0 6. Product specification 6.1 Electrical parameters Applicable Models HS-377CN CE-BD290-FT Product Name Product Code 22032010002322 Item Specification Specification Refrigerant R600a Compressor SZ90E1H-SCL Starter(PTC) QP2-15 Overload protector(OLP) DRB20T61A1 Integrate PTC+OLP QPS2-B15MG1＋DRB20T61A1 Variable frequency driver board None Capacitor None Rmc：20.81±7%Ω... -
Page 16: Circuit Diagram
Service Manual_2018-V2.0 6.3 Circuit diagram... -
Page 17: Refrigerating Piping System And Circulating Route Of Cooling Air
Service Manual_2018-V2.0 7.Refrigerating piping system and circulating route of cooling air 7.1 Refrigerating piping system ❶Compressor→❷Right condenser→❸Left Condenser→❹Dry filter→❺Capillary tube→❻Evaporator 7.2 Special soldering position... -
Page 18: Dismantling Of Parts
Service Manual_2018-V2.0 8. Dismantling of parts 8.1 Parts on the door Door seal 1)Pull the door seal from the corner 2)Take efforts until door seal totally detaches from door inner liner groove, remove the door seal 3)Fixing the four corners and pressing smoothly. The hinge cover The hinge cover teardown 1) Strongly apart a proper angle with your hands along... -
Page 19: Parts Inside The Refrigerator
Service Manual_2018-V2.0 The hinge cover install 1) Apart a proper angle with your hands along the side wall of the lower hinge cover when the refrigerator door is closed, align to the side wall of hinge and push forward until the hinge cover boss is fully and correctly inserted into the hinge holes;... -
Page 20: Light System
Service Manual_2018-V2.0 8.3 Light system Door lamp Door lamp disassembly 1) Open the refrigerator door to dismantle the lamp cover; Note: There are two kinds of door lamps, namely, incandescent lamp and LED lamp, and what is shown in the picture is the incandescent lamp. 2) Screw off the screws to remove the incandescent lamp holder or LED lamp panel;... - Page 21 Service Manual_2018-V2.0 1）Cut off the compressor pipeline.-❶Cut off the process pipeline.-❷Cut off the low-pressure muffler.-❸Cut off the high-pressure exhaust pipe. 2-1）Remove the screws(for some models) -Two screws outside -One screw inside 2-2）Remove the metal clamp(for some models) -Disassembly the metal clamp that is fix the electric appliance shield 3）Remove the clipping strip Slowly pull it out...
- Page 22 Service Manual_2018-V2.0 5）Remove the starter and protector Unplug the starter and protector (you can use a screwdriver to pry it slowly) 6）Loosen the screw of the compressor bottom plate, remove the floor together with the compressor from the box. 7）Use the wrench to remove the bolts by steps❹❺❻❼, replace the compressor and reverse process can complete installation.
- Page 23 Service Manual_2018-V2.0 9）Replace the compressorand welding the compressor pipeline.-❿Welding the process pipeline.-⓫Welding the low-pressure muffler.-⓬Welding the high-pressure exhaust pipe. 10）Replace the filter, Cu-Fe tubes welding ⓭ used Ag welding rod, Cu-Cu tubes welding ⓮ used Cu welding rod. 11）Vacuum system,The degree of vacuum below 6Pa. 12）Perfusion refrigerant.
-
Page 24: Temperature-Control Box Assembly
Service Manual_2018-V2.0 ❷ -1 Front condenser pipeline-1 ⓫ Suction Pipe ❸ -2 Rear condenser pipeline-2 ⓬ -1 Rear condenser pipeline-1 ❹ -1Anti-dew pipe-1 ⓭ -2 Front condenser pipeline-2 ❺ Temperature-control box assembly ⓮ -2Anti-dew pipe-2 ❻ Drying filter ⓯ Compressor Assembly Board ❼... - Page 25 Service Manual_2018-V2.0 Destuffing 1）Take out of temperature control box assembly by pressing shrapnel with the hands. Note:there are four shrapnels separately in the four corners,require enough strength to press shrapnel. Suggest pressing one and pushing toward the corner, as the above one by one. 2）Take out of temperature control box assembly after four corner pushed out.
- Page 26 Service Manual_2018-V2.0 4）Pull out the wiring harness and indicator light 5）Pull out the control knob 6）Pull out the fixed nut of the thermostat 7） remove the indicator light and thermostat, the reverse operation is for assembly...
-
Page 27: Function And Operation
Service Manual_2018-V2.0 9. Function and operation 9.1 Operation panel Icons Button ❶ Power indicator Ⓐ refrigeration gear ❷ Run indicator Ⓑ freezer gear indicator Ⓒ Quick freeze gear ❸ Fast freeze ❶ Power indicator Ⓐ “1-2-3-4-5-6”freezer gear ❷ Run indicator Ⓑ... -
Page 28: High Temperature An Alarm
Service Manual_2018-V2.0 4）When turn to “SUPER” or “HI” gear, the freezer getting “fast freeze”, and the compressor will not stop until you turn the button to the other position 5）“OFF” gear is the compressor stop working. 9.3High temperature an alarm “ALARM”... -
Page 29: Compressor
Service Manual_2018-V2.0 10. Compressor 10.1Compressor on and off Control specifications 1.1 When one of the following conditions is met, the compressor stops: 1) Tr ≤ Trt； 2) The compressor runs continuously for more than 3 hours (Stop 5 minutes); 1.2 When all the following conditions are met, the compressor starts up: 1) Tr ≥Trk;... -
Page 30: Troubleshooting Method
Service Manual_2018-V2.0 11. Troubleshooting Method 11.1Not cooling... -
Page 31: No Working Of Compressor
Service Manual_2018-V2.0 11.2 No working of compressor 11.3Thermostat malfunction-Undercooling... -
Page 32: Light Is Not On
Service Manual_2018-V2.0 11.4 Light is not on 11.5 Noise... -
Page 33: Figures And Details Of Repair Parts
Service Manual_2018-V2.0 13. Figures and details of repair parts See this section in the TSP. - Page 34 MIDEA appliances after sales website tsp.midea.com For more information about Midea appliances after sales, please visit the tsp.midea.com For more information about the service manual, please visit the tsp.midea.com For more information about the EV and SBOM, please visit the...
