Service Manual_2018-V2.0

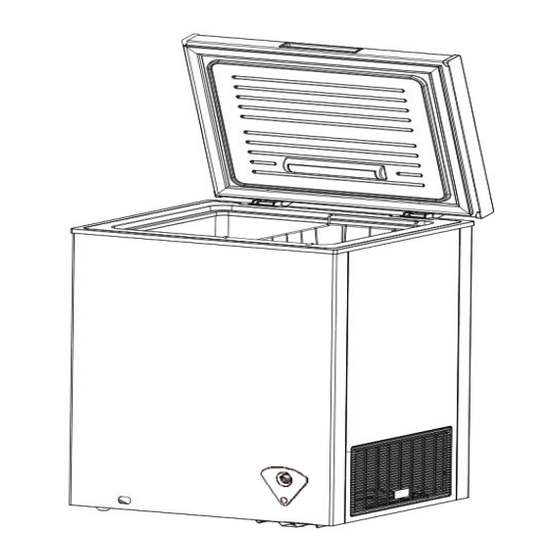

Service Manual
CHEST FREEZER SERIES
Applicable Models
Model Code
Applicable Models
HS-134CN
UR-BD100-SQ
22032010004101
The picture in this service manual is only for reference, and specific appearance
and configuration are subject to the real product.
This manual mainly teaches the method, the specific work skill needs engineer to
accumulate through the daily work.
1
Advertisement
Table of Contents
Related Manuals for Midea HS-134CN
Summary of Contents for Midea HS-134CN
- Page 1 Service Manual CHEST FREEZER SERIES Applicable Models Model Code Applicable Models HS-134CN UR-BD100-SQ 22032010004101 The picture in this service manual is only for reference, and specific appearance and configuration are subject to the real product. This manual mainly teaches the method, the specific work skill needs engineer to...
- Page 2 Manufacturers or distributors are not responsible for the content of the Manual and interpretation thereof. Midea Refrigerators Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales Corporation of Midea Refrigerators.
-
Page 3: Table Of Contents
Service Manual_2018-V2.0 Contents SIGNIFICANT UPDATE NOTES (NONE) ......................5 2. SAFETY WARNING CODE ............................6 2.1 W ........................... 6 ARNING FOR OPERATION SAFETY ......................... 8 2.2 S AFETY INSTRUCTION FOR REFRIGERANT 3. TRANSPORT ................................9 3.1 H ................................... 9 ANDLING 4. INSTALLATION AND COMMISSIONING ......................10 4.1D ........................ - Page 4 Service Manual_2018-V2.0 ..................28 10.1 C OMPRESSOR ON AND OFF ONTROL SPECIFICATIONS 11. TROUBLESHOOTING METHOD ........................29 ................................. 29 11.1 N OT COOLING 11.2 N ..........................30 O WORKING OF COMPRESSOR ...................... 30 11.3 T HERMOSTAT MALFUNCTION NDERCOOLING ..............................31 11.4 L IGHT IS NOT ON 11.5 N...
-
Page 5: Significant Update Notes (None)
Service Manual_2018-V2.0 1. Significant update notes (None) -
Page 6: Safety Warning Code
Service Manual_2018-V2.0 2. Safety Warning Code 2.1 Warning for operation safety Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your freezer. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your freezer. - Page 7 Service Manual_2018-V2.0 CONNECTING ELECTRICITY Electrical Shock Hazard. Failure to follow these instructions can Plug into a grounded 3-prong outlet. result in death, fire, or electrical shock. Do not remove the ground prong. Do not use an adapter. WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death.
-
Page 8: Safety Instruction For Refrigerant
Service Manual_2018-V2.0 13) Do not store or use gasoline or any flammable liquids inside or in the vicinity of this freezer. 14) Do not use extension cords or ungrounded (two-prong) adapters with this freezer. If the power cord is too short, have a qualified electrician install an outlet near the freezer. Use of an extension cord can negatively affect the freezer’s performance. -
Page 9: Transport
Service Manual_2018-V2.0 3. Transport 3.1 Handling Handling 1)Protect the refrigerator in moving it,Same as shown as lef t photo, please move it by handcart with cushion 2)Remove all packing materials and bottom cushion, the m ove into house for placement 3)After moving it to appropriate location, wait for 2 hours bef ore power on. -
Page 10: Installation And Commissioning
Service Manual_2018-V2.0 4. Installation and commissioning 4.1Door Disassembly and Assembly The refrigerator door needs to be dismantled if it cannot enter the room in the whole. 4.2 Installation location Installation location Location that is easy for ventilation shall be chosen to facilitate heat dissipation, enhance its performance and reduce the energy consumption. -
Page 11: Installation Of Handle
Service Manual_2018-V2.0 4.4 Installation of handle Installation of handle 1- Handle 2- M5*14 screw(two) 3- Screw hole cover (two) 1) The handle is inserted below the display control board of door, aligning with the screw hole. 2) Fixing the handle by using the screw. 3) Assemble the screw hole cover onto the screw hole. -
Page 12: Product Configuration And Dimension
Service Manual_2018-V2.0 5. Product configuration and dimension 5.1 Main parts and their names (The picture is only for reference, and specific appearance and configuration are subject to the real product) Freezer chamber Refrigerator chamber ❶ Door shell ❼ Compressor mounting panel ❷... -
Page 13: External Dimension
Service Manual_2018-V2.0 5.2 External dimension Description Code Size (mm) Height to Top of Case Width Depth/Hinge Depth Height (Door open) 1250 (The picture is only for reference) -
Page 14: Location Of S/N
Service Manual_2018-V2.0 5.3 Location of S/N Some products also have S/N on the lower part of the right side of the Cabinet. -
Page 15: Product Specification
Service Manual_2018-V2.0 6. Product specification 6.1 Electrical parameters Applicable Models HS-131CN Product Name UR-BD100-SQ Product Code 22032010004101 Item Specification Refrigerant R600a Compressor FZ59E1D-U Starter(PTC) QP2-4R7 Overload protector(OLP) DRB25T61A1 Integrate PTC+OLP None Variable frequency driver board None Capacitor None Rmc:7.28±7%Ω Winding resistance of compressor Rsc:9.29±7%Ω... -
Page 16: Circuit Diagram
Service Manual_2018-V2.0 6.3 Circuit diagram Thermostat θ Protector... -
Page 17: Refrigerating Piping System And Circulating Route Of Cooling Air
Service Manual_2018-V2.0 7. Refrigerating piping system and circulating route of cooling air 7.1 Refrigerating piping system ❶Compressor→❷ Back hanging wire tube condenser →❸ Front condenser →❹Dry filter→❺Capillary tube→❻Evaporator 7.2 Special soldering position... -
Page 18: Dismantling Of Parts
Service Manual_2018-V2.0 8. Dismantling of parts 8.1 Parts on the door Door seal 1)Pull the door seal from the corner 2)Take efforts until door seal totally detaches from door inner liner groove, remove the door seal 3)Fixing the four corners and pressing smoothly. The hinge cover 1) Strongly apart a proper angle with your hands along the side wall of the lower hinge cover when the... -
Page 19: Parts Inside The Refrigerator
Service Manual_2018-V2.0 The hinge cover install 1) Apart a proper angle with your hands along the side wall of the lower hinge cover when the refrigerator door is closed, align to the side wall of hinge and push forward until the hinge cover boss is fully and correctly inserted into the hinge holes;... -
Page 20: Light System
Service Manual_2018-V2.0 8.3 Light system Door lamp Door lamp disassembly 1) Open the refrigerator door to dismantle the lamp cover; Note: There are two kinds of door lamps, namely, incandescent lamp and LED lamp, and what is shown in the picture is the incandescent lamp. 2) Screw off the screws to remove the incandescent lamp holder or LED lamp panel;... - Page 21 Service Manual_2018-V2.0 1）Cut off the compressor pipeline.-❶Cut off the process pipeline.-❷Cut off the low-pressure muffler.-❸Cut off the high-pressure exhaust pipe. 2-1）Remove the screws(for some models) -Two screws outside -One screw inside 2-2）Remove the metal clamp(for some models) -Disassembly the metal clamp that is fix the electric appliance shield 3）Remove the clipping strip Slowly pull it out...
- Page 22 Service Manual_2018-V2.0 5）Remove the starter and protector Unplug the starter and protector (you can use a screwdriver to pry it slowly) 6）Loosen the screw of the compressor bottom plate, remove the floor together with the compressor from the box. 7）Use the wrench to remove the bolts by steps❹❺❻❼, replace the compressor and reverse process can complete installation.
- Page 23 Service Manual_2018-V2.0 9）Replace the compressor and welding the compressor pipeline.-❿Welding the process pipeline.-⓫Welding the low-pressure muffler.-⓬Welding the high-pressure exhaust pipe. 10）Replace the filter, Cu-Fe tubes welding ⓭ used Ag welding rod, Cu-Cu tubes welding ⓮ used Cu welding rod. 11）Vacuum system,The degree of vacuum below 6Pa. 12）Perfusion refrigerant.
-
Page 24: Temperature-Control Box Assembly
Service Manual_2018-V2.0 Piping system in the compressor case ❶ Capacitor ❿ Compressor ❷ -1 Front condenser pipeline-1 ⓫ Suction Pipe ❸ -2 Hanging wire condenser pipeline-2 ⓬ -1 Hanging wire condenser pipeline-1 ❹ -1Anti-dew pipe-1 ⓭ -2 Front condenser pipeline-2 ❺... - Page 25 Service Manual_2018-V2.0 Destuffing 1） Pull down the screw, open the shutter. 2） Pull out the temperature probe from the temperature 3）Hold two tabs on the back cover of temperature-control box to remove the components 4）Use screwdriver to remove the two screws 5）Separate the temperature-control box from the panel...
- Page 26 Service Manual_2018-V2.0 6）Pull out the control knob 7）Pull out the fixed nut of the thermostat 8) Pull out the wiring harness and indicator light。remove the indicator light and thermostat, the reverse operation is for assembly...
-
Page 27: Function And Operation
Service Manual_2018-V2.0 9. Function and operation 9.1 Operation panel Icons Button Power freezer—super super cooling 9.2Temperature control 1.The temperature of the chamber is adjusted through the thermostat knob, Clock wisely rotate the thermostat knob and the interior temperature will decrease .Rotate to “MIN” gear and interior temperature will increase ;... -
Page 28: Compressor
Service Manual_2018-V2.0 10. Compressor 10.1 Compressor on and off Control specifications 1.1 When one of the following conditions is met, the compressor stops: 1) Tr ≤ Trt； 2) The compressor runs continuously for more than 3 hours (Stop 5 minutes); 1.2 When all the following conditions are met, the compressor starts up: 1) Tr ≥Trk;... -
Page 29: Troubleshooting Method
Service Manual_2018-V2.0 11. Troubleshooting Method 11.1 Not cooling... -
Page 30: No Working Of Compressor
Service Manual_2018-V2.0 11.2 No working of compressor 11.3 Thermostat malfunction-Undercooling... -
Page 31: Light Is Not On
Service Manual_2018-V2.0 11.4 Light is not on 11.5 Noise... -
Page 32: Figures And Details Of Repair Parts
Service Manual_2018-V2.0 13. Figures and details of repair parts See this section in the TSP. - Page 33 MIDEA appliances after sales website tsp.midea.com For more information about Midea appliances after sales, please visit the tsp.midea.com For more information about the service manual, please visit the tsp.midea.com For more information about the EV and SBOM, please visit the...
