SAFETY Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precau- tions. Safety precautions must meet the requirements that apply to this type of weld- ing equipment.
Page 6
6. General precautions Make sure the return cable is connected securely. Work on high voltage equipment may only be carried out by a qualified electrician. Appropriate fire extinquishing equipment must be clearly marked and close at hand. Lubrication and maintenance must not be carried out on the equipment during operation.
WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAUTIONS WHEN WELDING. ASK FOR YOUR EMPLOYER'S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANU- FACTURER'S HAZARD DATA. ELECTRIC SHOCK - Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

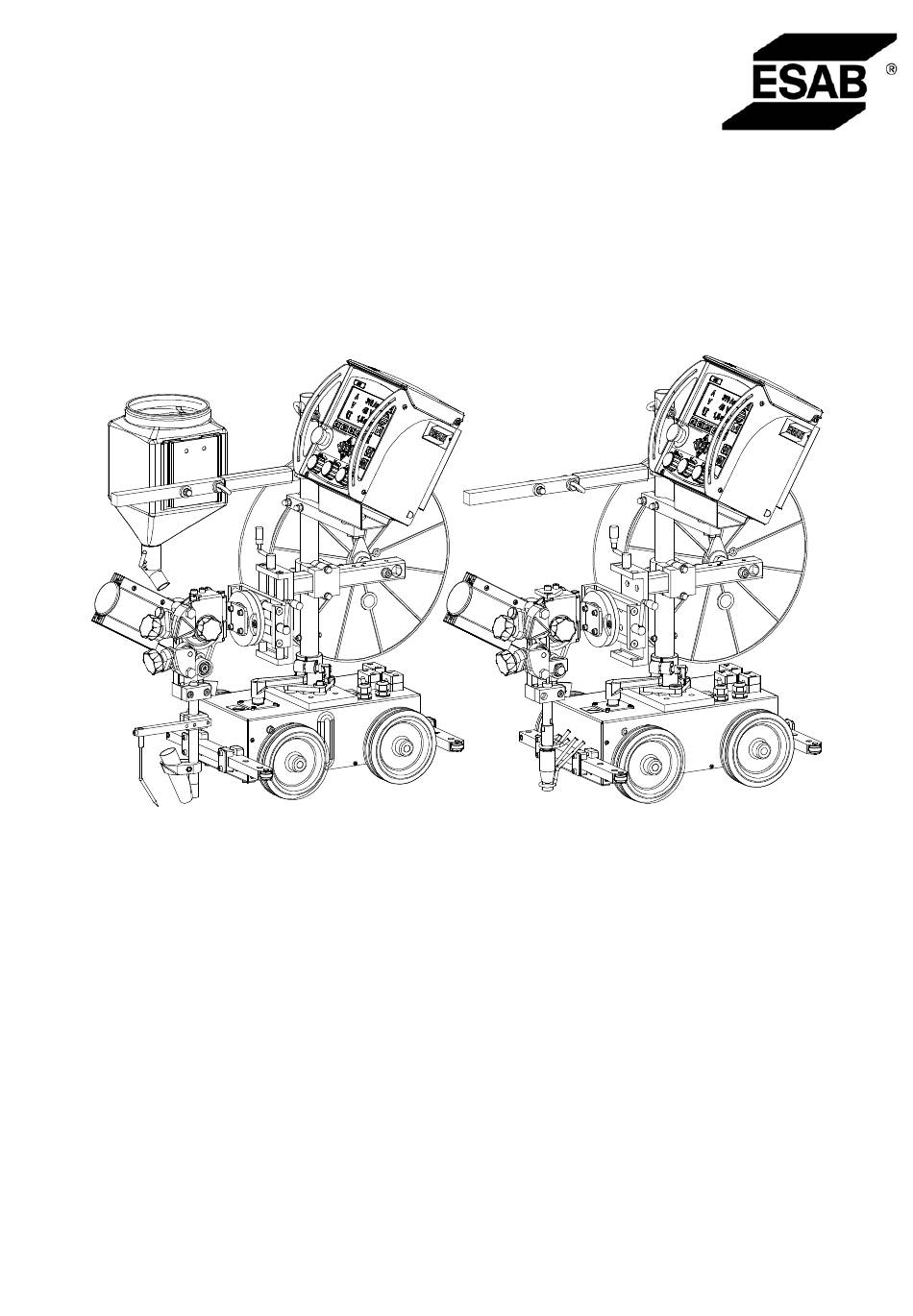

The A2TG J1/ A2TG J1 4WD automatic welding machines are designed for MIG/MAG welding of butt and fillet joints. All other applications are prohibited. They are intended for use in combination with PEK and ESAB's welding power sources LAF or TAF. Welding Method 2.2.1...
Technical data A2TF J1/ A2TG J1 A2TF J1 Twin (SAW) (MIG/MAG) Supply voltage 42 V AC 42 V AC Permissible load at 100 %: 800 A 600 A Wire dimensions: solid single wire 1.6-4.0 mm 0.8-2.5 mm cored wire 1.6-4.0 mm 1.2-3.2 mm solid twin wire 2x1.2-2.0 mm...
Description of Main Components 2.8.1 Carriage The carriage is provided with 4-wheel drive. The carriage can be secured by way of the locking lever (1). 2.8.2 Carrier The control box, wire feed unit and flux hopper, among other things, are to be fitted on the carrier. 2.8.3 Wire Feed Unit / Wire Feed Unit with four-wheel Drive The unit is used for guiding and feeding the welding wire down into the contact...
INSTALLATION General The installation must be executed by a professional. WARNING Rotating parts can cause injury, take great care. Mounting 3.2.1 Wire drum (Accessories) Wire drum (1) is mounted on the brake hub (2). WARNING To prevent the reel sliding off the hub: Lock the reel in place by turning the red knob as shown on the warning label attached next to the hub.
Connections 3.4.1 General The PEK is to be connected by a qualified person. See instruction manual 0460 948 xxx, 0460 949 xxx, 0459 839 036. For the connection of welding power source LAF/ TAF, see separate instruction manual. 3.4.2 Automatic welding machine A2TF J1/ A2TF J1 Twin (Submerged arc welding, SAW) 1.
Page 14
3.4.3 Automatic welding machine A2TG J1 (Gas metal arc welding, MIG/MAG) 1. Connect the control cable (7) between the power source (8) and control box PEK (2). 2. Connect the return cable (11) between the power source (8) and work piece (9). 3.
Page 15
3.4.4 Automatic welding machine A2TG J1 4WD (Gas metal arc welding, MIG/MAG) 1. Connect the control cable (7) between the welding power source (8) and the PEK (2). 2. Connect the return cable (11) between the welding power source (8) and the work piece (9).
OPERATION General WARNING: Have you read and understood the safety information ? You must not operate the machine before then ! General safety regulations for the handling of the equipment can be found on page 5. Read through before you start using the equipment! Before welding start, check that the return cable is connected.
Loading the welding wire (A2TF J1/ A2TF J1 Twin, A2TG J1) A2TF J1 (SAW) A2TF J1 Twin (SAW) A2TG J1 (MIG/MAG) 1. Mount the wire drum according to the instructions on page 12. 2. Check that feed roller (1) and contact jaw or contact tip (3) are of the correct dimension for the selected wire size.
Loading the welding wire (A2TG J1 4WD) 1. Check that the feed rollers (1, 4) and the contact nozzle (7) are of the correct dimension for the wire size selected. NOTE! The feed rollers are marked with their respective groove diameter (D) on the opposite side of the roller.
Changing the feed roller (A2TF J1/A2TF J1 Twin, A2TG J1) Single wire Release the knobs (3) and (4). Release the hand wheel (2). Change the feed roller (1). They are marked with their respective wire sizes. Twin wire (Twin-arc) Change the feed roller (1) with twin grooves in the same way as for single wire. NOTE! The pressure roller (5) must also be changed.
Contact equipment for Submerged arc welding 4.6.1 For single wire 1.6 - 4.0 mm. Light duty (D20) Use automatic welding machine A2TF J1 (SAW) where the following are included: Wire feed unit (1), Connector D20 (2) Contact tip (3) (M12 thread). Tighten the contact tip (3) with a key in order to ensure that a good contact is achieved.
Contact equipment for MIG/MAG welding 4.7.1 For single wire 1.6 - 2.5 mm (D35) Use automatic welding machine A2TG J1 (MIG/MAG) where the following are included: Wire feed unit (1), Connector D35 (2) Contact tip (3) (M10 thread). Tighten the contact tip (3) with a key in order to ensure that a good contact is achieved.
4.7.3 For single wire 1.0 - 2.4 mm (wire feed unit with four-wheel drive) Use automatic welding machine A2TG J1 4WD (MIG/MAG) where the following are included: Wire feed unit (5), Contact device D35 (6) Tighten the contact device (6) using the Allen screw (8).
Transportation of the Automatic Welding Machine Disengage the wheels by turning the locking lever (1). Make sure the safety chain (2) is properly fastened; this to prevent an accident happening, if for example the carrier is not adequately locked to the foot clamp of the carriage.
MAINTENANCE General Note: All warranty undertakings given by the supplier cease to apply if the customer attempts to rectify any faults on the machine during the warranty period. NB! Before doing any kind of maintenance work, make sure the mains is disconnected.
Use cables with a larger cross-section or use parallel cables. ORDERING OF SPARE PARTS Spare parts are ordered through your nearest ESAB representative, see back cover. When ordering spare parts, please state machine type and number as well as desig- nation and spare part number as shown in the spare parts list on page 29.
DIMENSION DRAWING A2TF J1/ A2TF J1 Twin Recommended adjusting Measure Butt joint Fillet joint 165 mm 165 mm 668 mm 668 mm 455 mm 455 mm - 26 - dimdoc...
Page 27
A2TG J1/ A2TG J1 4WD Recommended adjusting Measure Butt joint Fillet joint 165 mm 165 mm 668 mm 668 mm 455 mm 455 mm - 27 - dimdoc...
