WCM/WCMD/WCMDC/WCML/WCMDL/WCMDCL
& WCMHP SERIES
Service and Installation Manual
Please read this manual completely before attempting to install or operate this equipment!
Notify carrier of damage! Inspect all components immediately. See page 2.
DROP-IN COLD PAN
REFRIGERATED STANDARD DEPTH,
FULL DEPTH, SIDE COILS & SLIM-LINE
SELF CONTAINED OR REMOTE
DROP-IN HOT/COLD PAN
DUAL SERVICE HOT OR COLD
(HOT MODE-WATER MUST BE USED)
Effective Date: 2019
IMPORTANT INFORMATION
READ BEFORE USE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Metal WCMDC Series
Summary of Contents for Atlas Metal WCMDC Series

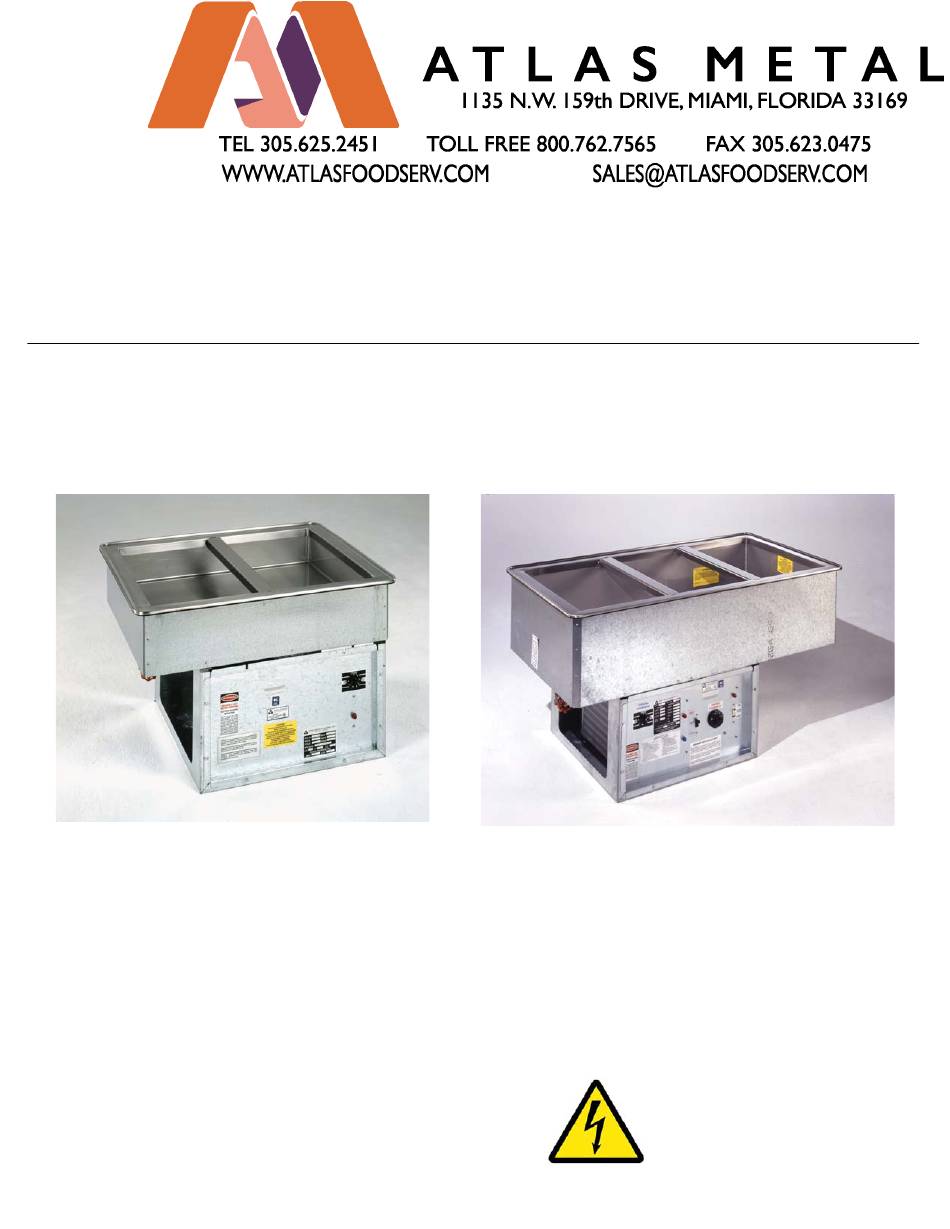

- Page 1 WCM/WCMD/WCMDC/WCML/WCMDL/WCMDCL & WCMHP SERIES Service and Installation Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 2. DROP-IN COLD PAN DROP-IN HOT/COLD PAN REFRIGERATED STANDARD DEPTH, DUAL SERVICE HOT OR COLD FULL DEPTH, SIDE COILS &...
-
Page 2: Table Of Contents
CONTENTS RECEIVING & INSPECTING EQUIPMENT....................................1 SERIAL AND MODEL # LOCATION......................................1 WCM SPECIFICATIONS, FEATURES ACCESSORIES................................2 ELECTRICAL CHARACTERISTICS AND CUT-OUT REQUIREMEMENTS......................3 INSTALLATION, OPERATION AND S/S MAINTENANCE............................4 PARTS LIST............................................5 WCM-HP SPECIFICATIONS FEATURES AND ACCESSORIES..............................6 ELECTRICAL CHARACTERISTICS AND CUT-OUT REQUIRMENTS........................7 INSTALLATION, OPERATION AND S/S MAINTENANCE............................8 PARTS LIST............................................9 AUTOMATIC WATER FILL INSTALLATION, OPERATION &... -
Page 3: Wcm Specifications, Features Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ DROP-IN SERVING EQUIPMENT WCM-1 COLD PAN WCM-2 WCM-3 Refrigerated WCM-4 4-5/8” Standard Depth WCM-5 Self-Contained WCM-6 WCM-2 SPECIFICATIONS STANDARD FEATURES Fully insulated for maximum efficiency and energy TOP: Constructed of 18 gauge, type 304 stainless steel, die stamped with a raised perimeter bead. -
Page 4: Electrical Characteristics And Cut-Out Requiremements
Thermostat, Cap Tube & Drier (for hook up in field 2029-17JP - 1/4 HP for WCMX-4 by others) 2029-27JL - 1/3 HP for WCMX-5 & 6 Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com... -
Page 5: Installation, Operation And S/S Maintenance
MECHANICAL COLD PANS WCM/WCMD/WCMDC/WCML/WCMDL & WCMDCL SERIES ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- INSTALLATION Provide the correct counter cut-out opening (see chart below) and drop in. The vinyl gasket assures complete seating. A non-toxic silicone seal may be used between the gasket and counter top (not required). Note: Units are supplied with a nipple and stop valve to be connected for draining. -
Page 6: Parts List
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com PARTS LIST FOR MECHANICAL COLD PANS WCM/WCMD/WCMDC/WCML/WCMDL & WCMDCL SERIES WCM-4 SHOWN PART NUMBER DESCRIPTION ITEM NUMBER S80103-0 Separator Channel (WCM &... -
Page 7: Wcm-Hp Specifications Features And Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ DROP-IN SERVING EQUIPMENT HOT/COLD PAN WCM-HP-2 WCM-HP-3 Dual Temp. WCM-HP-4 Hot or Cold Service WCM-HP-5 (For Hot Mode) WCM-HP-6 Water Must Be Used WCM-HP-3 SPECIFICATIONS STANDARD FEATURES g Dual Temp. - a hot serving unit becomes a refrigerated cold TOP: Constructed of 18 gauge, type 304 stainless steel, die stamped with a raised perimeter bead. -
Page 8: Plan View
2029-17JP - 1/4 HP for WCM-HPX-4 field by others) 2029-27JB - 1/3 HP for WCM-HPX-5 & 6 RSHP - Remote Control Panel is required to operate unit. Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com... -
Page 9: Installation, Operation And S/S Maintenance
HOT OR REFRIGERATED COLD PAN WCM-HP SERIES ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- INSTALLATION Provide the correct counter cut-out opening (see chart below, a 1” radius is required for each corner) and drop in. The vinyl gasket assures complete seating. A non-toxic silicone seal may be used between the gasket and counter top (not required). -
Page 10: Parts List
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com PARTS LIST HOT OR COLD COMBINATION UNIT WCM-HP SERIES W C M -H P-4 SH O W N ITEM PART ITEM... -
Page 11: Cut-Out Size
T OR REFRIGERATED COLD PAN WCM-HP SERIES ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- INSTALLATION Provide the correct counter cut-out opening (see chart below, a 1” radius is required for each corner) and drop in. The vinyl gasket assures complete seating. A non-toxic silicone seal may be used between the gasket and counter top (not required). -
Page 12: Automatic Water Fill Installation, Operation & Parts List
*Note‐Atlas Metal Ind. Inc. is not responsible for routine maintenance of the strainer or customer supplied water filter system. *Atlas Metal Industries Inc. recommends that all units installed to a water source use our Autofill or any backflow protection of your choice. Please refer to your local code. Any attempt to change or modify the Auto Fill system will void the warranty. OPERATION HEATING CYCLE HEATING TO COOLING 1. Turn master switch to “OFF” position. ... - Page 13 AUTOMATIC WATER FILL U NITS *Note ‐ Factory water depth settings for A/F units are 3/8" from the bottom of the liner and f or WCM‐HP and RM‐HP, water depth should be 4” from the bottom of the liner. DO NOT manually add water to Auto‐fill units above water level mark, damage and leakage to the Automatic sensor could result. As the water evaporates the pans will fill automatically. If the orange warning light turns on, please turn off the unit and check that the autofill is working properly. It is recommended that the Auto Fill be in the off position when not in use. ...
-
Page 14: Trouble Shooting Guide
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com Refrigerated Drop-In Trouble Shooting Guide Symptom Probable Cause Unit not plugged in. No power at receptacle. Unit will not run Thermostat and or switch not in the on position. -
Page 15: Electrical & Refrigeration Chart
ELECTRICAL & REFRIGERATION CHART Low High BTU@ Model Volts Amps. Watts HP Ref. psig. psig. M10 90A WCM-1 134A WCM-2 134A WCM-3 134A WCM-4 134A 1070 WCM-5 134A 1285 WCM-6 134A 1285 WCMC-1 134A WCMC-2 134A WCMC-3 134A WCMC-4 134A 1070 WCMC-5 134A... - Page 16 REVISION HISTORY DATE: SIZE: CUSTOMER: DESCRIPTION DATE 09.18.09 WCM-WCMD-WCML-WCMDL-WDF-WDFL I . A DRAWN BY: REFERENCE: 120VOLTS (1) PHASE ELECTRICAL SCHEMATIC CHECKED BY: P.O. #: ------ DRAWING No. SCALE: 3/4" = 1'-0" I ., ----- 1135 NW 159TH DRIVE MIAMI, FLORIDA 33169 SHEET No.
-
Page 17: Electrical Schematics
REVISION HISTORY DATE: SIZE: CUSTOMER: DESCRIPTION DATE 12.01.09 ELECTRICAL SCHEMATIC I . A DRAWN BY: REFERENCE: WCM-HP 2-3-----120/120V CHECKED BY: P.O. #: ------ DRAWING No. SCALE: 3/4" = 1'-0" I ., ----- 1135 NW 159TH DRIVE MIAMI, FLORIDA 33169 SHEET No. JOB #: ------... - Page 18 REVISION HISTORY DATE: SIZE: CUSTOMER: DESCRIPTION DATE 12.01.09 ELECTRICAL SCHEMATIC I . A DRAWN BY: REFERENCE: WCM-HP 4-5-6--120/208/240V CHECKED BY: P.O. #: ------ DRAWING No. SCALE: 3/4" = 1'-0" I ., ----- 1135 NW 159TH DRIVE MIAMI, FLORIDA 33169 SHEET No. JOB #: ------...
-
Page 19: Limited Warranty
(18) months after date of shipment from factory. During this period of time Atlas Metal Industries, Inc. will replace all defective parts and will pay for authorized replacement labor. Replacement and installation of such parts and labor shall be provided only upon prior written authority of Atlas Metal Industries, Inc. -
Page 20: Warranty Information
An authorization number must be obtained from the factory prior to performing any warranty service. _______________________________________________ Atlas Metal will not approve excessive labor due to poor access to the unit being serviced. If design does not allow reasonable access, contact the factory. _______________________________________________ All travel time that exceeds 100 miles round trip must be authorized by the factory.
