CAH SERIES

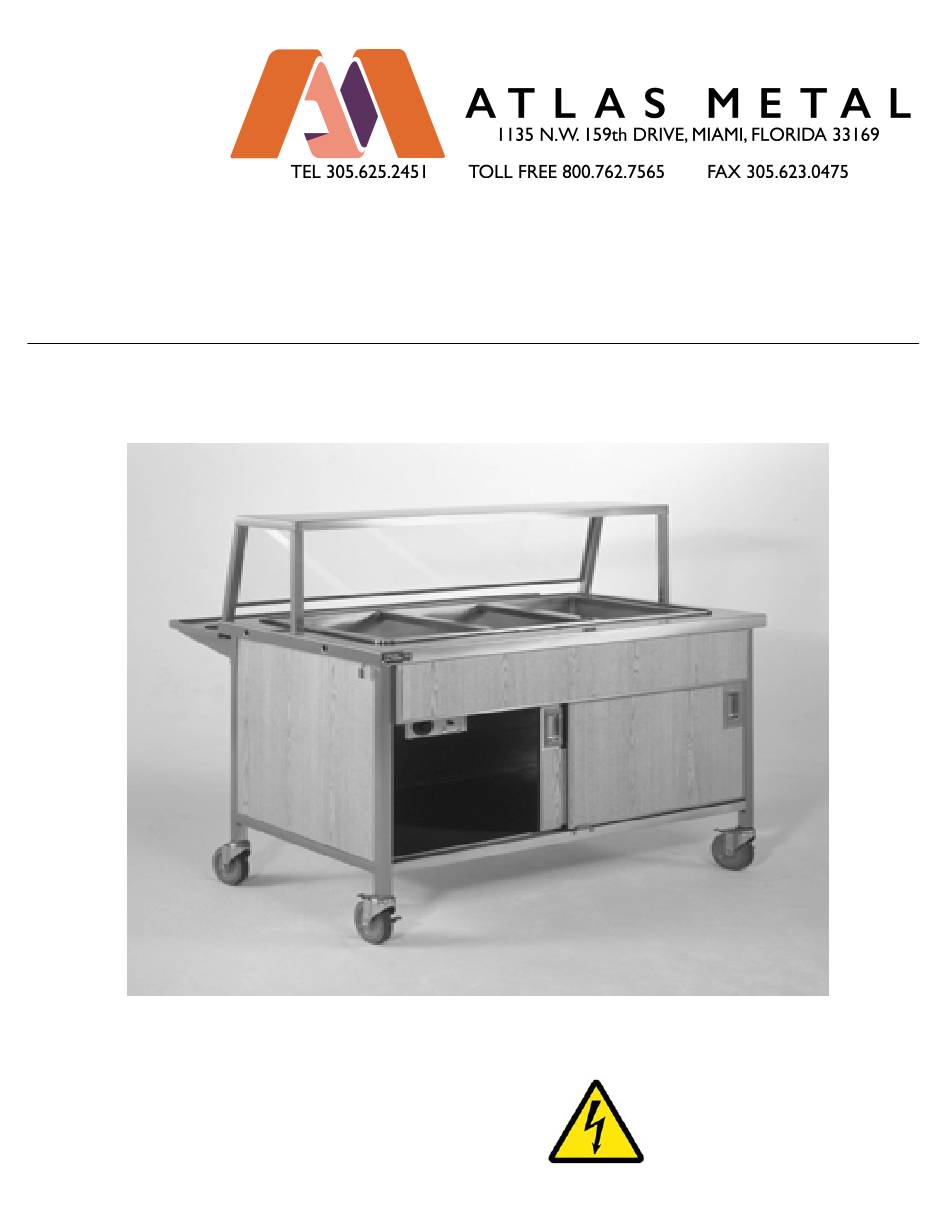

Service and Installation Manual
Please read this manual completely before attempting to install or operate this equipment!
Notify carrier of damage! Inspect all components immediately. See page 1.
Effective Date: 2023
IMPORTANT INFORMATION
READ BEFORE USE
Specifications subject to change without notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Metal CAH Series
Summary of Contents for Atlas Metal CAH Series
- Page 1 CAH SERIES Service and Installation Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 1. Effective Date: 2023 IMPORTANT INFORMATION READ BEFORE USE Specifications subject to change without notice.
- Page 2 CONTENTS RECEIVING & INSPECTING EQUIPMENT………………………………………………………………………..………..1 SERIAL AND MODEL# LOCATION…………………………………………………………………………………………..1 CAH SPECIFICATIONS, FEATURES, AND ACCESSORIES……….…………………………………………………….2 ELECTRICAL CHARACTERISTICS AND CUT OUT REQUIREMENTS………………………………………3 WH SPECIFICATIONS, FEATURES, AND ACCESSORIES……….……………………………………………………..4 ELECTRICAL CHARACTERISTICS AND CUT OUT REQUIREMENTS………………………………….…..5 INSTALLATION, OPERATION AND S/S MAINTENANCE…………………………………………………………….…..6 REMOTE CONTROL INSTALLATION.………………………………………………………………………………………7 PART LISTS………………………………………………………………………………………………………………….…8 AUTOMATIC WATER FILL INSTALLATION, OPERATION &...
- Page 3 Project: ___________ Item No.: ___________ Quantity: ___________ MODULAR UNITS CA SERIES CAH-2 HOT FOOD UNIT CAH-3 Electrically Heated CAH-4 CAH-5 Single Control CAH-6 CAH-4 SHOWN WITH ACCESSORIES SPECIFICATIONS ACCESSORIES TOP: Constructed of 16 gauge, type 304 stainless steel, die-formed, g SL - Tray Slide, 11-1/4” wide, S/S, 2-rail, fold-down welded, ground and polished.
- Page 4 208V - 5.1KW - 24.5 850WATT CAH-6 L6-30P 240V - 5.1KW - 21.3 6-50P 208V - 6.0KW - 28.8 1000WATT 6-50P 240V - 6.0KW - 25.0 Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com CA-6 02/20-sc...
- Page 5 Project: ___________ Item No.: ___________ Quantity: ___________ DROP-IN SERVING EQUIPMENT WH-2 HOT PAN WH-3 Electrically Heated WH-4 WH-5 Single Control WH-6 WH-3 SPECIFICATIONS STANDARD FEATURES TOP: Constructed of 18 gauge, type 304 stainless steel, die Fully insulated to retain heat - protects fixtures and stamped flange with a raised perimeter bead.
- Page 6 208V - 5.1KW - 24.5 850WATT WH-6 L6-30P 240V - 5.1KW - 21.3 6-50P 208V - 6.0KW - 28.8 1000WATT 6-50P 240V - 6.0KW - 25.0 Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com DI-2 2/20-sc...
-
Page 7: Installation
ELECTRICAL HEATED UNITS WH/ WIH/ WIHD/ WIHD&M/ WIHL AND WIH 1-6 SERIES -------------------------------------------------------------------------------------------------------------------------------- -------------------------- INSTALLATION Provide the correct counter cut-out opening (see chart below) and drop in. The vinyl gasket assures complete seating. A non-toxic silicone seal may be used between the gasket and counter top (not required). - Page 8 Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com WIH-REMOTE INSTALLATION WH/WIH STANDARD INSTALLATION PANEL WITH CUT-OUT STUDS 3 1 8 " GALVANIZED BOX SCREW 4 1 4 " 3 1 4 "...
- Page 9 Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com PARTS LIST ELECTRICAL HEATED UNITS W/AUTOMATIC WATER FILL WH/ WIHD&M/ WIHLD&M- /WIHD&M- 1-6 SERIES ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER...
-
Page 10: Operation
Failure to do so may result in warranty denial. It is recommended the customer supply a primary water filtering system for protection. *Note‐Atlas Metal Ind. Inc. is not responsible for routine maintenance of the strainer or customer supplied water filter system. *Atlas Metal Industries Inc. recommends that all units installed to a water source use our Autofill or any backflow protection of your choice. Please refer to your local code. Any attempt to change or modify the Auto Fill system will void the warranty. OPERATION ... - Page 11 Note - Atlas Metal highly recommend the installation of a water filtration kit or “whole house” water filtration system to ensure warranty coverage. Atlas Metal Industries, Inc. is not responsible for routine maintenance of the strainer, or the customer supplied water filter system.
- Page 12 Do not remove or relocate the water reservoir. Failure to do so may result in warranty denial. Note - Atlas Metal Industries, Inc. is not responsible for routine maintenance of the strainer or the customer supplied water filter system.
- Page 13 Note - Atlas Metal Industries, Inc. is not responsible for routine maintenance of the strainer or the customer supplied water filter system. Revised 10.21...
- Page 14 Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com Electric Hot Food Drop-In Trouble Shooting Guide Symptom Probable Cause Unit not plugged in. No power at receptacle. Unit will not heat Thermostat and or switch not in the on position.
- Page 15 REVISION HISTORY DESCRIPTION DATE 2/16/2012 CHANGE LABLES 1,000 OR 1,000 OR 850 WATTS 850 WATTS ELEMENT ELEMENT 12 AWG GROUND TO THE CONTROL CASE 12 AWG POWER CORD MATERIAL: CATEGORY: DRAWN BY: DATE: L.AND 11/30/2010 TOLERANCES 1135 NW 159TH DRIVE MIAMI, FLORIDA 33169 ---- CHECKED BY: ELECTRICAL SCHEMATIC...
- Page 16 REVISION HISTORY DESCRIPTION DATE 2/16/2012 CHANGE LABLES 1,000 OR 1,000 OR 850 WATTS 850 WATTS ELEMENT ELEMENT 12 AWG GROUND TO THE CONTROL CASE 12 AWG POWER CORD MATERIAL: CATEGORY: DRAWN BY: DATE: L.AND 11/30/2010 TOLERANCES 1135 NW 159TH DRIVE MIAMI, FLORIDA 33169 ---- CHECKED BY: ELECTRICAL SCHEMATIC...
-
Page 17: Limited Warranty
(18) months after date of shipment from factory. During this period of time Atlas Metal Industries, Inc. will replace all defective parts and will pay for authorized replacement labor. Replacement and installation of such parts and labor shall be provided only upon prior written authority of Atlas Metal Industries, Inc. -
Page 18: Warranty Information
An authorization number must be obtained from the factory prior to performing any warranty service. _______________________________________________ Atlas Metal will not approve excessive labor due to poor access to the unit being serviced. If design does not allow reasonable access, contact the factory. _______________________________________________ All travel time that exceeds 100 miles round trip must be authorized by the factory.
