Summary of Contents for Atlas Metal WIH-17

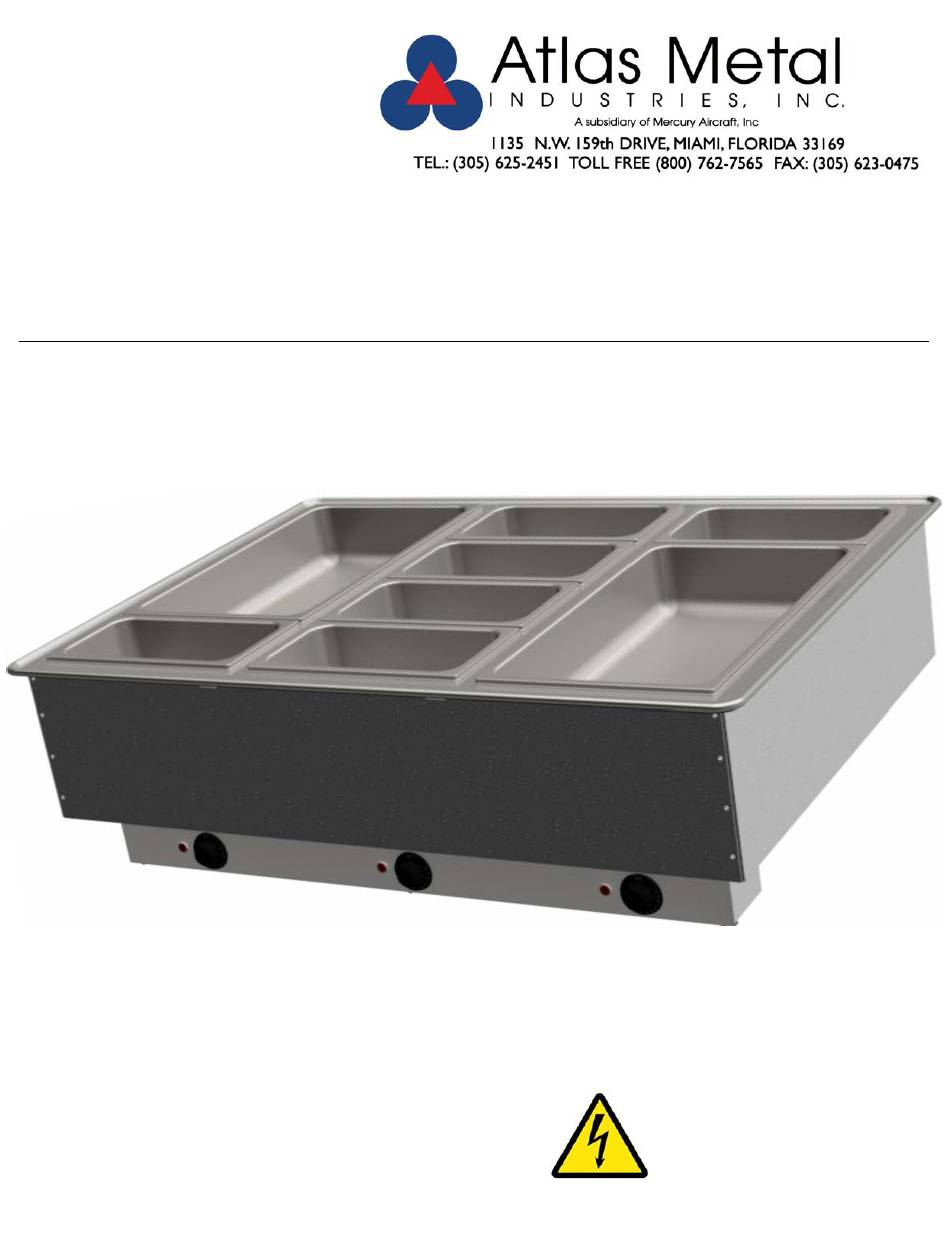

- Page 1 WIH 17-67 SERIES Service and Installation Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 1. WIH-37 Effective Date: 2018 IMPORTANT INFORMATION READ BEFORE USE...
-
Page 2: Table Of Contents
CONTENTS RECEIVING & INSPECTING EQUIPMENT....................................1 SERIAL AND MODEL NUMBER LOCATION....................................1 SPECIFICATIONS, FEATURES AND ACCESSORIES..................................2-3 INSTALLATION, OPERATION AND S/S MAINTENANCE................................4 ELECTRICAL CHARACTERISTICS AND CUT-OUT REQUIREMEMENTS..........................5 REMOTE CONTROL INSTALLATION......................................5 PARTS LIST................................................6 AUTOMATIC WATER FILL INSTALLATION, OPERATION & PARTS DIAGRAM........................7 TROUBLE SHOOTING GUIDE..........................................8 ELECTRICAL SCHEMATICS..........................................9 LIMITED WARRANTY............................................10 WARRANTY INFORMATION..........................................11... -
Page 3: Specifications, Features And Accessories
1/4" radius. Each well is provided Wet operation only with an 850 watt heating element (1000 watt on the WIH-17). 1-Year Parts & Labor Warranty UL Listed INSULATION: The pan is fully insulated with high density fiberglass, 1"... - Page 4 2-1/2” 2-3/4” ELEVATION END VIEW Electrical Characteristics VOLTAGE/KW/AMPS NEMA # MODEL WATTAGE PLUG 120V - 1.0KW - 8.3 5-15P WIH-17 1000WATT 208V - 1.0KW - 4.8 6-15P 240V - 1.0KW - 4.2 6-15P COUNTER CONTROL CUT-OUT PANEL SHIP WT. 120V - 1.7KW - 14.2...
-
Page 5: Installation, Operation And S/S Maintenance
WIH 17-67 SERIES ---------------------------------------------------------------------------------------------------------------------------------------------------------- INSTALLATION Provide the correct counter cut-out opening and drop in. The vinyl gasket assures complete seating. A non- toxic silicone seal may be used between the gasket and counter top (not required). The unit is supplied with a power cord and NEMA plug. -
Page 6: Electrical Characteristics And Cut-Out Requiremements
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com WIHD 17-67 LARGE SERIES INSTALLATION WIH-REMOTE INSTALLATION PANEL WITH CUT-OUT STUDS 3 1 8 " GALVANIZED BOX SCREW 4 1 4 "... -
Page 7: Parts List
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com PARTS LIST ELECTRICAL HEATED UNITS W/AUTOMATIC WATER FILL WH/ WIHD&M/ WIHLD&M- /WIHD&M- 17-67 SERIES ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER... -
Page 8: Automatic Water Fill Installation, Operation & Parts Diagram
*Note-Atlas Metal Ind. Inc. is not responsible for routine maintenance of the strainer or customer supplied water filter system. *Atlas Metal Industries Inc. recommends that all units installed to a water source use our Autofill or any backflow protection of your choice. Please refer to your local code. -
Page 9: Trouble Shooting Guide
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com Electric Hot Food Drop-In Trouble Shooting Guide Symptom Probable Cause Unit not plugged in. No power at receptacle. Unit will not heat Thermostat and or switch not in the on position. -
Page 10: Electrical Schematics
TWO (2) HEATED WELLS SHOWN. QUANTITY OF HEATED WELLS CAN BE FROM TWO (2) TO SIX (6). -
Page 11: Limited Warranty
(18) months after date of shipment from factory. During this period of time Atlas Metal Industries, Inc. will replace all defective parts and will pay for authorized replacement labor. Replacement and installation of such parts and labor shall be provided only upon prior written authority of Atlas Metal Industries, Inc. -
Page 12: Warranty Information
An authorization number must be obtained from the factory prior to performing any warranty service. _______________________________________________ Atlas Metal will not approve excessive labor due to poor access to the unit being serviced. If design does not allow reasonable access, contact the factory. _______________________________________________ All travel time that exceeds 100 miles round trip must be authorized by the factory.
