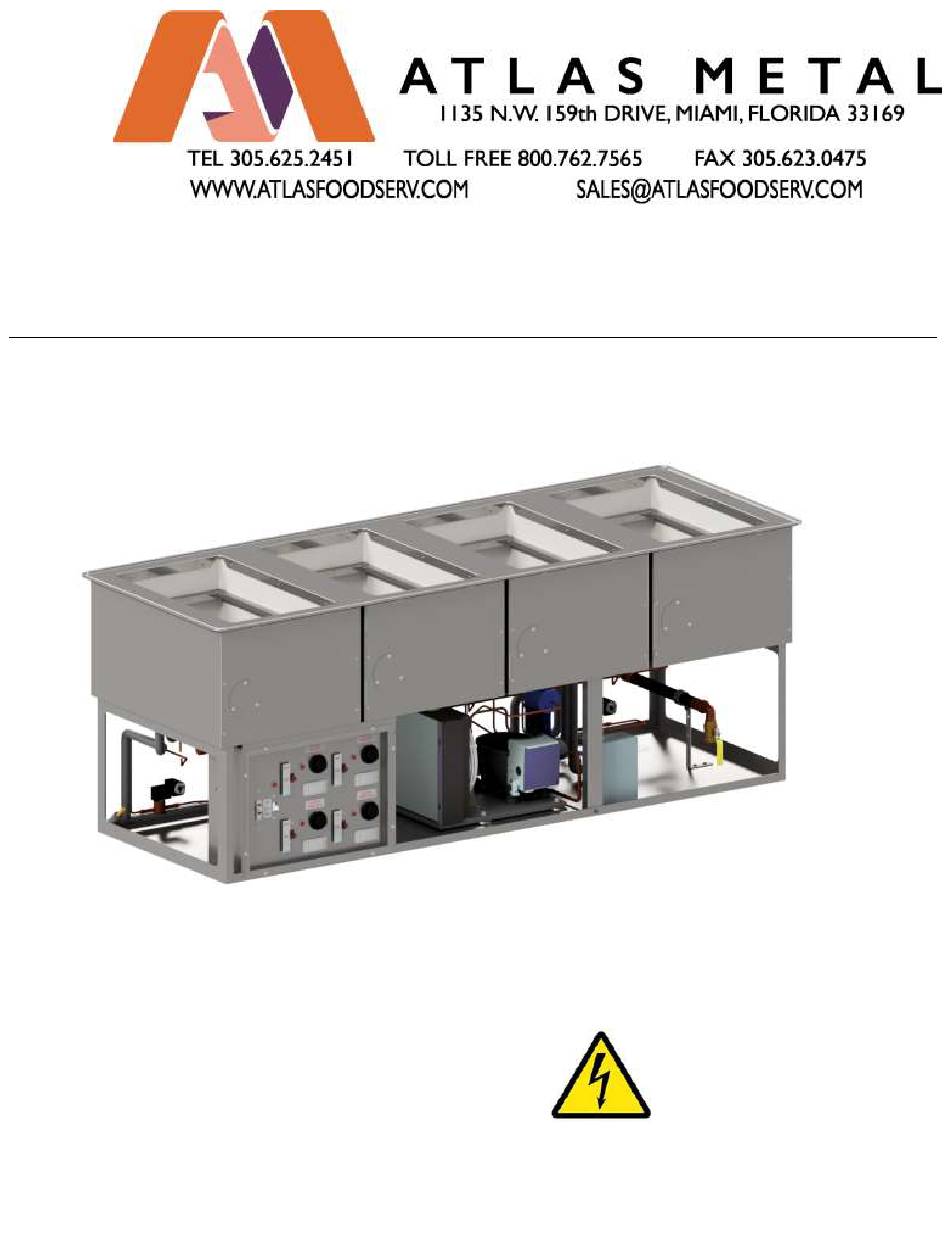

HOT/COLD PAN - WQHC SERIES
Service and Installation Manual
Please read this manual completely before attempting to install or operate this equipment!
Notify carrier of damage! Inspect all components immediately. See page 1.
DROP-IN HOT/COLD PAN (3"
RECESSED TOP) DUAL TEMP.
HOT OR COLD SERVICE
Effective Date: 2021
IMPORTANT INFORMATION
READ BEFORE USE
Advertisement
Related Manuals for Atlas Metal WQHC Series
Summary of Contents for Atlas Metal WQHC Series
- Page 1 HOT/COLD PAN - WQHC SERIES Service and Installation Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 1. DROP-IN HOT/COLD PAN (3" RECESSED TOP) DUAL TEMP.
-
Page 2: Table Of Contents
CONTENTS RECEIVING & INSPECTING EQUIPMENT....................................1 SERIAL AND MODEL # LOCATION......................................1 WQHC SPECIFICATIONS, FEATURES AND ACCESSORIES..............................2 OVERALL DIMENSIONS, ELECTRICAL CHARACTERISTICS AND CUT-OUT REQUIREMEMENTS................3 PARTS LIST................................................4 INSTALLATION, OPERATION AND S/S MAINTENANCE..............................5,6 ELECTRICAL SCHEMATICS......................................7,8,9,10,11 LIMITED WARRANTY............................................12 WARRANTY INFORMATION.........................................13 RECEIVING AND INSPECTING THE EQUIPMENT 1. -
Page 3: Wqhc Specifications, Features And Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ DROP-IN SERVING EQUIPMENT HOT/COLD PAN WQHC-2 WQHC-3 (3” Recessed Top) WQHC-4 Dual Temp. Hot or Cold Service WQHC-4 SPECIFICATIONS STANDARD FEATURES TOP: Constructed of 18 gauge, type 304 stainless steel, die stamped with a raised perimeter bead. There shall be a solid vinyl gasket g Dual Temp:- each pan is individually controlled. -
Page 4: Overall Dimensions, Electrical Characteristics And Cut-Out Requiremements
24-3/4 X 36-1/8” 35-7/8” (62.86 X 91.75 cm) (91.12cm) 24-3/4” X 54-1/4” 54-1/4” (62.86 X 137.79cm) (137.79cm) 24-3/4” X 72-3/8” 72-1/2” (62.86 X 183.83cm) (184.15cm) Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com DI-59 7/23-sc... -
Page 5: Parts List
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com PARTS LIST HOT OR COLD COMBINATION UNIT WQHC SERIES ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER NUMBER NUMBER... -
Page 6: Installation, Operation And S/S Maintenance
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------- INSTALLATION Provide the correct counter cut-out opening (see chart below), and drop in. The vinyl gasket assures complete seating. A non-toxic silicone seal may be used between the gasket and countertop (not required). Note: Units are supplied with a nipple and stop valve to be connected for draining. “Wastewater connections are to conform to the International Plumbing Code 2003, International Code Council (ICC) or the Uniform Plumbing Code 2003, International Association of Plumbing and Mechanical Officials (IAPMO)”, or the equivalent. - Page 7 -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- MAINTENANCE NEVER CLEAN PANS WITH A CHLORIDE BASED PRODUCT. CHLORIDES OR IMPROPER CLEANING COULD SCAR, MARK AND/OR CORRODE PANS. DO NOT USE STEEL WOOL OR ABRASIVE PRODUCTS. TO CLEAN USE SOAPY WARM WATER, RINSE THOROUGHLY TO REMOVE ALL RESIDUES. CLEAN CONDENSER COIL REGULARLY.
- Page 8 HEAT ELEMENT-1 LIMIT CONTROL-1 SOLENOID VALVE-1 HEAT ELEMENT-2 LIMIT CONTROL-2 SOLENOID VALVE-2 120V 120V RELAY-1 RELAY-2 120V RED 120V RED THERMOSTAT (BLACK) THERMOSTAT (BLACK) HEAT HEAT THERMOSTAT-1 THERMOSTAT-2 ELEC REFR ELEC REFR CONTROL-1 CONTROL-2 10 11 13 14 15 16 10 11 13 14 15 16...
- Page 9 HEAT ELEMENT-1 LIMIT CONTROL-1 SOLENOID VALVE-1 HEAT ELEMENT-2 LIMIT CONTROL-2 SOLENOID VALVE-2 208 or 240V 208 or 240V RELAY-1 RELAY-2 120V RED 120V RED THERMOSTAT (BLACK) THERMOSTAT (BLACK) HEAT HEAT THERMOSTAT-1 THERMOSTAT-2 ELEC REFR ELEC REFR CONTROL-1 CONTROL-2 10 11 13 14 15 16 10 11...
- Page 10 HEAT ELEMENT-1 LIMIT CONTROL-1 SOLENOID VALVE-1 HEAT ELEMENT-2 LIMIT CONTROL-2 SOLENOID VALVE-2 HEAT ELEMENT-3 LIMIT CONTROL-3 SOLENOID VALVE-3 120V 120V 120V RELAY-1 RELAY-2 RELAY-3 120V RED 120V RED 120V RED THERMOSTAT (BLACK) THERMOSTAT (BLACK) THERMOSTAT (BLACK) HEAT HEAT HEAT THERMOSTAT-1 THERMOSTAT-2 THERMOSTAT-3 ELEC REFR...
- Page 11 HEAT ELEMENT-1 LIMIT CONTROL-1 SOLENOID VALVE-1 HEAT ELEMENT-2 LIMIT CONTROL-2 SOLENOID VALVE-2 HEAT ELEMENT-3 LIMIT CONTROL-3 SOLENOID VALVE-3 208 or 240V 208 or 240V 208 or 240V RELAY-1 RELAY-2 RELAY-3 120V RED 120V RED 120V RED THERMOSTAT (BLACK) THERMOSTAT (BLACK) THERMOSTAT (BLACK) HEAT HEAT...
- Page 12 HEAT ELEMENT-1 LIMIT CONTROL-1 SOLENOID VALVE-1 HEAT ELEMENT-2 LIMIT CONTROL-2 SOLENOID VALVE-2 HEAT ELEMENT-3 LIMIT CONTROL-3 SOLENOID VALVE-3 HEAT ELEMENT-4 LIMIT CONTROL-4 SOLENOID VALVE-4 208 or 240V 208 or 240V 208 or 240V 208 or 240V RELAY-1 RELAY-2 RELAY-3 RELAY-4 120V RED 120V RED 120V RED...
-
Page 13: Limited Warranty
(18) months after date of shipment from factory. During this period of time Atlas Metal Industries, Inc. will replace all defective parts and will pay for authorized replacement labor. Replacement and installation of such parts and labor shall be provided only upon prior written authority of Atlas Metal Industries, Inc. -
Page 14: Warranty Information
An authorization number must be obtained from the factory prior to performing any warranty service. Atlas Metal will not approve excessive labor due to poor access to the unit being serviced. If design does not allow reasonable access, contact the factory.
