Summary of Contents for Atlas Metal WCPT-3

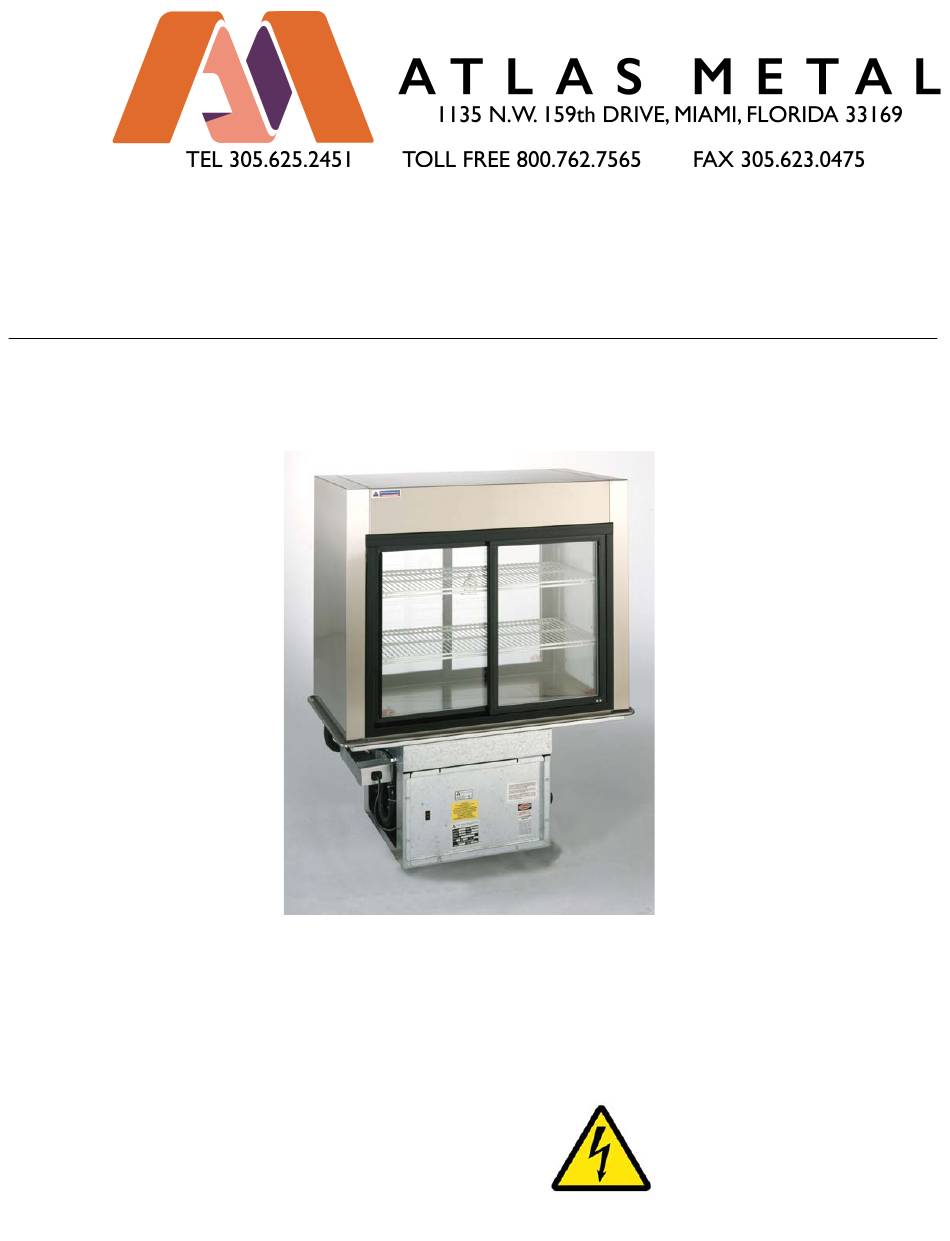

- Page 1 WCPT-3 and WCPT-4 Service and Installation Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 1. Drop-in Display Cases Effective Date: 2023 IMPORTANT INFORMATION READ BEFORE USE...
-
Page 2: Table Of Contents
CONTENT RECEIVING & INSPECTING EQUIPMENT………………………………………………………………………..…1 SERIAL AND MODEL# LOCATION……………………………………………………………………………………1 SPECIFICATIONS FEATURES AND ACCESSORIES………………………………………………………………2 ELECTRICAL CHARACTERISTICS AND CUT-OUT REQUIREMENTS………………………………………….3 THERMOSTAT SETTINGS, ELECTRICAL & REFRIGERATION CHART……………………………….....4 INSTALLATION, OPERATION AND S/S MAINTENANCE……………..…………………………………………...5 SLIDING DOOR MAINTENANCE, SLIDING DOOR REMOVAL & REINSTALL………….........6 SHELF INSTALLATION, IMPORTANT OPERATION & PRESSURE CONTROL SETTINGS….……………….7 PARTS LIST……………………………………………………………………..………………………………………..8 TROUBLE SHOOTING GUIDE…………………………………………………………………………………….…...9 ELECTRICAL SCHEMATICS………………………………………………………………………………………….10... -
Page 3: Specifications Features And Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ DROP-IN SERVING EQUIPMENT DISPLAY CASE WCPT-3 Refrigerated, WCPT-4 Pass-Through Self-Contained SPECIFICATIONS STANDARD FEATURES g Large, lighted display area with adjustable shelves - it’s the TOP: Constructed of 18 gauge, type 304 stainless steel, die stamped with a raised perimeter bead. -
Page 4: Electrical Characteristics And Cut-Out Requirements
SOLENOID VALVE, SOLENOID COIL & COOPER FITTING SOLENOID PACKAGE, FACTORY INSTALLED: SOLENOID BOX, SOLE- NOID VALVE, COIL & COOPER FITTING ****ORDERS NOT FINAL UNTIL REFRIGERANT APPROVED**** Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com DI-40 11/23-sc... -
Page 5: Thermostat Settings, Electrical & Refrigeration Chart
WCPT-3 & WCPT-4 ELECTRONIC THERMOSTAT SETTINGS UNIT S1(DEG.F) DIFF.(DEG.F) WCPT-3 WCPT-4 ELECTRICAL & REFRIGERATION CHART HIGH MODEL VOLTS AMPS WATTS PSIG WCPT-3 120V 513A 5260 WCPT-4 120V 513A 5260... -
Page 7: Sliding Door Maintenance, Sliding Door Removal & Reinstall
SLIDING DOOR MAINTENANCE ATLAS WCPT DISPLA Y CASES ARE PROVIDED WITH EASY REMOVABLE SLIDING DOORS. CLEANING OF THE DOOR GASKETS AND DOOR FRAME TRACKS WITH MILD SOAP AND WATER WILL INSURE SLIDING DOOR ASSEMBLY TO OPERATE PROPERLY. CAUTION - NEVER USE FULL STRENGTH CLEANING PRODUCTS ON GASKETS AS THIS WILL CAUSE THEM TO BECOME BRITTLE AND CRACK VOIDING YOUR WARRANTIES. -
Page 8: Shelf Installation, Important Operation & Pressure Control Settings
SHELF INSTALLATION ATLAS DISPLAY CASES COME STANDARD WITH TWO COATED WIRE SHELVES THAT ARE ADJUSTABLE IN 1/2" INCREMENTS. *ACCESSORY SHELVING MAY BE PROVIDED UPON REQUEST BRINGING THE TOTAL LIMIT TO THREE SHELVES. CAUTION - MAXIMUM WEIGHT LIMIT PER SHELF AND S/S BOTTOM IS 75 POUNDS EACH. OVERLOADING CAN DAMAGE EQUIPMENT AND CAUSE BODILY INJURY. -
Page 10: Trouble Shooting Guide
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com Refrigerated Drop-In Trouble Shooting Guide Symptom Probable Cause Unit not plugged in. No power at receptacle. Unit will not run Thermostat and or switch not in the on position. -
Page 11: Electrical Schematics
DATE: SIZE: CUSTOMER: DESCRIPTION DATE 09.04.08 WCPT-ELECTRICAL SCHEMATIC I . A DRAWN BY: REFERENCE: WCPT-3-4 ELECT.SCHEMATIC CHECKED BY: P.O. #: ------ DRAWING No. SCALE: 3/4" = 1'-0" I ., ----- 1135 NW 159TH DRIVE MIAMI, FLORIDA 33169 SHEET No. JOB #:... -
Page 12: Limited Warranty
(18) months after date of shipment from factory. During this period of time Atlas Metal Industries, Inc. will replace all defective parts and will pay for authorized replacement labor. Replacement and installation of such parts and labor shall be provided only upon prior written authority of Atlas Metal Industries, Inc. -
Page 13: Warranty Information
An authorization number must be obtained from the factory prior to performing any warranty service. _______________________________________________ Atlas Metal will not approve excessive labor due to poor access to the unit being serviced. If design does not allow reasonable access, contact the factory. _______________________________________________ All travel time that exceeds 100 miles round trip must be authorized by the factory.
