BLH-H SERIES
Service and Installation Manual
Please read this manual completely before attempting to install or operate this equipment!
Notify carrier of damage! Inspect all components immediately. See page 1.

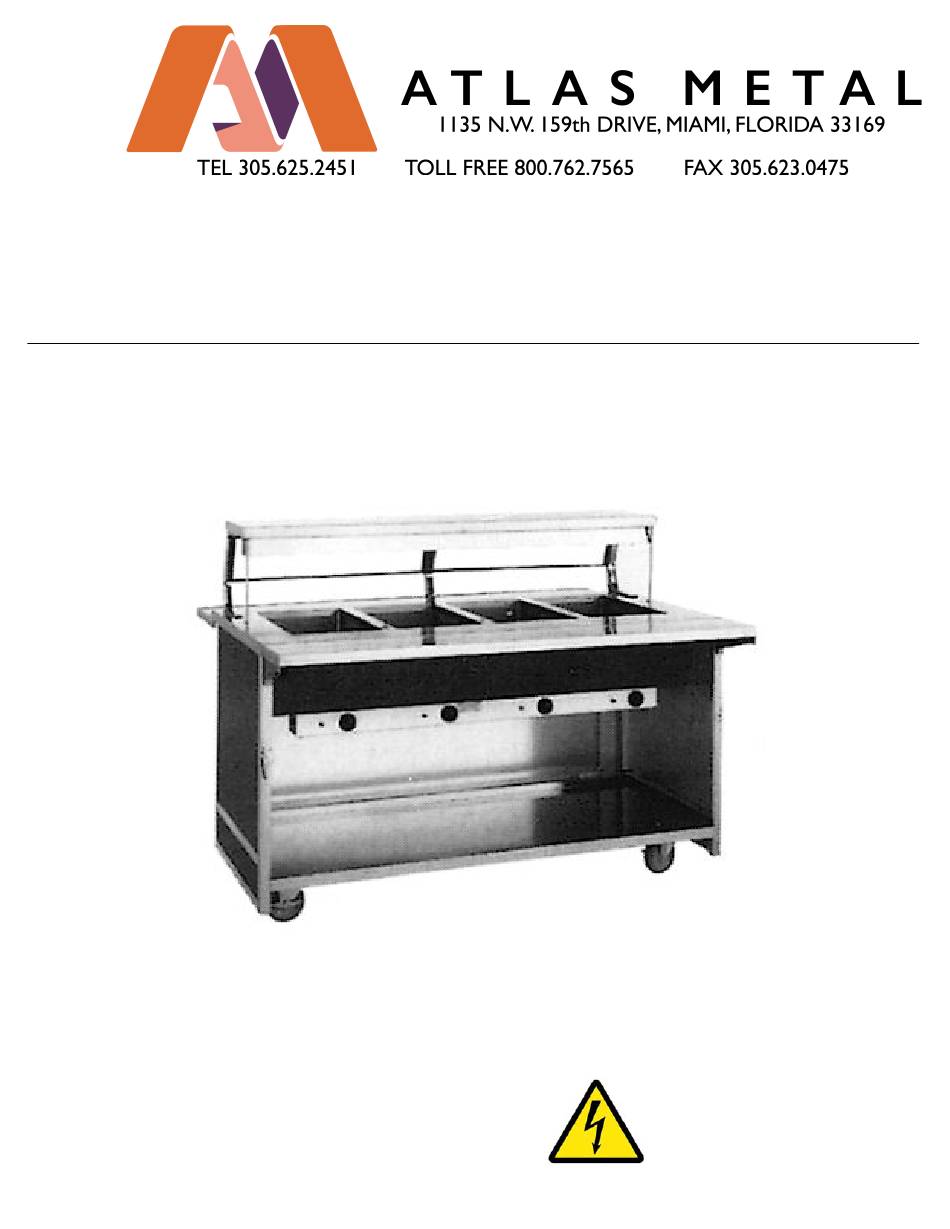

BLH-4 SHOWN W/ ACCESSORIES
Effective Date: 2023
IMPORTANT INFORMATION
READ BEFORE USE
Specifications subject to change without notice.
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Atlas Metal BLH-H Series
Summary of Contents for Atlas Metal BLH-H Series
- Page 1 BLH-H SERIES Service and Installation Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 1. BLH-4 SHOWN W/ ACCESSORIES Effective Date: 2023 IMPORTANT INFORMATION READ BEFORE USE...
-
Page 2: Table Of Contents
CONTENTS RECEIVING & INSPECTING EQUIPMENT………………………………………………………………….1 SERIAL AND MODEL# LOCATION…………………………………………………………………………..1 BLH SPECIFICATIONS FEATURES AND ACCESSORIES………………………………………….……2 ELECTRICAL CHARACTERISTISC AND CUT-OUT REQUIREMENTS………………...……..3 WH SPECIFICATIONS FEATURES AND ACCESSORIES………………………………………………..4 ELECTRICAL CHARACTERISTICS AND CUT-OUT REQUIREMENTS……………………..5 WIH SPECIFICATIONS FEATURES AND ACCESSORIES…………………………………………..…..6 ELECTRICAL CHARACTERISTICS AND CUT-OUT REQUIREMENTS……………………..7 WIHL SPECIFICATIONS FEATURES AND ACCESSORIES…………………………………………..…8 ELECTRICAL CHARACTERISTISC AND CUT-OUT REQUIREMENTS……………………..9 INSTALLATION, OPERATION AND S/S MAINTENANCE………………………………………………..10 REMOTE CONTROL…………………………………………………………………………………………..11... -
Page 3: Blh Specifications Features And Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ MODULAR UNITS BL SERIES HOT FOOD UNIT BLH-2 BLH-3 Electrically Heated, BLH-4 Individual Controls BLH-5 (Drain and Manifold BLH-6 Optional) BLH-4 SHOWN W/ ACCESSORIES SPECIFICATIONS ACCESSORIES g TS - Tray Slide, 12” wide, S/S, solid, ribbed, fold-down TOP: Constructed of 16 gauge, type 304 stainless steel, die-formed, g SL - Tray Slide, 11-1/4”... -
Page 4: Electrical Characteristisc And Cut-Out Requirements
208V - 5.1KW - 24.5 6-50P BLH-6 850WATT 240V - 5.1KW - 21.3 L6-30P 208V - 6.0KW - 28.8 6-50P 1000WATT 240V - 6.0KW - 25.0 6-50P Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com BL-6 02/20-sc... -
Page 5: Wh Specifications Features And Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ DROP-IN SERVING EQUIPMENT WH-2 HOT PAN WH-3 Electrically Heated WH-4 WH-5 Single Control WH-6 WH-3 SPECIFICATIONS STANDARD FEATURES TOP: Constructed of 18 gauge, type 304 stainless steel, die Fully insulated to retain heat - protects fixtures and stamped flange with a raised perimeter bead. -
Page 6: Electrical Characteristics And Cut-Out Requirements
208V - 5.1KW - 24.5 850WATT WH-6 L6-30P 240V - 5.1KW - 21.3 6-50P 208V - 6.0KW - 28.8 1000WATT 6-50P 240V - 6.0KW - 25.0 Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com DI-2 2/20-sc... -
Page 7: Wih Specifications Features And Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ DROP-IN SERVING EQUIPMENT WIH-1 HOT PAN WIH-2 WIH-3 Electrically Heated WIH-4 Individual Controls WIH-5 WIH-6 WIH-3 SPECIFICATIONS STANDARD FEATURES Fully insulated to retain heat - protects fixtures and TOP: Constructed of 18 gauge, type 304 stainless steel, die saves energy stamped with a raised perimeter bead. -
Page 8: Electrical Characteristics And Cut-Out Requirements
208V - 5.1KW - 24.5 6-50P WIH-6 850WATT 240V - 5.1KW - 21.3 L6-30P 208V - 6.0KW - 28.8 6-50P 1000WATT 240V - 6.0KW - 25.0 6-50P Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com DI-4 1/24-sc... -
Page 9: Wihl Specifications Features And Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ SLIM-LINE DROP-IN SERVING EQUIPMENT SLIM-LINE WIHL-2 HOT PAN WIHL-3 Electrically Heated WIHL-4 Individual Controls WIHL-2 SPECIFICATIONS STANDARD FEATURES TOP: Constructed of 18 gauge, type 304 stainless steel, die Slim line configuration - it can install in counters only stamped with a raised perimeter bead. -
Page 10: Electrical Characteristisc And Cut-Out Requirements
Note: Numeral following the model letters denotes the 12X20 pan capacity 208V - 4.0KW - 19.2 L6-30P 1000WATT 240V - 4.0KW - 16.7 L6-30P Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com DI-6 1/24-sc... -
Page 11: Installation, Operation And S/S Maintenance
ELECTRICAL HEATED UNITS WH/ WIH/ WIHD/ WIHD&M/ WIHL AND WIH 1-6 SERIES -------------------------------------------------------------------------------------------------------------------------------- -------------------------- INSTALLATION Provide the correct counter cut-out opening (see chart below) and drop in. The vinyl gasket assures complete seating. A non-toxic silicone seal may be used between the gasket and counter top (not required). -
Page 12: Remote Control
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com WIH-REMOTE INSTALLATION WH/WIH STANDARD INSTALLATION PANEL WITH CUT-OUT STUDS 3 1 8 " GALVANIZED BOX SCREW 4 1 4 " 3 1 4 "... -
Page 13: Parts List
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com PARTS LIST ELECTRICAL HEATED UNITS W/AUTOMATIC WATER FILL WH/ WIHD&M/ WIHLD&M- /WIHD&M- 1-6 SERIES ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER... -
Page 14: Automatic Water Fill Installation, Operation, & Parts List
Failure to do so may result in warranty denial. It is recommended the customer supply a primary water filtering system for protection. *Note‐Atlas Metal Ind. Inc. is not responsible for routine maintenance of the strainer or customer supplied water filter system. *Atlas Metal Industries Inc. recommends that all units installed to a water source use our Autofill or any backflow protection of your choice. Please refer to your local code. Any attempt to change or modify the Auto Fill system will void the warranty. OPERATION ... - Page 15 Note - Atlas Metal highly recommend the installation of a water filtration kit or “whole house” water filtration system to ensure warranty coverage. Atlas Metal Industries, Inc. is not responsible for routine maintenance of the strainer, or the customer supplied water filter system.
- Page 16 Manipulating the AutoFill can cause the unit to fail, leak, and void your warranty. Note - Atlas Metal Industries, Inc. is not responsible for routine maintenance of the strainer or the customer supplied water filter system.
- Page 17 Note - Atlas Metal Industries, Inc. is not responsible for routine maintenance of the strainer or the customer supplied water filter system. Revised 12.23...
-
Page 18: Trouble Shooting Guide
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com Electric Hot Food Drop-In Trouble Shooting Guide Symptom Probable Cause Unit not plugged in. No power at receptacle. Unit will not heat Thermostat and or switch not in the on position. -
Page 19: Electrical Schematics 120V
REVISION HISTORY DESCRIPTION DATE 2/16/2012 CHANGE LABLES 1,000 OR 1,000 OR 850 WATTS 850 WATTS ELEMENT ELEMENT 12 AWG GROUND TO THE CONTROL CASE 12 AWG POWER CORD MATERIAL: CATEGORY: DRAWN BY: DATE: L.AND 11/30/2010 TOLERANCES 1135 NW 159TH DRIVE MIAMI, FLORIDA 33169 ---- CHECKED BY: ELECTRICAL SCHEMATIC... -
Page 20: Electrical Schematics 208V-240V
REVISION HISTORY DESCRIPTION DATE 2/16/2012 CHANGE LABLES 1,000 OR 1,000 OR 850 WATTS 850 WATTS ELEMENT ELEMENT 12 AWG GROUND TO THE CONTROL CASE 12 AWG POWER CORD MATERIAL: CATEGORY: DRAWN BY: DATE: L.AND 11/30/2010 TOLERANCES 1135 NW 159TH DRIVE MIAMI, FLORIDA 33169 ---- CHECKED BY: ELECTRICAL SCHEMATIC... -
Page 21: Receiving & Inspecting Equipment
HEATED BASE-HB SERIES Service and Installation Manual RECEIVING AND INSPECTING THE EQUIPMENT 1. VISUALLY INSPECT THE SHIPPING CRATE. DAMAGE SHOULD BE NOTED AND REPORTED TO THE DELIVERING CARRIER. 2. IF DAMAGED, OPEN AND INSPECT CONTENTS WITH CARRIER. 3. IF CRATE IS NOT DAMAGED AND THERE IS CONCEALED DAMAGE TO THE EQUIPMENT, NOTIFY THE CARRIER. NOTIFICATION MUST BE MADE VERBALLY AND IN WRITING. -
Page 22: Hb Specifications Features And Accessories
Project: ___________ Item No.: ___________ Quantity: ___________ SLIDE-IN SERVING EQUIPMENT HEATED HB-3 BASE HB-4 Electrically Heated HB-5 Under Counter HB-3 SPECIFICATIONS STANDARD FEATURES Slides into your counter - puts heated storage where BODY: Double wall constructed with 20 gauge, type 304 you need it stainless steel interior liner, with coved corners. -
Page 23: Electrical Characteristisc And Cut-Out Requirements
HB-4 (140.9cm) (40 X 140.9cm) (120.2kg) 120V 69-3/8” 15-3/4” X 69-3/8” 850 W - 7.1 amps. HB-5 (175.8cm) (40 X 175.8cm) (141.5kg) 120V Atlas Metal Industries 1135 NW 159th Dr. Miami, FL 33169 (800) 762-7565 Fax: (305) 623-0475 atlasfoodserv.com DI-58 2/19-sc... -
Page 24: Installation, Operation And S/S Maintenance
SLIDE- IN HEATED BASE HB SERIES -------------------------------------------------------------------------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------------------------------------------------------------------------------- OPERATION The unit is ready to operate as soon as it is plugged in and turned on. The thermostat has an off position and numbers from #1 through #10 (number 10 is the highest setting). The unit is supplied with a power cord and NEMA plug. -
Page 25: Parts List
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com PARTS LIST ELECTRICAL HEATED BASE HB SERIES H B -4 S H O W N ITEM P ART DESCRIPTION NUMBER NUMBER... -
Page 26: Trouble Shooting Guide
Subsidiary of Mercury Aircraft, Inc. 1135 N.W. 159th DR., MIAMI, FL 33169 PHONE (305) 625-2451, (800) 762-7565, FAX (305) 623-0475, E-mail: sales@atlasfoodserv.com Electric Hot Food Drop-In Trouble Shooting Guide Symptom Probable Cause Unit not plugged in. No power at receptacle. Unit will not heat Thermostat and or switch not in the on position. -
Page 28: Limited Warranty
(18) months after date of shipment from factory. During this period of time Atlas Metal Industries, Inc. will replace all defective parts and will pay for authorized replacement labor. Replacement and installation of such parts and labor shall be provided only upon prior written authority of Atlas Metal Industries, Inc. -
Page 29: Warranty Information
An authorization number must be obtained from the factory prior to performing any warranty service. _______________________________________________ Atlas Metal will not approve excessive labor due to poor access to the unit being serviced. If design does not allow reasonable access, contact the factory. _______________________________________________ All travel time that exceeds 100 miles round trip must be authorized by the factory.
