ATD-7454A

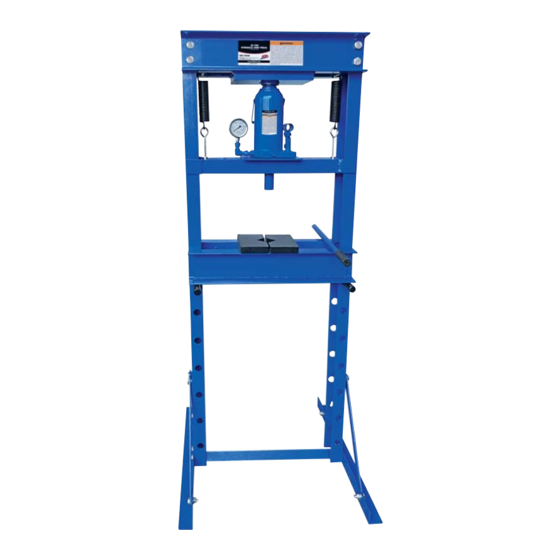

Hydraulic Shop Press with Bottle Jack
Owner's Manual
Features:
Specifications:
!
The safety alert symbol is used to alert you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid possible injury or property damage.
Read this manual and follow all Safety Rules and Operating Instructions before using this product.
Made in China to ATD Tools, Inc. Specifications
ATD7454A_rev_0922
Visit us at www.atdtools.com
Advertisement
Table of Contents
Related Manuals for ATD Tools ATD-7454A
Summary of Contents for ATD Tools ATD-7454A

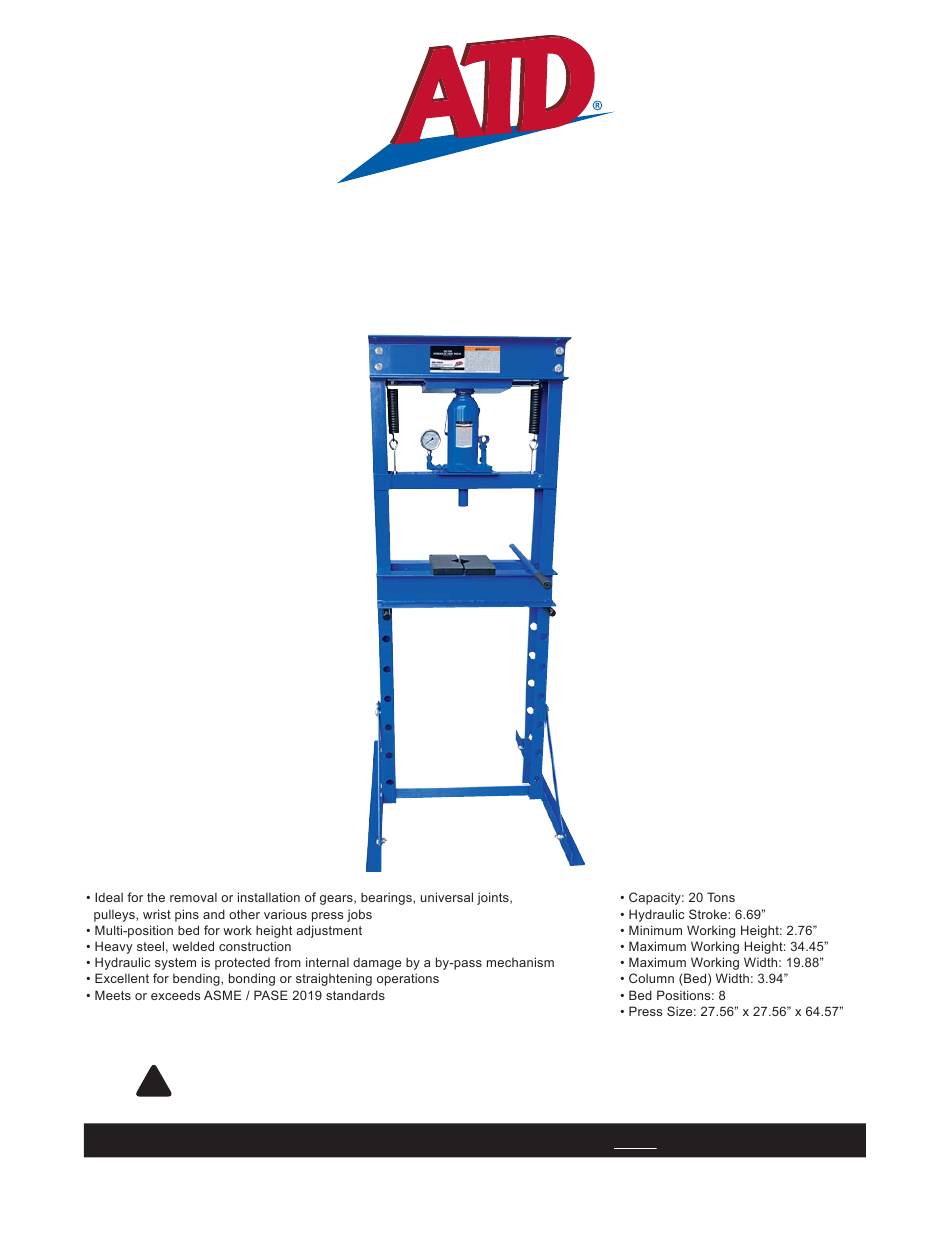

- Page 1 Read this manual and follow all Safety Rules and Operating Instructions before using this product. Made in China to ATD Tools, Inc. Specifications ATD7454A_rev_0922 Visit us at www.atdtools.com...
-
Page 2: Safety And General Information
SAFETY and GENERAL INFORMATION Save these instructions. For your safety, read, understand, and follow the information provided with and on this product The owner and operator of this equipment should have an of this product and safe procedures to use. The owner and operator should aware that use and repair of this product may require special Instructions and safety information should... - Page 3 PREPARATION Before Use this product, read the operator's manual completely and yourself with the yourself with operation, locate and turn the release valve. CLOSED release valve position used to extend the ram. This is the ‘OPEN release valve position used to retract the ram. This will help release any air, which may trapped within the reservoir.
- Page 4 Assembly Model ATD-7454A (Refer to Figure 2) Note: Si e of ardware Kits ， oc washer M 2 Flat washer oc washer M attachment later. NOTICE : Before disassembly , carefully slide bed to its fully lowered position.
-
Page 5: Operation
WARNING Study, understand, and follow Always Do not safety shield is installed Failure result in personal injury and/or property damage. OPERATION Projectile Hazard! Wear ANSI approved eye protection. Never stand directly in front of loaded press. fully following all operating instructions. Know your press and hazards associated with its use. Crush Hazard! Keep hands and feet from bed area at all times. -
Page 6: Maintenance
MAINTENANCE each use, inspect press for Do not use if or otherwise Adding/Changing oil to bottle jack ATD-7454A: Important: Note Rust prevention ram and pump piston for of rust on a Clean as needed with a lint free, oil saturated cloth. -
Page 7: Replacement Parts
REPLACEMENT PARTS all components of this product are replacement items, are illustrated as a convenient reference for position in sequence. parts, model part and description. Replacement Parts illustration for model ATD-7454A Item Ordering Part# Description Male Connector... -
Page 8: Troubleshooting
TROUBLESHOOTING Symptom Possible Causes Corrective Action Ram will not press load Remedy overload condition Air trapped in system... - Page 9 PREVENTATIVE MAINTENANCE RECORD LOG DATE MAINTENANCE PERFORMED...
-
Page 10: Warranty
WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES _______________________________________ ________________________________________ one year from your date of purchase of this product.
