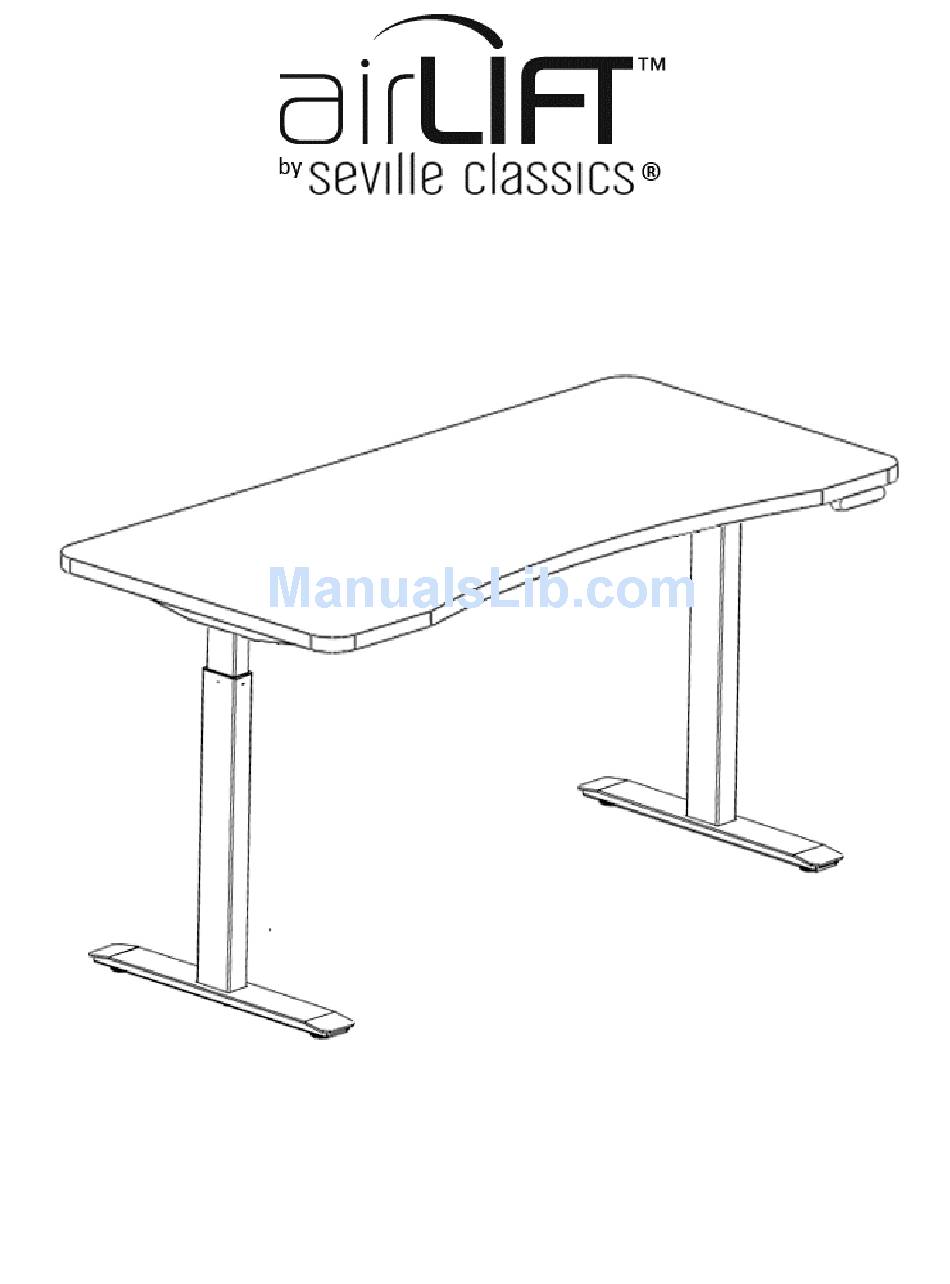

Page 1: User Manual
AIRLIFT™ S2 Electric Height-Adjustable Standing Desk USER MANUAL... - Page 2 Initialization & Use Instructions DESK MUST BE INITIALIZED BEFORE YOUR FIRST USE SAVE MEMORY MEMORY 1 / 2 / 3 / 4 DISPLAY UP ARROW DOWN ARROW Initialize Press and hold the UP ARROW and DOWN ARROW simultaneously on the controller until three blinking zeros appear on the display, then release.
-
Page 3: Troubleshooting
Troubleshooting Problem Action Desk does not go up or down. Check all connections. Make sure power cord is plugged into the The controller does not illuminate control box and a power outlet. Press any button on the controller when any button is pressed. and make sure it illuminates. - Page 4 The liability of Seville Classics under the warranty shall be limited to the amount paid by the customer for the product. Seville Classics shall not be liable for any loss of use of the product, or other incidental or consequential costs, expenses or damages incurred by customer or other user.
-
Page 5: Specifications
Specifications Maximum Height: 47.4" Minimum Height: 27.7" ® Maximum Weight Capacity (with Seville Classics Ergo Top): 264 lbs. Base Dimensions: (45.27" to 63" W) x 23.63" D x (27.75" to 47.44") H Base Weight: 69.4 lbs. Lifting Speed (unloaded): 1.49" per second...
Need help?
Do you have a question about the airLIFT S2 and is the answer not in the manual?
Questions and answers

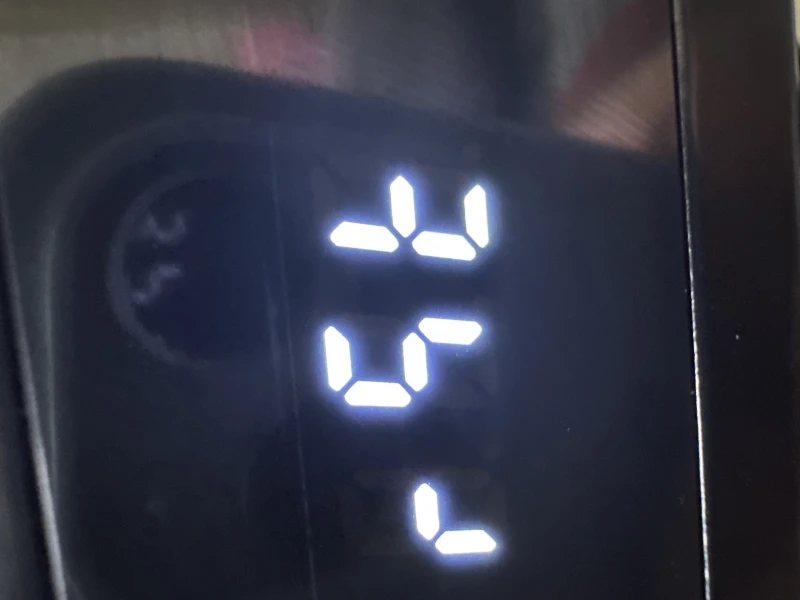

My airLIFT desk does not go up and down and is displaying a code that I couldn’t find in the manual. Can you please suggest any troubleshooting step I could take?
If a Seville Classics AIRLIFT S2 desk is not adjusting height and displays an error code, follow these troubleshooting steps:
1. Identify the Error Code:
- E-2, E-5, E-6: Re-initialize the system.
- E-1, E-4: Contact customer service.
2. Re-initialize the Desk:
- Press and hold the UP ARROW and DOWN ARROW simultaneously until three blinking zeros appear.
- Release the buttons.
- The desk will move to its lowest, then highest, then middle height.
- When the display shows about 38 (+/-1), the desk is ready.
3. If Re-initialization Fails:
- Try switching cables from one port to another at the control box and re-initialize again.
- If the error code still appears, contact customer service.
These steps address most common error codes that prevent height adjustment.
This answer is automatically generated
