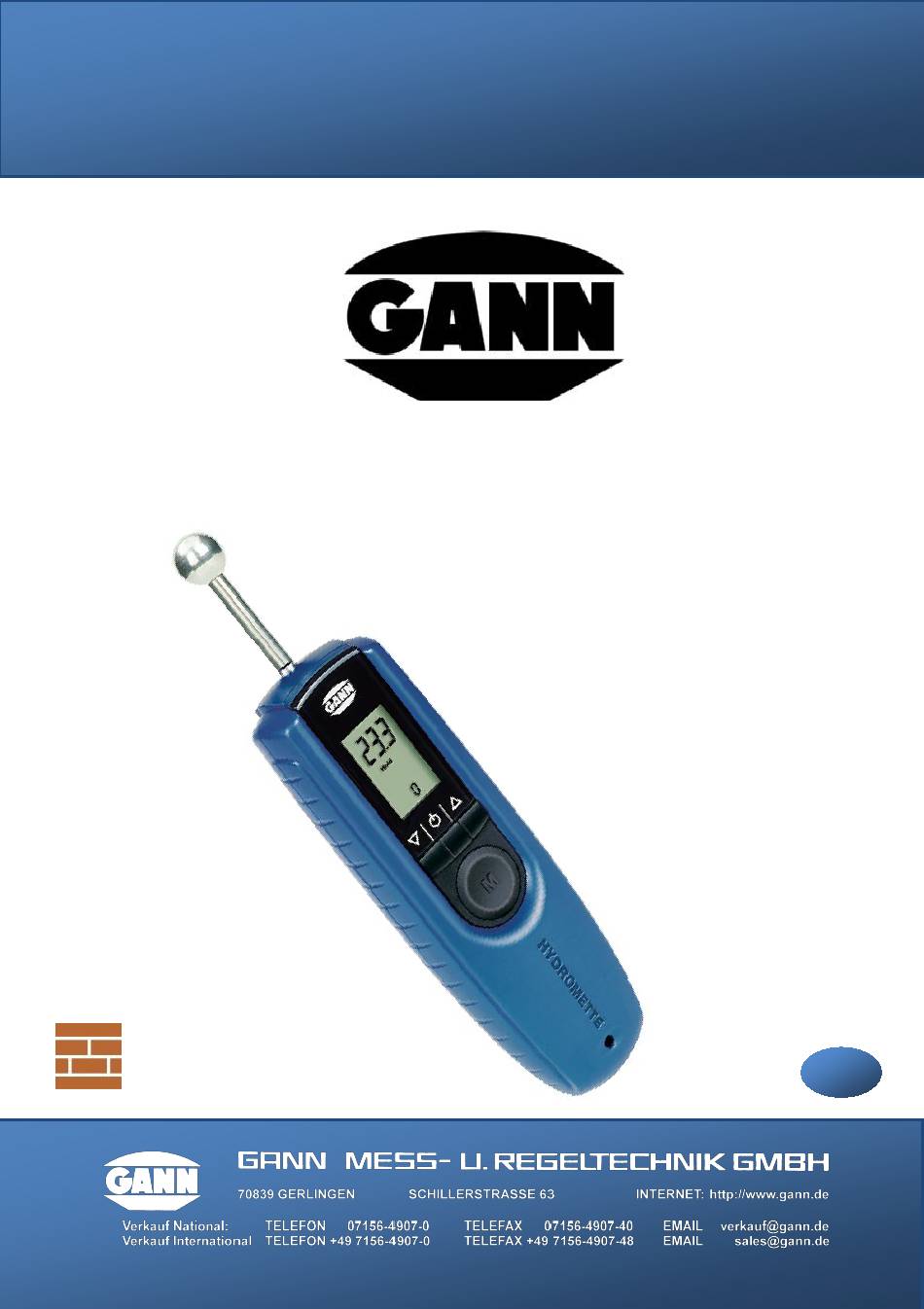

- Page 1 Quick Start Guide Version 1.0 HYDROMETTE BL COMPACT B 2 Hydromette BL Compact TF...
- Page 2 Neither GANN Mess- u. Regeltechnik GmbH nor any of its partner or subsidiary companies can be made responsible or liable in the event of misuse of the information contained in this document.
-
Page 3: Table Of Contents
Table of Contents Foreword ..............4 Explanation of the General Warnings ....5 Device Layout and Button Assignment...... 6 Display Symbols ............. 7 Switching the Device On and Off ......8 Setting Menus ............8 2.3.1 Measuring Menu (Main Menu) ..... 9 2.3.2 Material Setting ........... -
Page 4: Foreword
1 Foreword This quick start guide contains an overview of the most important functions of the Hydromette BL Compact B 2. It only contains parts of the legal and safety-relevant information and has been abridged for better readability. A complete digital version of the operating instructions is available on our homepage in the download area (in English: pdf. -
Page 5: Explanation Of The General Warnings
1.1 Explanation of the General Warnings The following danger levels are used in this quick start guide to indicate potentially dangerous situations and important safety instructions: Danger Level Description Danger / Indicates a hazardous situation which, if not avoided, will result in death or serious irreversible injuries. -
Page 6: Device Layout And Button Assignment
2 Device Layout and Button Assignment Ball electrode LCD segment display Up button On / Off button Down button Measure button ("M"-button) Mini–USB port Figure 2-1: View of the Hydromette BL Compact B 2 ® Version 1.0 Hydromette BL Compact B 2... -
Page 7: Display Symbols
2.1 Display Symbols Material moisture in % by weight or CM "Hold" symbol Material index and building material symbol Figure 2-2: Main menu symbols Symbols for maximum value display Alarm "OFF" Battery level indicator Material index Building material symbol Figure 2-3: Other symbols ®... -
Page 8: Switching The Device On And Off
2.2 Switching the Device On and Off The device is switched on and off by pressing the "On / Off" button . The device starts in the measuring menu or main menu. The measuring process can be carried out here [see Chapter 2.3.1. -
Page 9: Measuring Menu (Main Menu)
4. Maximum value display: The largest measured value is shown here. 5. Memory Menu: The last 5 measured values are stored here. The oldest value is overwritten after each measurement. The menu items are selected in reverse order by pressing the "Up"... - Page 10 started by pressing and holding (> 2 seconds) the "M" button without changing the previous maximum value. If the alarm function is turned on, a warning signal sounds if the adjustable alarm value is exceeded. At the same time, the selected alarm value is shown in the second line of the display.
-
Page 11: Material Setting
2.3.2 Material Setting The material can be selected in this menu. Please refer to the material table in the appendix for the corresponding material data. To be able to make the material settings, the device must be switched on and in the measurement menu (main menu). Then press the "Down"... -
Page 12: Appendix
3 Appendix 3.1 Material Table Material index Material Scan mode (display in digits) Cement screed in weight-% Anhydrite screed in weight-% Concrete in weight-% Cement mortar in weight-% Lime mortar in weight-% Mixed plaster in weight % Gypsum plaster in weight % Cement screed in CM % Anhydrite screed in CM % Gypsum plaster in CM %...
