- Page 1 Version 1.01 Quick Start Guide HYDROMETTE BL COMPACT TF-IR 2 Hydromette BL Compact TF...
- Page 2 Disclaimer GANN Mess- u. Regeltechnik GmbH does not make any assurances or warranties with respect to this document and, to the extent permitted by law, limits its liability for breach of any implied warranty to the replacement of this document with another.
- Page 3 Copyright © 2022 GANN Mess- u. Regeltechnik GmbH, Gerlingen All rights reserved. No part of this publication may be reproduced, processed or distributed in any form, including photocopying, recording or any other electronic or mechanical process, without the written permission of the publisher. Requests for permissions must be made in writing to the publisher at the address given on the title page.
-
Page 4: Table Of Contents
Explanation of the general warnings ........ 6 Specific warnings ............... 6 Device layout and button assignment ........ 7 Display Symbols ..............8 Display in measuring mode ..........9 Setting menus ..............10 2.3.1 Measuring Menu (main menu) ......11 Hydromette BL Compact TF-IR 2... -
Page 5: Foreword
1 Foreword This quick start guide contains an overview of the most important functions of the Hydromette BL Compact TF-IR 2. It only includes parts of the relevant legal and safety information and has been shortened for better readability. A detailed version is available for download on our website: https://www.gann.de/de/produkte/handmessgeraete/elektronisc... -
Page 6: Explanation Of The General Warnings
Indicates important information. INFORMATION 1.2 Specific warnings CAUTION: The Hydromette BL Compact TF-IR 2 uses a laser in laser class 2 according to IEC 60825-1. People can be blinded by the laser. The laser must never be directed at people or animals. Do not look directly into the laser beam and avoid reflections on reflective surfaces. -
Page 7: Device Layout And Button Assignment

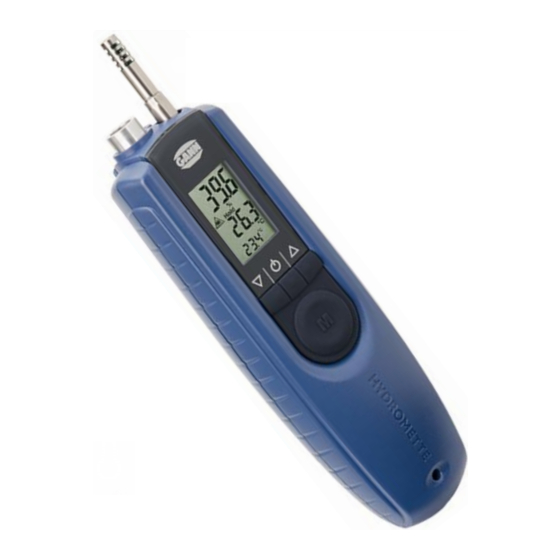

2 Device layout and button assignment Sensor (TF-Stick) IR sensor Laser pointer LCD segment display Up button Down button On/Off button Measure button ("M" button) Mini-USB port Hydromette BL Compact TF-IR 2... -
Page 8: Display Symbols
Figure 2-1: Main menu symbols Symbols for Battery level minimum / indicator maximum value display Unit of absolute humidity Laser symbol (g/m³) Emissivity (EM Dew point factor) symbol symbol (Dp) and unit (°C) EMC symbol Figure 2-2: Other symbols Hydromette BL Compact TF-IR 2... -
Page 9: Display In Measuring Mode
2.2 Display in measuring mode The Hydromette BL Compact TF-IR 2 is supplied with the TF-Stick 16 K 25 inserted as standard. If the device is now switched on by pressing the "On" button, the device starts in the "Dew point IR" (rh / lr / dp) measuring mode. -
Page 10: Setting Menus
5. Minimum value display: The smallest measured value is shown here. 6. Memory Menu: The last 5 measured values are stored here. The oldest value is overwritten after each measurement. The menu items are selected in reverse order by pressing the "Up" button. Hydromette BL Compact TF-IR 2... -
Page 11: Measuring Menu (Main Menu)
"M" button must be pressed briefly (< 1 second). If the value should not be saved, a new measurement can be started by pressing and holding (> 2 seconds) the "M" button without changing the previous minimum value. Hydromette BL Compact TF-IR 2... - Page 12 -Subject to technical changes- Date: October 2022 Hydromette BL Compact TF-IR 2...
