- Page 1 Version 1.0 Operating Instructions HYDROMETTE BL UNI 11 Hydromette BL UNI 11...
-
Page 2: Table Of Contents
Minimum Value Display ........15 2.3.5 Memory Menu ........... 16 2.4 Other Functions............17 2.4.1 Automatic Switch-off .......... 17 2.4.2 Battery Monitoring ..........17 Specifications ..............18 3.1 Technical Data ............. 18 3.2 Prohibited Environmental Conditions ......18 Hydromette BL UNI 11... - Page 3 Active electrode TF-IR BL ........21 4.2.6 Active electrode ET 100 BL ....... 21 4.2.7 Active electrode OT 100 BL ....... 22 4.2.8 Active electrode TT 40 BL 4.2.9 Connecting cable MK 16 & MK 18 Hydromette BL UNI 11...
-
Page 4: Publication Statement
This publication replaces all previous versions. It may not be reproduced in any form or processed, duplicated or disseminated using electronic systems without the written permission of Gann Mess- u. Regeltechnik GmbH. Subject to technical and documentary changes. All rights reserved. This document was prepared with the required care. -
Page 5: General Notes
Operational reliability and functionality are no longer ensured if the device is modified or adapted. Gann Mess- u. Regeltechnik GmbH is not liable for any damage arising from such modifications or adaptations. The risk is borne by the user alone. -
Page 6: Weee Directive 2002/96/Ec Law On Electrical And Electronic Equipment
Measurements must not be carried out on metallic surfaces. Gann Mess- u. Regeltechnik GmbH accepts no liability for damage resulting from non-adherence to the operating instructions or by not taking proper care during transport, storage or operation of the device, even if this requirement for care is not specifically addressed in the operating instructions. -
Page 7: Introduction

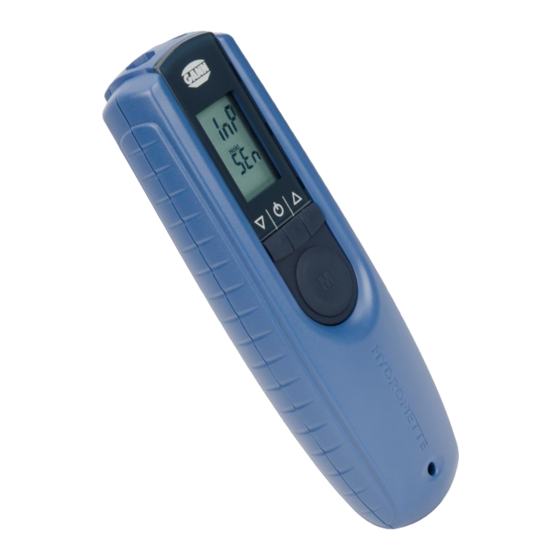

Introduction 1 Introduction Description The Hydromette BL UNI 11 is a universal triple meter with a 3-line LCD display. By connecting a wide range of active electrodes and TF sticks with high-quality sensor technology, the measurement ranges of building moisture, humidity and temperature can be covered. -
Page 8: Device Layout And Button Assignment
Immersion and flue gas temperature sensor All mentioned active electrodes are listed and described in detail in chapter 4. Device Layout and Button Assignment TF stick connector Electrode connector Display Up button On/off button Measurement button Down button Hydromette BL UNI 11... -
Page 9: Display Symbols
Main menu symbols Material / Air humidity Measured value is held. Ready for measurement Temperature in °C Construction material symbol index Other symbols Max indicator Digit value Battery symbol Temperature in °C „0“ = Scanning mode (digit) Hydromette BL UNI 11... -
Page 10: Basic Functions
Figure 2-1 Measurement menu After pressing ON, the display changes to the measurement menu (the main menu). This menu is used to show the most recently measured values. This information is shown by displaying "Hold" on the display. Hydromette BL UNI 11... -
Page 11: Display In Measuring Mode
Digit values are non-dimensional measured values and no real humidity values in %! A measurement is initiated by pressing the M button for more than 1 second. Hydromette BL UNI 11... -
Page 12: Setting Menus
If the value is not to be saved, the "M" button must be pressed briefly. If the value is to be saved, a new measurement is started with a long press on the "M" button without changing the previous maximum values. Hydromette BL UNI 11... -
Page 13: Material Setting
The Material index flashes and can be set using the Up or Down buttons. The change is saved by pressing the "M" button again briefly. The material table is found in the appendix of each probe. Hydromette BL UNI 11... -
Page 14: Maximum Value Display
Afterwards, only the "Max" symbol is still flashing. Using another momentary press on "M" button, the entry is confirmed and the device returns to the Ready mode. Using the "M" button, a new measurement can then be carried out immediately. Hydromette BL UNI 11... -
Page 15: Minimum Value Display
By momentarily pressing the "M" button again, the deletion of the value is confirmed and the % symbol disappears. The device now returns to Ready mode. Using the "M" button, a new measurement can then be carried out. Hydromette BL UNI 11... -
Page 16: Memory Menu
After reaching the 5th memory location, the first one is shown again. The saved values displayed can be identified by the fact that no "Hold" symbol is shown in the display. Hydromette BL UNI 11... -
Page 17: Other Functions
2.4.2 Battery Monitoring If the battery symbol appears in the display, the battery is dead and must be renewed. A list of battery types that can be used can be found in the "Technical data" chapter. Hydromette BL UNI 11... -
Page 18: Specifications
Condensation, air humidity continuously too high (> 85 %) and wetness Permanent presence of dust and combustible gases, fumes or solutions Ambient temperatures continuously too high (> +50 °C) Ambient temperatures continuously too low (< 0 °C) Hydromette BL UNI 11... -
Page 19: Application Notes
General Notes The BL UNI 11 is an electronic multi-purpose meter for three measured values, to which a number of GANN BL electrodes and TF sticks can be connected. The Auto Sensor Technology used enables the BL UNI 11 to automatically detect the electrode or TF stick connected and to adapt the measured value readout to the respective sensor type. -
Page 20: Active Electrode Rf-T 28 Bl
The RH-T 37 BL is particularly suitable for moisture analysis, damage assessments, construction-dehydration and to test the readiness for the installation of floor and wall coverings. Hydromette BL UNI 11... -
Page 21: Tf Sticks
