Summary of Contents for GANN HYDROMETTE BL COMPACT RH-T 320

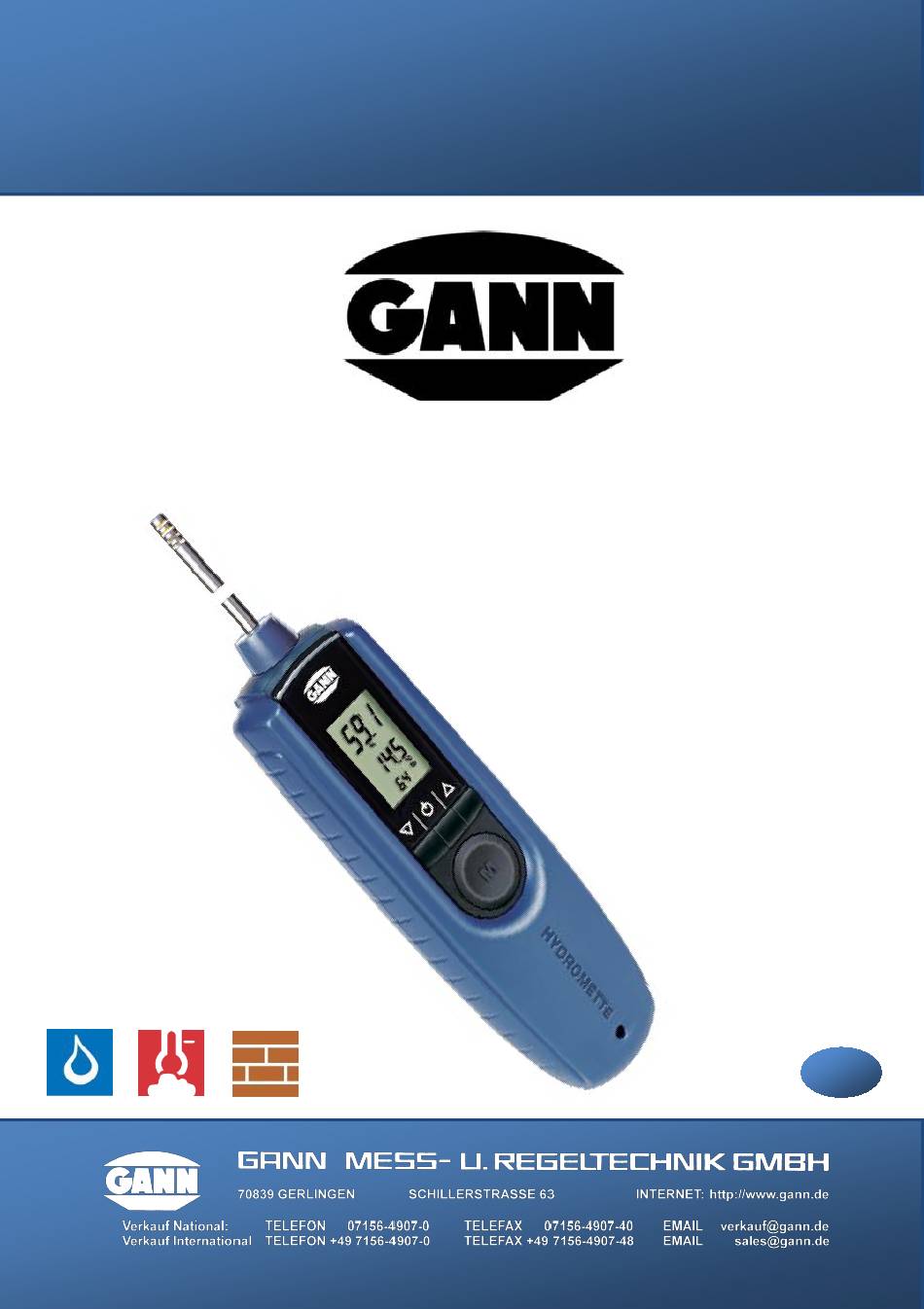

- Page 1 Quick Start Guide Version 1.0 HYDROMETTE BL COMPACT RH-T 320 Hydromette BL Compact TF...
- Page 2 Neither GANN Mess- u. Regeltechnik GmbH nor any of its partner or subsidiary companies can be made responsible or liable in the event of misuse of the information contained in this document.
- Page 3 Table of Contents Foreword ..............4 Explanation of the General Warnings ....5 Device Layout and Button Assignment...... 6 Display Symbols ............. 7 Switching the Device On and OFF ......8 Setting Menus ............8 2.3.1 Measuring Menu (Main Menu) ..... 9 2.3.2 Measuring Mode Selection ......
- Page 4 A complete digital version of the operating instructions is available on our homepage in the download area (in English: pdf. file with EN extension): https://www.gann.de/en/products/handhelds/electronic- moisture-meters/blue-product-series/bl-compact-rh-t- 320#downloads Only use the device if you have read and understood all legal and safety-related information in the complete operating manual.
- Page 5 1.1 Explanation of the General Warnings The following danger levels are used in this quick start guide to indicate potentially dangerous situations and important safety instructions: Danger Level Description Danger / Indicates a hazardous situation which, if not avoided, will result in death or serious irreversible injuries.

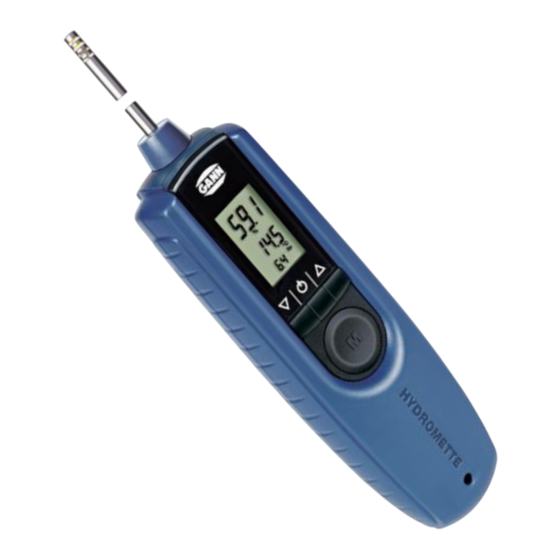

- Page 6 2 Device Layout and Button Assignment Sensor LCD segment display Up button On / Off button Down button Measure button („M“-button) Mini-USB-port View of the Figure 2-1: Hydromette BL Compact RH-T ® Version 1.0 Hydromette BL Compact RH-T...
- Page 7 2.1 Display Symbols Relative humidity in r.H.% "Hold" symbol Temperature in °C Display measuring mode Figure 2-2: Main menu symbols Physical units Symbols for depending on minimum / measuring maximum value mode display Battery level Symbol water indicator activity Material EMC symbol for index and wood...
- Page 8 2.2 Switching the Device On and OFF The device is switched on and off by pressing the "On / Off" button . The device starts in the measuring menu or main menu. The measuring process can be carried out here (see Chapter 2.3.1.
- Page 9 4. Minimum value display: The smallest measured value is shown here. Memory menu: The last 5 measured values are stored here. The oldest value is overwritten after each measurement The menu items are selected in reverse order by pressing the "Up"...
- Page 10 If the new measured value is smaller than the previous minimum value, "Min" flashes on the display. If the new value should be accepted, the "M" button must be pressed briefly (< 1 second). If the value should not be saved, a new measurement can be started by pressing and holding (>...
- Page 11 3 Appendix 3.1 Measuring Mode Table Measuring mode Measuring mode display "Relative humidity" (rh / t / rh) "Air temperature" (rh / t / t) "Dew point Dp" (rh / t / Dp) "Equilibrium wood moisture (rh / t / UGL) content, EMC"...
- Page 12 3.2 Material-Table Material index Material Cement screed in weight-% Anhydrite screed in weight-% Concrete in weight-% Cement mortar in weight-% Gypsum plaster in weight % Lime sand brick in weight-% Lime cement mortar in weight-% wood fibre insulation panels in weight-% Mineral wool insulation in weight-% Brick in weight-% Hardwood / Beech...
