Summary of Contents for GANN HYDROMETTE CH 17

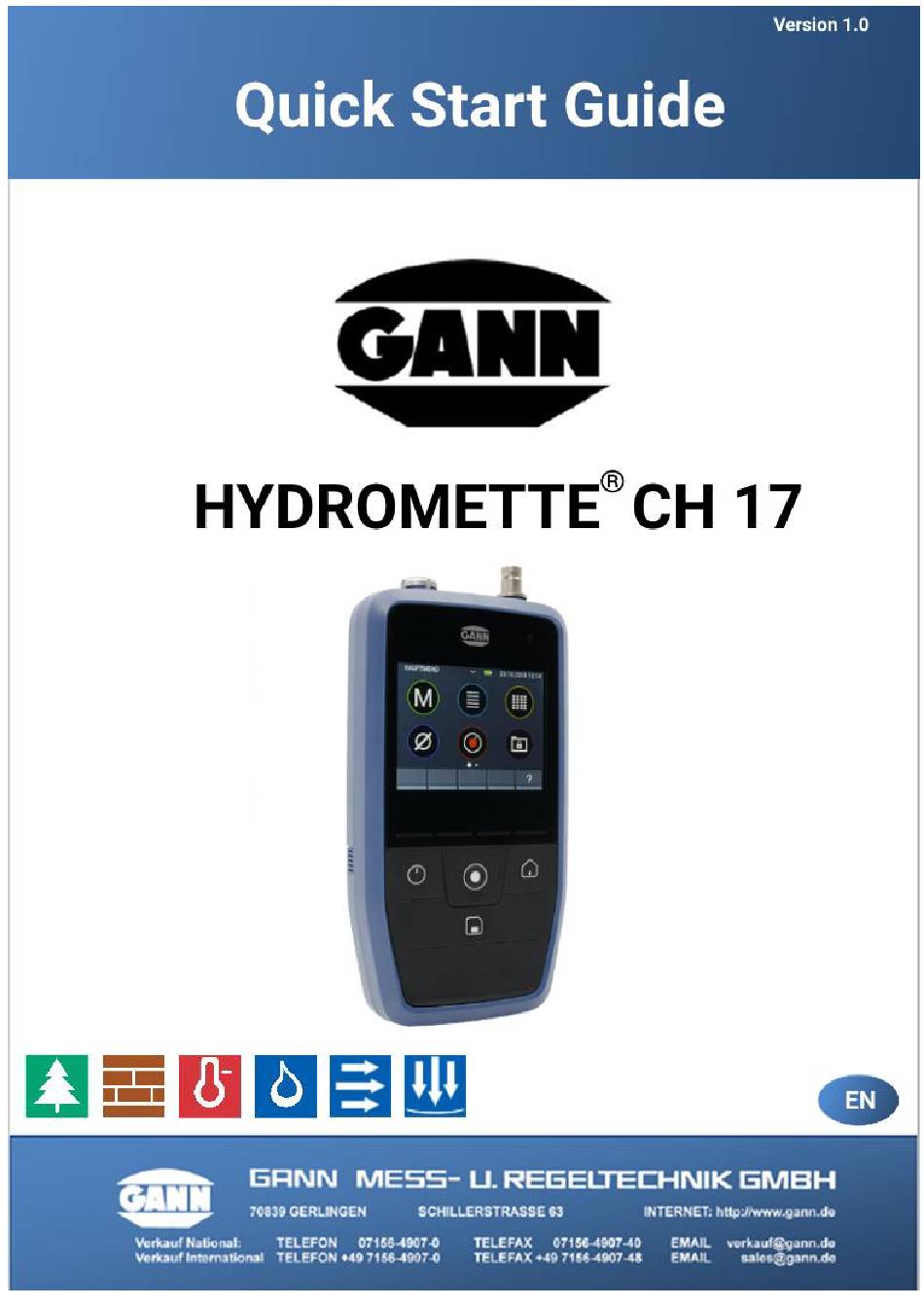

  • Page 1 [Input text]...
  • Page 2: Table Of Contents

    System requirements GANN Dialog Pro .................. 4 Prohibited Environmental Conditions ..................5 Transport & Storage Conditions ....................5 Warranty conditions ........................ 5 Device layout and button assignment ..................... 6 First start-up of the Hydromette CH 17 ..................8 ® Hydromette CH 17...
  • Page 3: Publication Statement

    Gann Mess- u. Regeltechnik GmbH. Subject to technical and documentary changes. All rights reserved. This document has been prepared with due care. Gann Mess- u. Regeltechnik GmbH shall not accept any liability for errors or omissions.
  • Page 4: General Notes

    0.3 General Notes This Quick Start Guide should be read before using the Hydromette CH 17 for the first time! The operating instructions must also be carefully read and observed. The operating manual is available for download as a PDF file at www.gann.de and can also be accessed in the GANN Dialog Pro software.
  • Page 5: Specifications

    CR2032 3 V lithium cell 1.2 System requirements GANN Dialog Pro The system requirements for the PC software GANN Dialog Pro are the following: Operating system Windows 7 / Windows 8 / Windows 10 2 GB free hard disk space...
  • Page 6: Prohibited Environmental Conditions

    1.4 Transport & Storage Conditions The Hydromette CH 17 may only be stored in the packaging that is provided by us or available from us as accessory. We shall not accept any liability or warranty for damage that may occur to the device or the sensor system as a result of non-compliance.
  • Page 7: Device Layout And Button Assignment

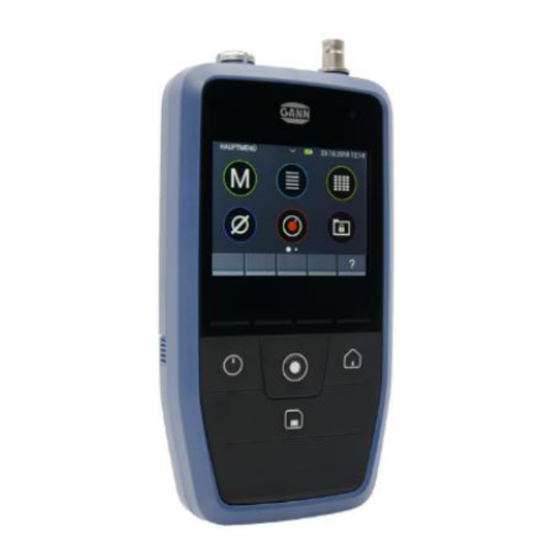

    On/off button Save button LED colours: Red: Error or warning Yellow: Device in standby or log mode Green: Battery OK when starting the device Blue: Data transfer Figure 2-1: Front view of the Hydromette CH 17 ® Hydromette CH 17...
  • Page 8 2.5 mm jack for TF Stick 3.5 mm jack for digital BL handles BNC socket for resistance measurement Figure 2-3: End face of the Hydromette CH 17 with sensor connectors Mini-USB port Figure 2-4: Mini-USB port on underside of Hydromette CH 17 ®...
  • Page 9: First Start-Up Of The Hydromette Ch 17

    Install the GANN Dialog Pro Software with the required device drivers before you connect the Hydromette CH 17 to your PC. Enter the following link in the browser address bar: Figure 3-1 displays the web page. Click on the "Install" button to download the GANN Dialog Pro software.
  • Page 10 The menu bar contains the submenu item "Check for Hydromette CH 17 Firmware Updates / Upgrades” under "Hydromette CH 17 Settings" which takes you to a list of known CH 17 devices. An entry of the connected Hydromette should be displayed here. Among other things, the device serial number, the installed firmware and the available firmware are listed here.
  • Page 11 Figure 3-6: Start update of the device firmware ® Hydromette CH 17...
  • Page 12 -Subject to technical changes- ® Hydromette CH 17...
