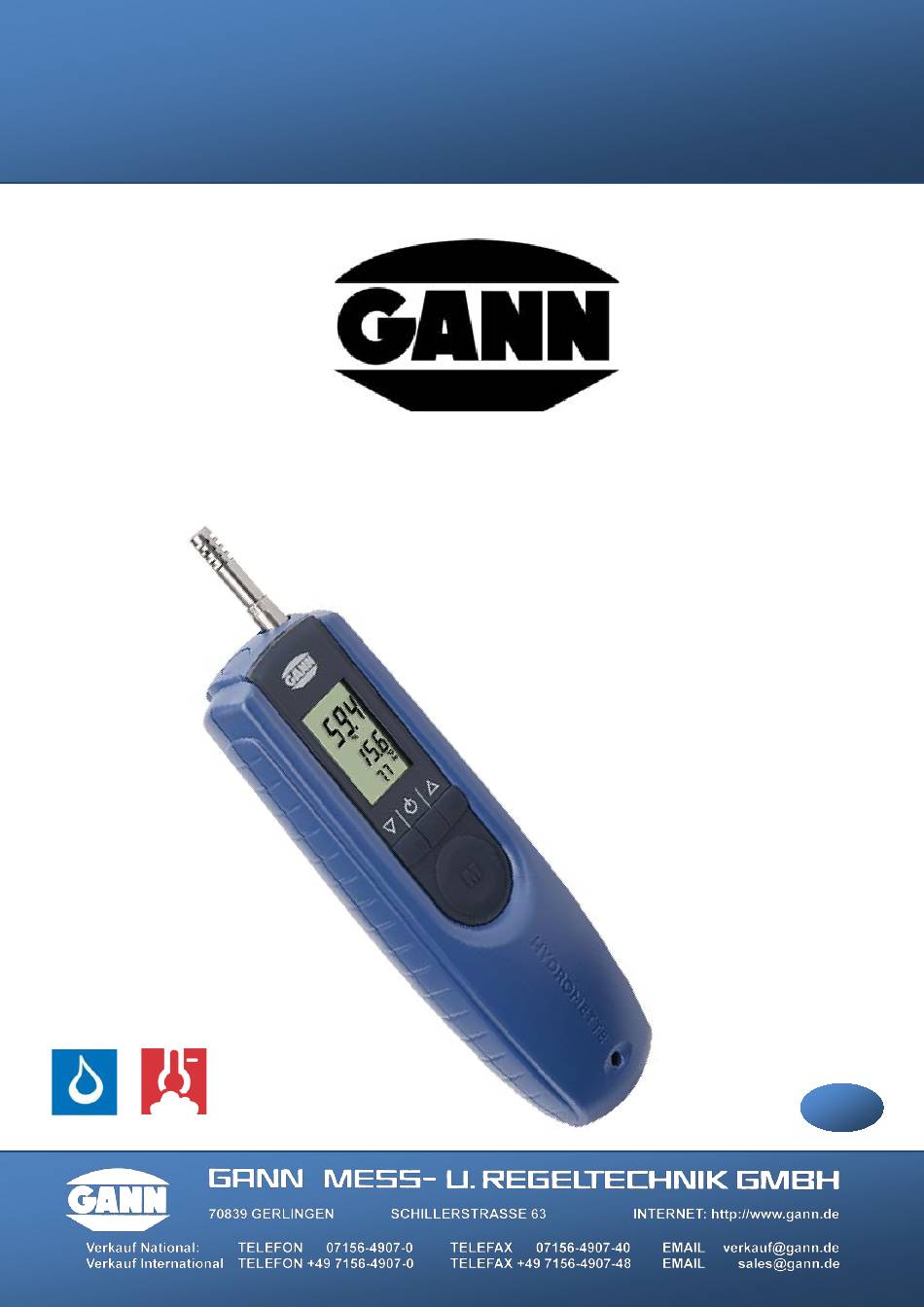

- Page 1 Operating Instructions Version 2.0 HYDROMETTE BL COMPACT TF 3 [Geben Sie Text ein]...
- Page 2 Disclaimer GANN Mess- u. Regeltechnik GmbH does not make any assurances or warranties with respect to this document and, to the extent permitted by law, limits its liability for breach of any implied warranty to the replacement of this document with another. Furthermore, GANN Mess- u. Regeltechnik GmbH reserves the right to revise this publication at any time without having to notify anyone about such revisions.
-
Page 3: Table Of Contents
Table of Contents Foreword ............................5 User Description ........................5 Intended Use ........................... 5 Non-Intended Use ........................5 Explanation of the General Warnings ..................6 General Safety Instructions ..................... 7 Persons a Risk ......................... 7 Preparation and Start-up ......................8 Use / Operation ........................ - Page 4 USB-Communication with a PC ..................... 27 Application Notes .......................... 28 General Notes on Humidity / Air Temperature Measurement ..........28 Using the Hydromette BL Compact TF 3 ................29 Precautions ........................... 30 Measuring relative Humidity ....................30 Equilibrium Wood Moisture Content (EMC) ................. 31 Measuring Air Temperature ....................
-
Page 5: Foreword
All local regulations must be observed. 1.2 Intended Use The Hydromette BL Compact TF 3 is a precise thermo-hygrometer for many areas of application such as the surveillance of residential spaces, air conditioning systems, print shops, warehouses, etc. The Hydromette BL Compact TF 3 may only be used for air humidity and air temperature measurements. -
Page 6: Explanation Of The General Warnings
1.4 Explanation of the General Warnings The following danger levels are used in this operating manual to indicate potentially dangerous situations and important safety instructions: Danger Level Description Danger / Indicates a hazardous situation which, if not avoided, will result in death or serious irreversible injuries. DANGER Warning / Indicates a hazardous situation which, if not avoided, could result in death or serious irreversible injuries. -
Page 7: General Safety Instructions
1.5 General Safety Instructions It must be ensured that the complete instructions and all safety instructions have been read and understood before using this device. All instructions must be followed. This prevents accidents that can result in property damage or minor or moderate injuries. -
Page 8: Preparation And Start-Up
Preparation and Start-up Never store or place the device in a location where it can fall or be drawn into water or other liquids. To avoid the risk of electric shock, never immerse the device in water or other liquids. Always remove all packaging before operating the device. -
Page 9: Care, Maintenance And Inspection
Caution, there is a risk of explosion if the wrong type of battery is inserted. Handle used batteries according to the manufacturer's instructions. Gann Mess- u. Regeltechnik GmbH accepts no liability for damage caused by non-compliance with the operating instructions or by violation of a duty to care during transport, storage or operation of the instrument, even if this duty to care is not specifically discussed in the operating instructions. -
Page 10: Specifications
2 Specifications 2.1 Technical Data Hydromette Display: LCD segment display with three lines Display resolution: 0.1 % for humidity 0.1 °C for temperature Response time: < 2 s Storage conditions: + 5 to + 40 °C - 10 to + 60 °C (for a short time) Operating conditions: 0 to + 50 °C - 10 to + 60 °C (for a short time) -
Page 11: Prohibited Environmental Conditions
Ambient temperatures continuously too low (< 0 °C) 2.4 Transport- & Storage Conditions The Hydromette BL Compact TF 3 may only be stored in the packaging provided by the manufacturer or available from the manufacturer as an accessory. The manufacturer shall not accept any liability or warranty for damage that may occur to the device or to the sensor system as a result of non-compliance. -
Page 12: General Information
Operational reliability and functionality are no longer ensured if the device is modified or adapted. Gann Mess- u. Regeltechnik GmbH shall not be liable for any damage arising from such modifications or adaptations. The risk is borne solely by the user. -
Page 13: Description Of The Product
GANN Dialog Pro PC software. The Hydromette BL Compact TF 3 is supplied with the TF stick 16 K-25 as standard. Other TF sticks for special requirements with different filter types are available as option (see accessories). -
Page 14: Device Layout And Button Assignment
5 Device Layout and Button Assignment Sensor (TF-Stick) LCD-segment display Up button On / Off button Down button Measure button ("M" button) Mini-USB port Figure 5-1: View of the Hydromette BL Compact TF 3 ® Hydromette BL Compact TF 3 Version 2.0... -
Page 15: Display Symbols
5.1 Display Symbols Main Menu Symbols Relative humidity in r.H.% "Hold" symbol Temperature in °C Display measuring mode Figure 5-2: Main menu symbols Other Symbols Symbols for minimum / maximum value display Battery level indicator Physical units depending on measuring mode Dew point symbol (Dp) and unit (°C) EMC symbol for wood... -
Page 16: Switching The Device On An Off
Switching the Device On an Off The device is switched on and off by pressing the "On / Off" button . The device starts in the measuring menu or main menu. The measuring process can be carried out here [see Chapter 5.3.1 "Measuring Menu (Main Menu)"]. -
Page 17: Setting Menus
5.3 Setting Menus The following menu items can be selected one after the other by repeatedly pressing the "Down" button: 1. Measuring Menu (main menu): The measuring process can be performed here. 2. Measuring mode selection: The different measuring modes can be set here. 3. -
Page 18: Measuring Mode Selection
Measuring Mode Selection Press Down button once Measuring menu The measurement mode selection can be made in this menu. Various setting modes are available. The selected mode changes the display of the measuring menu. Depending on the mode, the appropriate physical dimension is also displayed. In detail, these are: Measuring mode Measuring mode display "Relative humidity"... - Page 19 Measuring mode "relative humidity, rh" (rh / t / rh): relative humidity (in r.H.%), the air temperature (in °C) and the measuring mode symbol "rh" are displayed. Figure 5-8: Measuring Figure 5-9: Measuring menu mode selection "relative "relative humidity, rh" humidity, rh"...
- Page 20 Measuring mode "Dew point, Dp" (rh / t / dP): The relative humidity (in R.H. %), the air temperature (in °C) and the dew point temperature (Dp in °C) are displayed. dew point table in the appendix. Figure 5-13: Measuring Figure 5-12: Measuring mode menu "Dew point, Dp"...
-
Page 21: Maximum Value Display
Maximum Value Display Measuring menu Press Down button twice The highest measured value of a measurement series is displayed together with the "Max" display symbol. A dash at the position of the measured value indicates that there is no maximum value (yet). If an existing maximum value should be deleted, the displayed value must be selected by briefly (<... -
Page 22: Minimum Value Display
Minimum Value Display Press Down button 3 times Measuring menu The lowest measured value of a measurement series is displayed together with the “Min" display symbol. A dash at the position of the measured value indicates that there is no minimum value (yet). If an existing minimum value should be deleted, the displayed value must be selected by briefly (<... -
Page 23: Memory Menu
Memory Menu Press Down button 4 times Measuring menu The ring memory symbol "o" and the corresponding memory location number are displayed. As soon as you select the memory menu, the memory location number "o1" is displayed for approx. 1 second, and then the last measured saved value contained there is displayed. -
Page 24: Other Functions
6 Other Functions 6.1 Automatic Switch-Off If no button is pressed within approx. 90 seconds, the device switches off automatically. The current values are retained and are displayed again after the device is switched on again. 6.2 Battery Monitoring If the battery symbol is shown in the display, the battery is dead and must be replaced. -
Page 25: Installation Of The Pc-Software Gann Dialog Pro
Minimum screen resolution 1280 x 800 (1920 x 1080 is recommended) Internet connection for software downloads, updates and upgrades The PC software GANN Dialog Pro is available for download free of charge at the following link: http://download-ota.gann.de/dlg Detail information about the PC software GANN Dialog Pro can be found in the associated user manual. - Page 26 Check for a BL Compact RH-T firmware update! Check for a BL Compact TF 3 firmware update! Install the Hydromette BL Compact TF 3 Drivers BL Compact TF 3 Drivers BL Compact TF 3 Workspace Figure_7_2: Download device drivers of the Hydromette BL Compact TF 3 To download the device drivers, the working range of the desired Hydromette must first be selected in the menu item "Select working range".
-
Page 27: Usb-Communication With A Pc
Figure 7_2) If the Hydromette BL Compact TF 3 is connected to a PC with Windows operating system when it is switched off, the Hydromette starts in USB mode. No measurements can be performed during the communication with the PC. The GANN Dialog Pro software now provides the possibility to update the firmware of the Hydromette BL Compact TF 3 via the Internet. -
Page 28: Application Notes
9 Application Notes 9.1 General Notes on Humidity / Air Temperature Measurement Humidity, also known as air humidity, is the water vapour content of the air. Like any other substance, air only has a limited capacity to absorb water. This limit is known as the saturation limit. Above the saturation point, the excess water content accumulates in the form of very fine water droplets (condensate). -
Page 29: Using The Hydromette Bl Compact Tf 3
9.2 Using the Hydromette BL Compact TF 3 Measure: Press and hold the "M" button for longer than 2 seconds. A measurement process is carried out as long as the Measure button is kept pressed. After releasing the "M" button, the measurement process is interrupted and the "Hold"... -
Page 30: Precautions
Precautions The sensor can be irreparably damaged by various mechanical or environmental influences. These include in particular: direct contact of the sensor with the fingers direct contact with solid or sticky materials or objects measurement in environments containing solvents, oil vapours or other high levels of contaminants storing the sensor in foam materials NOT provided by us 9.3 Measuring relative Humidity... -
Page 31: Equilibrium Wood Moisture Content (Emc)
9.4 Equilibrium Wood Moisture Content (EMC) Equilibrium wood moisture content is the moisture content adopted by the wood when it is exposed to constant climate (constant humidity and constant temperature) for sufficiently long time. The device can simultaneously display relative humidity, temperature, and equilibrium wood moisture content. -
Page 32: Accessories
10 Accessories TF-Stick 16 K 25 – without filter - (order-no. 31003262) Humidity: 0 to 100 % R.H. 10 to 90 % R.H. (± 1.8% R.H.)* Temperature: -20 to +80 °C 0 to +60 °C (± 0.2 °C)* TF-Stick 16 K 25 M – with metal filter- (order-no. 31003264) Humidity: 0 to 100 % R.H. -
Page 33: Appendix
11 Appendix 11.1 Equilibrium Wood Moisture Wood Moisture Equilibrium Air temperature in °C 10 °C 15 °C 20 °C 25 °C 30 °C Relative air humidity Wood moisture content 4.70% 4.70% 4.60% 4.40% 4.30% 6.30% 6.20% 6.10% 6.00% 5.90% 7.90% 7.80% 7.70% 7.50%... -
Page 34: Dew Point Table
11.2 Dew Point Table Air- Dew point temperature in °C at a relative humidity Saturation temperature moisture = 30 % 40 % 50 % 60 % 70 % 80 % 90 % °C amount of water °C °C °C °C °C °C °C... -
Page 35: Comparison Graph Of Humidity - Material Moisture Content
11.3 Comparison Graph of Humidity – Material Moisture Content Relative humidity in % hputz % Moist Moist Normal Normal Wood moisture content Wood moisture content (Softwood) % (Softwood) % Mixed plaster % Mixed plaster % Gypsum plaster % Fungus attack Outside moisture range Normal room moisture Central heated room... -
Page 36: References
11.4 References We would like to specifically draw your attention to the fact that the literature mentioned is only an extract and is not complete. The individual titles must also be viewed with regard to the respective usage case. Trocknungstechnik, Erster Band, Springer-Verlag, Berlin, ISBN: 3-540-08280-8 Wassertransport durch Diffusion in Feststoffen, H. -
Page 37: Eu Declaration Of Conformity
EU Declaration of Conformity Document no. / order no.: 30019830 HYDROMETTE BL Compact TF 3 Product identifier: We declare that the hand-held meter and related accessory correspond with the protection requirements and if used according to their intended purpose, comply with the requirements of the directives: ☒...
