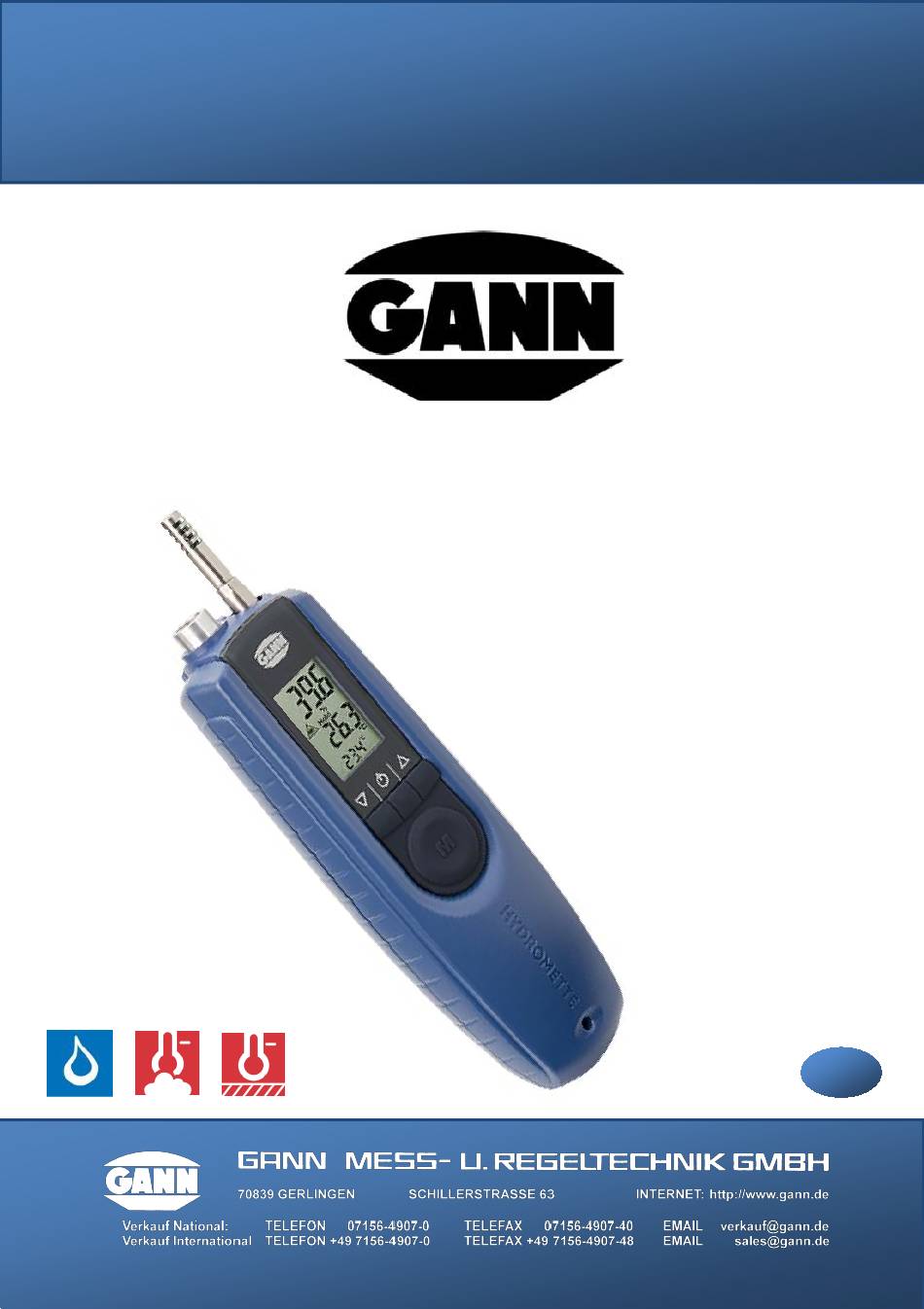

- Page 1 Quick Start Guide Version 2.0 HYDROMETTE BL COMPACT TF-IR 2 Hydromette BL Compact TF...
- Page 2 Neither GANN Mess- u. Regeltechnik GmbH nor any of its partner or subsidiary companies can be made responsible or liable in the event of misuse of the information contained in this document.
-
Page 3: Table Of Contents
Switching the Device On and Off ........8 Setting Menus ..............9 2.3.1 Measuring Menu (Main Menu) ........ 10 2.3.2 Measuring Mode Selection ........11 Appendix ................12 Measuring Mode Table ............ 12 Hydromette BL Compact TF-IR 2 Version 2.0... -
Page 4: Foreword
1 Foreword This quick start guide contains an overview of the most important functions of the Hydromette BL Compact TF-IR 2. It only contains parts of the legal and safety-relevant information and has been abridged for better readability. A complete digital version of the operating instructions is available on our homepage in the download area (in English: pdf. -
Page 5: Explanation Of The General Warnings
CAUTION Indicates important information. INFORMATION 1.2 Specific Warnings The Hydromette BL Compact TF-IR 2 uses a laser in laser class 2 according to IEC 60825-1. People can be blinded by the laser. The laser CAUTION must never be directed at people or animals. -
Page 6: Device Layout And Button Assignment
2 Device Layout and Button Assignment Sensor (TF-Stick) Laser-pointer IR-sensor LCD-segment display Up button On / Off button Down button Measure button ("M" button) Mini-USB port Figure 2-1: View of the Hydromette BL Compact TF-IR 2 Version 2.0 Hydromette BL Compact TF-IR 2... -
Page 7: Display Symbols
Figure 2-2: Main menu symbols Symbols for minimum / maximum value display Battery level indicator Laser symbol Unit of absolute humidity EM-factor (g/cm³) symbol Dew point EMC symbol symbol (Dp) Figure 2-3: Other symbols and unit (°C) Hydromette BL Compact TF-IR 2 Version 2.0... -
Page 8: Switching The Device On And Off
If the TF-stick is not (correctly) inserted, the display "InP SEn" is shown when the measuring button is pressed and held down for a long time (> 2 seconds)! Figure 2-5: Error message, TF-Stick not detected Version 2.0 Hydromette BL Compact TF-IR 2... -
Page 9: Setting Menus
6. Memory menu: The last 5 measured values are stored here. The oldest value is overwritten after each measurement. The menu items are selected in reverse order by pressing the "Up" button. Hydromette BL Compact TF-IR 2 Version 2.0... -
Page 10: Measuring Menu (Main Menu)
"M" button must be pressed briefly (< 1 second). If the value should not be saved, a new measurement can be started by pressing and holding (> 2 seconds) the "M" button without changing the previous minimum value. Version 2.0 Hydromette BL Compact TF-IR 2... -
Page 11: Measuring Mode Selection
2.3.2 Measuring Mode Selection Die Hydromette BL Compact TF-IR 2 has 7 different setting modes (see measuring mode table). The selected mode changes the display of the measuring menu. Depending on the mode, the appropriate physical dimension is also displayed. The measuring mode selection is designed as a ring menu. -
Page 12: Appendix
(rh / t / t) "Dew point Dp" (rh / t / Dp) "Equilibrium wood moisture (rh / t / UGL) content, EMC" "Absolute humidity" (rh / Ah) - Subject to technical changes- Status: September 2024 Version 2.0 Hydromette BL Compact TF-IR 2...
