BATTERY REPLACEMENT INSTRUCTIONS

Caution: Must wear gloves and flat blade screwdriver is needed during new battery replacement.

Removing the Battery:

1. Disconnect Power: Unplug the unit from the AC power source.
2. Access Battery: Use flat blade screwdriver insert the two slots and make rotation then remove front cover
form back plate. (See Fig.1), afterwards locate the battery compartment.
3. Disconnect Battery: Carefully disconnect the battery terminal and heater terminal, ensuring proper polarity.
4. Removing battery: Carefully remove the battery pack assembly from the tension spring clips. (See Fig. 7)

Installing the New Battery:

1. Prepare Battery: Ensure the new battery pack assembly correspond with the model number described
for this device.
2. Assemble Battery: Carefully put the new battery pack assembly into the tension spring clips. (See Fig. 8)
3. Connect Battery: Connect the battery terminal and heater terminal to the corresponding connectors.
4. Reassemble Unit: Close the unit's case and reconnect the AC power source.

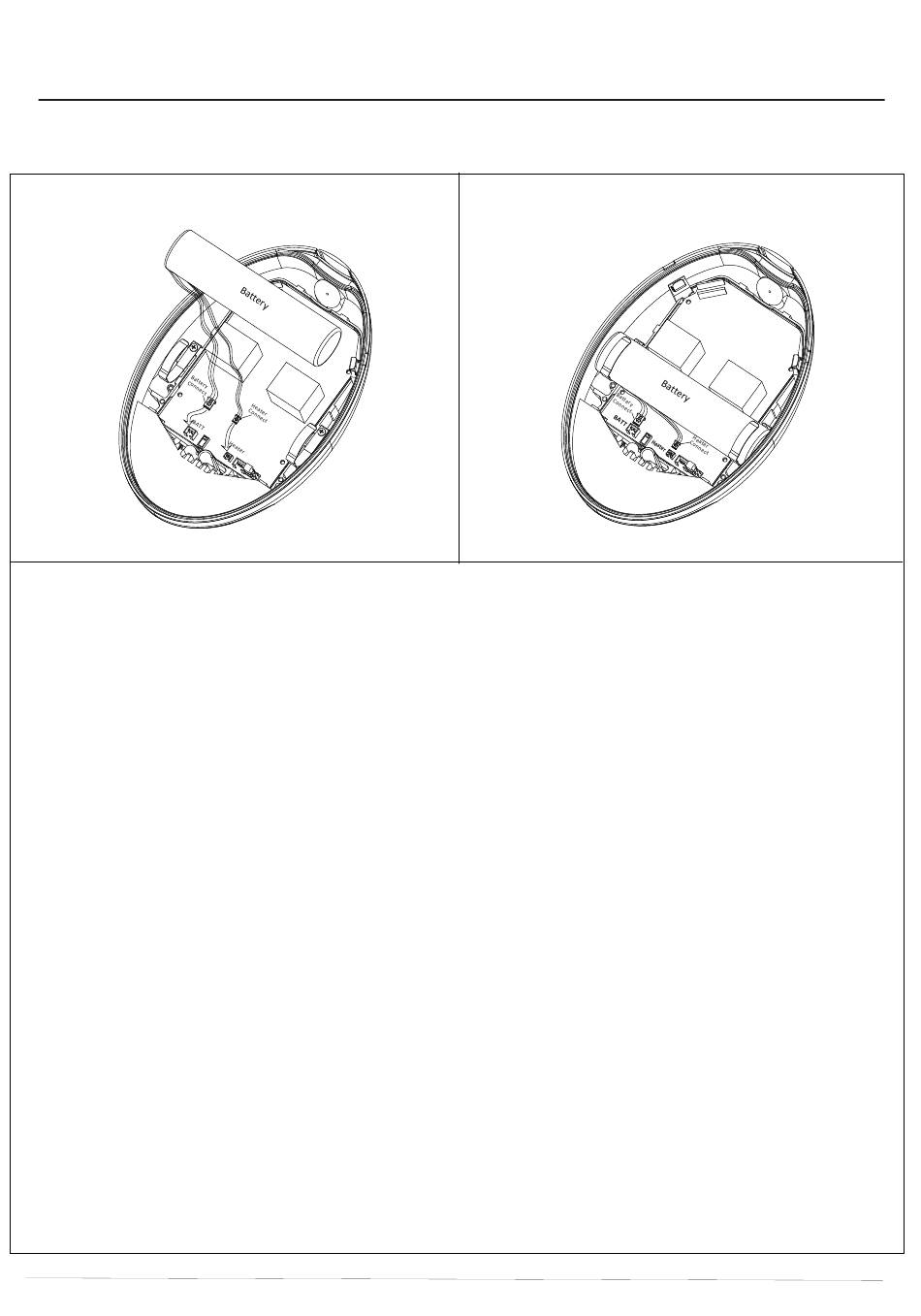

Fig. 7
