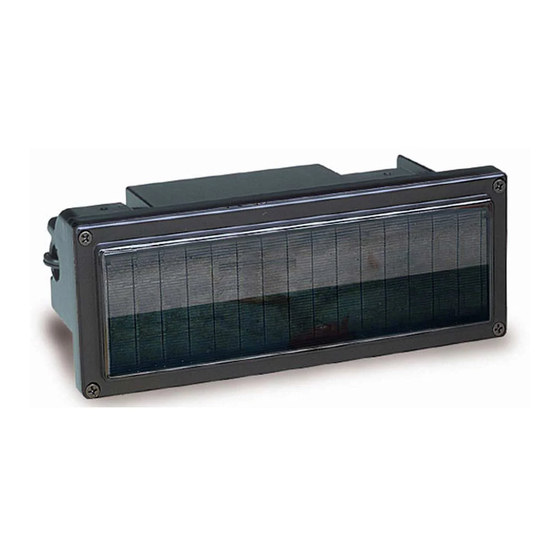

SIGNIFY Hadco RSC2 Installation Instructions

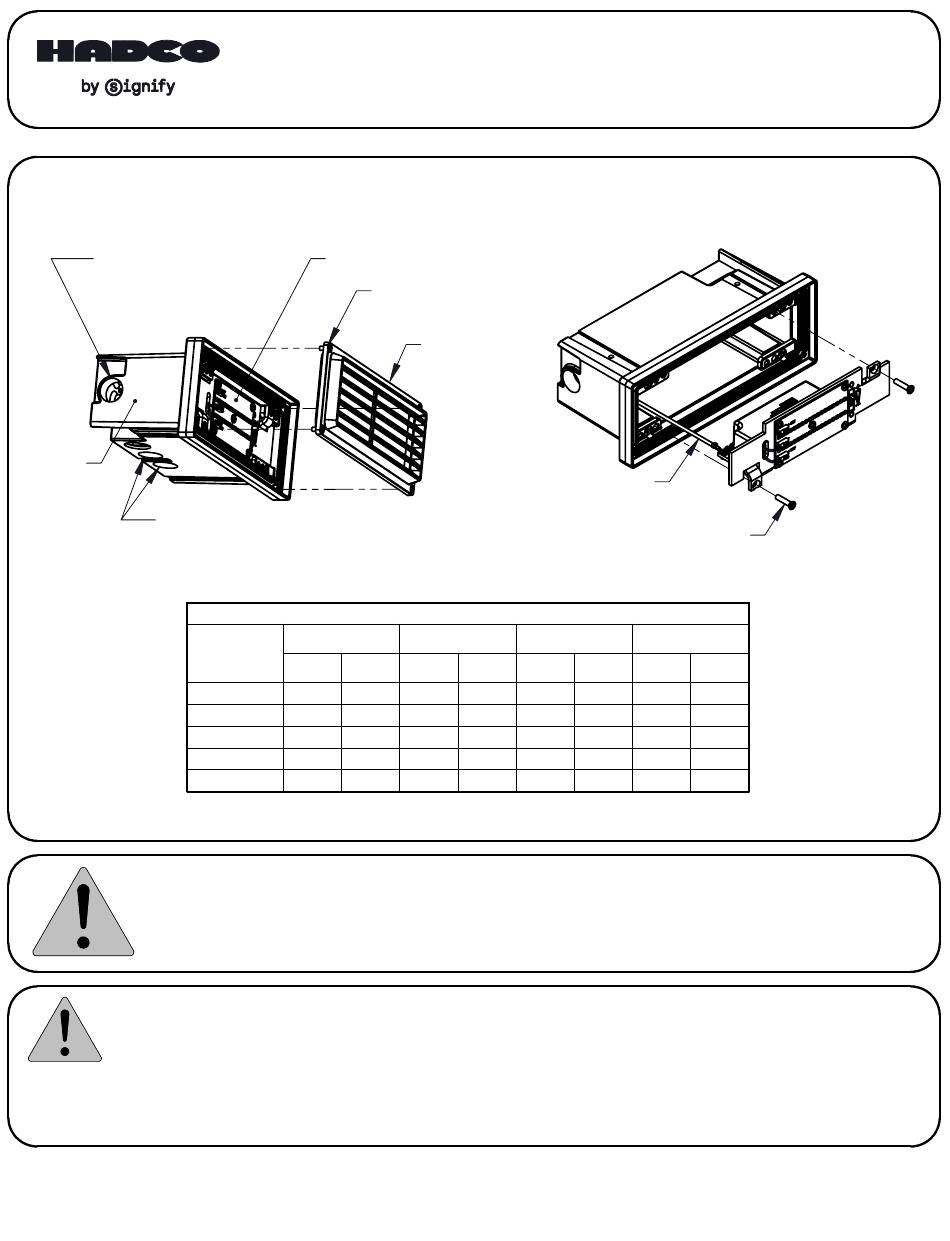

Figure 1:
1/2-14 NPT
Side Conduit Entries
(2 places)
Housing
Plug bottom conduit entries
(2 places)
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the driver and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. SAVE THESE INSTRUCTIONS for future reference.

SAFETY WARNING:

ALWAYS TURN FIXTURE OFF/DISCONNECT POWER AND ALLOW TO COOL BEFORE
PERFORMING ANY MAINTENANCE, INCLUDING CLEANING!
To help prevent premature failure, decreased performance, overheating and risk of fire, keep fixture and lens
clean and free of leaves, mulch, debris and mineral deposits from water. The fixture and lens can be cleaned using
a soft cloth and a solution of mild liquid soap and warm water. Wipe clean and dry with a soft, lint-free dry cloth.
Avoid polishing fixture or lens.
32001290, revision K
Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873
Telephone 855-486-2216
Signify Canada Ltd.
281 Hillmount Road,
Markham, ON, Canada L6C 2S3
Telephone 800-668-9008
LED Module
RSC2
Switch
Output
Warm** Cool
Settings
(3000K) (4000K)
9.2W (5)* 179 175
8.0W (4) 158 154
6.2W (3) 122 119
4.4W (2) 85 83
2.7W (1) 46 45
*Factory pre-set switch level.
** Factory default CCT level.
INSTALLATION INSTRUCTIONS:
Figure 2:
Loosen 4 screws to
remove faceplate.
Faceplate
Attached Ground Wire
*DO NOT REMOVE*
Lumen Output Table
RSF2
Warm** Cool Warm**
(3000K) (4000K) (3000K)
85 86 427
75 76 376
58 58 290
40 41 203
22 22 110
LED STEPLYTE
Loosen 2 screws to
remove LED module.
RSS2 RSV2
Cool Warm** Cool
(4000K) (3000K) (4000K)
435 153 156
383 135 137
296 104 106
206 73 74
112 39 40
page 1 of 2
