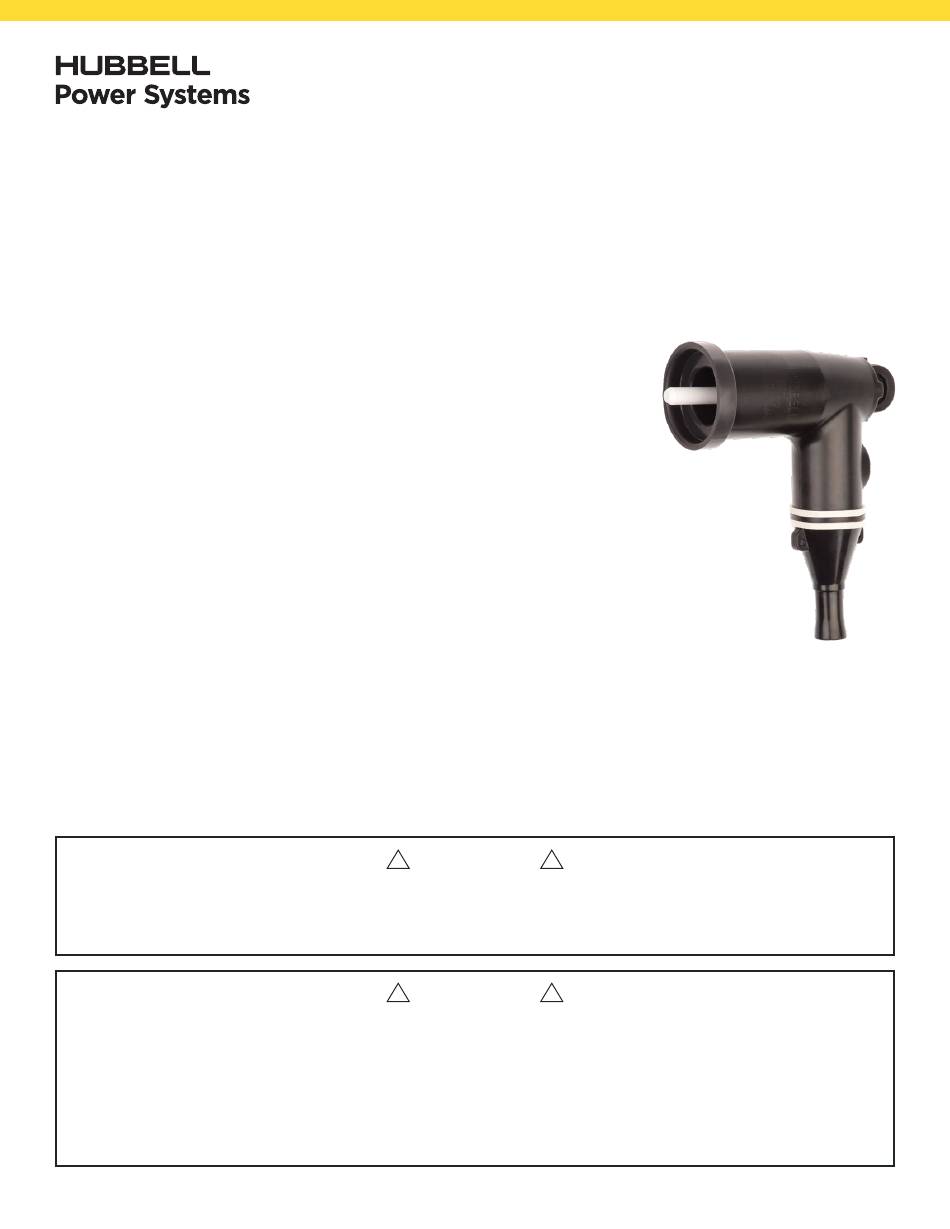

Hubbell IS200LE Installation & Operating Instructions

IS200LE - Loadbreak Elbows
200A, 15kV, 25/28kV & 35kV Small Interface (Interface 7B)
Description
Hubbell Loadbreak Elbows are designed to terminate underground cables
and provide a plug-in connection to transformers, switches, and sectionalizing
cabinets. Hubbell Loadbreak Elbows mate with the matching class of loadbreak
interfaces and meet the requirements of IEEE Standard 386 - latest revision.
• 15 kV class: 200A 8.3 kV and 8.3/ 14.4 kV
• 28 kV class: 200A 16.2 kV and 16.2/28.0 kV
• 35 kV class: 200A 21.1 kV and 21.1/36.6 kV
Installation Tools
• Insulating Hotstick
• Crimp Tools & Dies
• Hand Tools
NOTES
• Check contents of box to ensure that it is complete and components are
NOT damaged.
• A shield adaptor may be required for certain power cables.
Important: Read these instructions thoroughly before operating the system. Be sure that the connectors are rated for
their intended energized use. (See Hubbell catalog for selecting the correct mating product.) For additional information,
reference Guide for Preparation Techniques of Extruded Dielectric, Shielded Cables Rated 2.5 kV through 46 kV and the
Installation of Mating Accessories, Guide for the Application of Separable Insulated Connectors.
The equipment covered by these instructions should be installed, operated and serviced only by competent
personnel familiar with safety practices. This instruction is written for such personnel and is not intended as a
substitute for adequate training and experience in safe procedures for this type of equipment. Improper handling can
result in death or serious injury, as well as equipment damage.
Optional Capacitive Test Point- When making voltage measurements, the area of and around the voltage test point
must be dry and free of contaminants. The voltage test point is not intended for actual voltage measurements or
phasing operations and has no direct connection to the conductor. It uses an impedance capacitance tap and only
voltage indicating instruments designed for this application to establish the presence of voltage should be used.
A voltage reading will indicate the presence of voltage, but a reading of no voltage is not sufficient to establish a
de-energized circuit before touching the connector. Other procedures should be implemented to establish a
de-energized circuit.
Failure to comply could result in death or severe personal injury.
Contents of Package
(1) Elbow Housing
(1) Lubricant (DO NOT
(1) Compression
Connector
(1) Instruction Sheet
(1) Probe
(1) Probe Assembly
DANGER
!
DANGER
!
I N S TA L L AT I O N & O P E R AT I N G I N S T R U C T I O N S
SUBSTITUTE)
Wrench
!
!
15kV elbow used as
model for instruction
sheet figures
IS200LE
