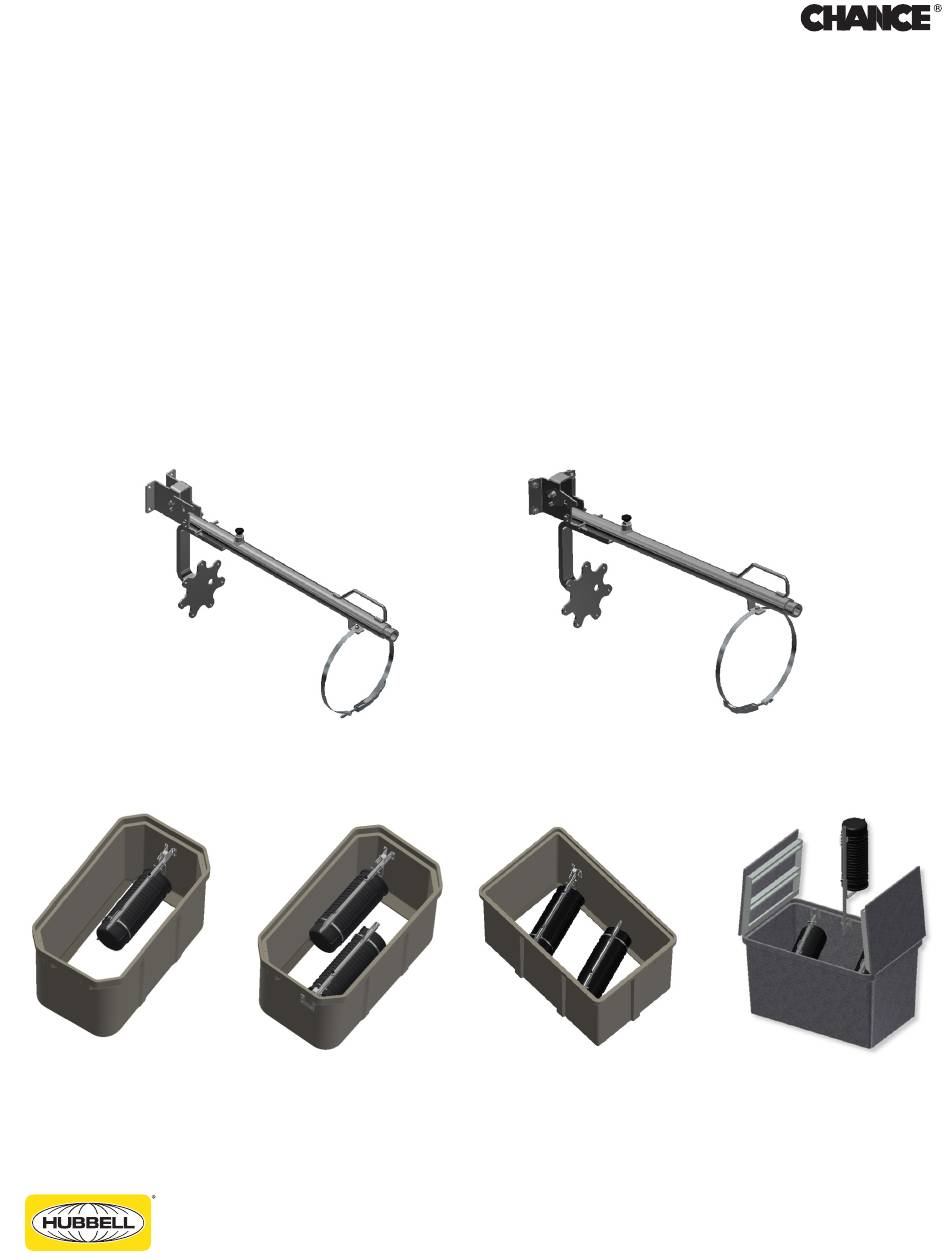

PSC2080579 SWINGARM (END MOUNT)
PSC2060260 SWINGARM (SIDE MOUNT)
INSTRUCTIONS
Product Intended Use:
These instructions are intended to illustrate the installation and operation of the Hubbell
Power Systems, Inc. ("Hubbell") PSC2080579 and PSC2060260 swingarm into a suitable
Hubbell vault. This swingarm was designed to be compatible with the Corning LCPe clo-
sure and is independent from Corning Inc.

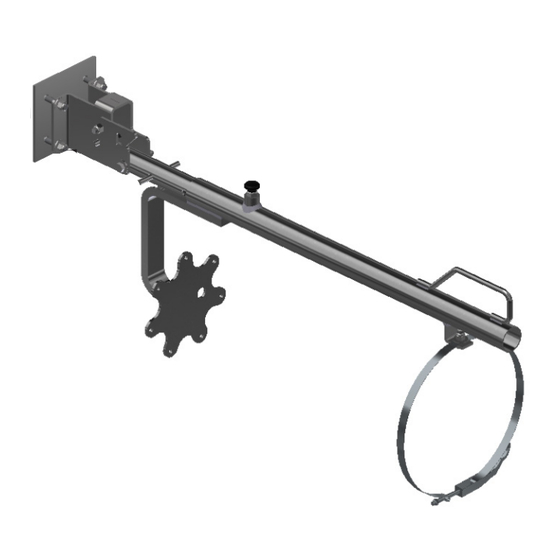

PSC2080579 (END MOUNT)
Single End Mount
shown in PG3060
Hubbell vault
Dual End Mount
shown in PG3060
Hubbell vault
PSC2060260 (SIDE MOUNT)
Dual Side Mount
shown in PG3660
Hubbell vault
PSC2080579 & PSC2060260 Swingarm
Triple Side Mount
shown in 36x60
Hubbell Torsion Assist
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hubbell PSC2080579
Summary of Contents for Hubbell PSC2080579
- Page 1 These instructions are intended to illustrate the installation and operation of the Hubbell Power Systems, Inc. (“Hubbell”) PSC2080579 and PSC2060260 swingarm into a suitable Hubbell vault. This swingarm was designed to be compatible with the Corning LCPe clo- sure and is independent from Corning Inc.
- Page 2 TABLE OF CONTENTS PAGE NO. Introduction Table of Contents Guide To Warnings Product Information & Pre-Installation Instructions Product Installation & Use Instructions 5 - 10 PSC2080579 & PSC2060260 Swingarm...
- Page 3 Should additional information or details be desired or if situations arise which are not covered adequately for the user’s purpose, the specifics should be referred to Hubbell Power Systems, Inc. NOTICE Before operating the Corning LCPe Swingarm, thoroughly read, understand and follow these instructions.
-
Page 4: Product Information
Stainless Steel Strap PRE-INSTALLATION INSTRUCTIONS When installing the swingarm in a Hubbell vault that is operational in the field, remove the dirt from the outside of the vault in the desired swingarm mounting location. Ensure vault is not damaged in the dirt removal process. - Page 5 Disassemble the mounting bracket from the inner tube assembly as shown below in FIGURE 1 (optional) Inner Tube Mounting Bracket (shown - PSC2080579 End Mount) FIGURE 1 PSC2080579 (END MOUNT): For single swingarm: Mark the centerline of the top mounting holes 6.5” from the lid lip as shown in FIGURE 2.
- Page 6 Use the mounting bracket as a template to mark (4) hole locations per swingarm mount (see FIGURE 5 and FIGURE 6) FIGURE 5 FIGURE 6 PSC2080579 PSC2060260 (END MOUNT) (SIDE MOUNT) Drill four ø7/16” holes per the layout given in. FIGURE 5 and FIGURE 6. PSC2080579 & PSC2060260 Swingarm...
-
Page 7: Backing Plate
Round Washer Lock Washer Hex Nut FIGURE 7 (shown - PSC2080579 End Mount) Torsion assist cover i. Place heads of (4) 3/8” x 1” carriage bolts into the slots of the desired swingarm location of the vault torsion cover ii. Install round washer and hex lock nut Carriage Bolt (3/8”x1”) - Page 8 (see FIGURE 9) Outer Tube Stainless Steel Strap FIGURE 9 Install Corning LCPe (purchased separately) onto swingarm per manufacturer’s recommended installation procedure. Mounting hardware provided with Corning LCPe closure (see FIGURE 10) FIGURE 10 PSC2080579 & PSC2060260 Swingarm...
-
Page 9: Retracted Position
FIGURE 12 FIGURE 11 Extended position Retracted position (shown - PSC2080579 End Mount) (shown - PSC2080579 End Mount) CAUTION When Lowering the swingarm into the vault ensure the fiber cable is coiled as shown in Figure 13 to ensure the minimum bend radius is not violated and to prevent damage to the cables and/or closure. - Page 10 These instructions do not claim to cover all details or variations in equipment nor to provide for all possible conditions to be met with concerning installation, operation, or maintenance of this equipment. If further information is desired or if particular problems are encountered which are not sufficiently covered in this guide, contact Hubbell Power Systems. PSC2080579 & PSC2060260 Swingarm...
