Hubbell Killark UGFI Series Installation, Operation & Maintenance Data Sheet

INSTALLATION, OPERATION &
MAINTENANCE DATA SHEET
UGFI SERIES FACTORY-SEALED, GFCI RECEPTACLE
For use in Class I, Groups B*, C & D; Class II,
Groups F & G;
Class III Hazardous Locations and NEMA 3 Raintight **
* Group B locations require conduit seals within
6" of the enclosure
** Groups F, G and Raintight only if receptacle installed
in a vertical position (see below).

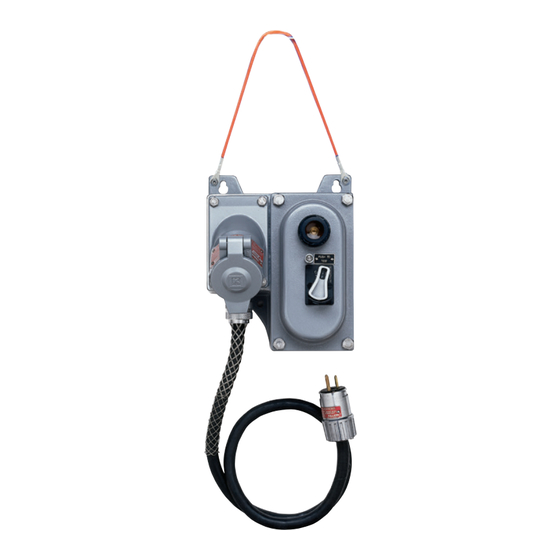

UGFI SERIES FACTORY-SEALED, GFCI
RECEPTACLE
CAUTION:
Before installing, make sure you are compliant with area classifications, failure to do so may result in bodily injury,
death and property damage. Do not attempt installation until you are familiar with the following procedures. All
installation must comply with the applicable Electrical Code.
Make sure that the circuit is de-energized before starting installation or maintenance.
Verify that the installation is grounded. Failure to ground will create electrical shock hazards, which can cause
serious injury and or death.
IMPORTANT:
Please read these instructions carefully before installing or maintaining this equipment. Good electrical
practices should be followed at all times and this data should be used as a guide only.
Technical information, advice and recommendations contained in these documents is based upon information
that Killark believes to be reliable. All the information and advice contained in these documents is intended for
use only by persons having been trained and possessing the requisite skill and know-how and to be used by
such persons only at their own discretion and risk. The nature of these instructions is informative only and does
not cover all of the details, variations or combinations in which this equipment may be used, its storage, delivery,
installation, check out, safe operation and maintenance. Since conditions of use of the product are outside of the
care, custody and control of Killark, the purchaser should determine the suitability of the product for his intended
use, and assumes all risk and liability whatsoever in connection therewith.
3940 Dr. Martin Luther King Drive
St. Louis, MO 63113
P/N 00912158 FORM NO. K1183 07/12 ECO-7-021-12 Page 1 of 3
