INSTALLATION, OPERATION &
MAINTENANCE DATA SHEET

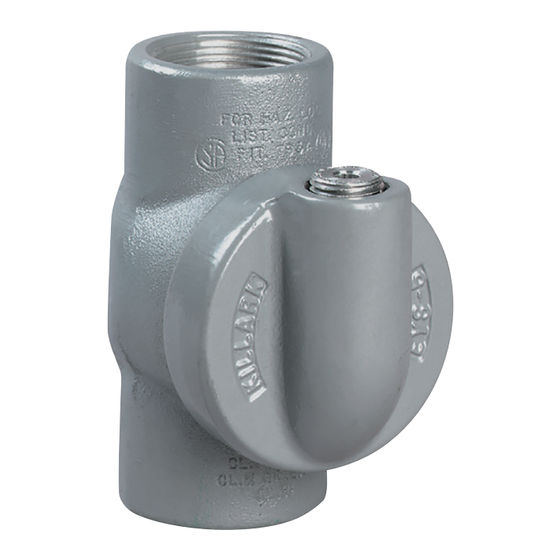

Type EYS Sealing Fittings for
Hazardous Locations
TYPE EYS SEALING FITTINGS FOR
HAZARDOUS LOCATIONS
CAUTION:
Before installing, make sure you are compliant with area classifications, failure to do so may result in bodily injury,
death and property damage. Do not attempt installation until you are familiar with the following procedures. All
installation must comply with the applicable Electrical Code.
Make sure that the circuit is de-energized before starting installation or maintenance.
Verify that the installation is grounded. Failure to ground will create electrical shock hazards, which can cause
serious injury and or death.
Technical information, advice and recommendations contained in these documents is based upon information
that Killark believes to be reliable. All the information and advice contained in these documents is intended for
use only by persons having been trained and possessing the requisite skill and know-how and to be used by
such persons only at their own discretion and risk. The nature of these instructions is informative only and does
not cover all of the details, variations or combinations in which this equipment may be used, its storage, delivery,
installation, check out, safe operation and maintenance. Since conditions of use of the product are outside of the
care, custody and control of Killark, the purchaser should determine the suitability of the product for his intended
use, and assumes all risk and liability whatsoever in connection therewith.
3940 Dr. Martin Luther King Drive
St. Louis, MO 63113
P/N 00911851 FORM NO. K0602 R03/04 ECO 8-030-017
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Hubbell KILLARK EYS
Summary of Contents for Hubbell KILLARK EYS
- Page 1 INSTALLATION, OPERATION & MAINTENANCE DATA SHEET Type EYS Sealing Fittings for Hazardous Locations TYPE EYS SEALING FITTINGS FOR HAZARDOUS LOCATIONS CAUTION: Before installing, make sure you are compliant with area classifications, failure to do so may result in bodily injury, death and property damage.
- Page 2 1. DIRECTIONS FOR INSTALLATION Seals are installed in conduit runs to minimize the passage of gases, vapours or flames from one portion of the electrical installation to another through the conduit; also, to prevent pre-compression or “pressure-piling” of vapours or gases in conduit systems.
- Page 3 CHART A Conduit Killark Approx. Fluid Suitable for Hazardous Locations Size Cat. No. Ounces ¾” EYS-2 Cl. 1, Gr. C&D, Cl. 2, Gr. EFG 1” EYS-3 Cl. 1, Gr. C&D, Cl. 2, Gr. EFG 1 ¼” EYS-4 Cl. 1, Gr. C&D, Cl. 2, Gr. EFG 1-½”...
