CHANCE® NYLON STRAP HOISTS
Operating & Servicing Instructions:

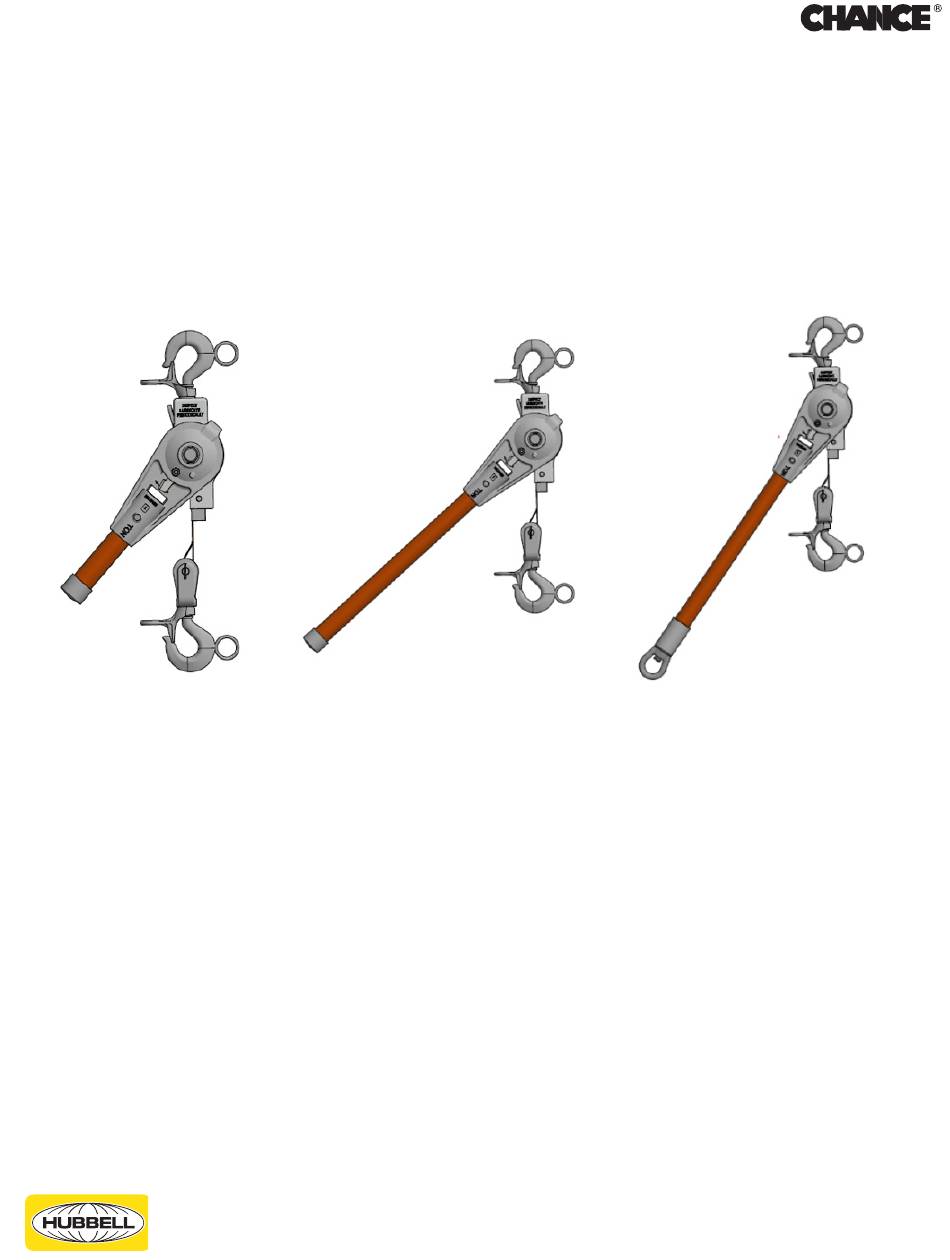

¼ ton (500 lbs. / 227 kg) Nylon Strap Hoist (Cat. No. PSC3090323CE)
1 ton (2000 lbs. / 907 kg) Nylon Strap Hoist (Cat. No. PSC3090323)
1 ton (2000 lbs. / 907 kg) Nylon Strap Hoist with Hot Stick Handle (Cat. No. PSC3090467)

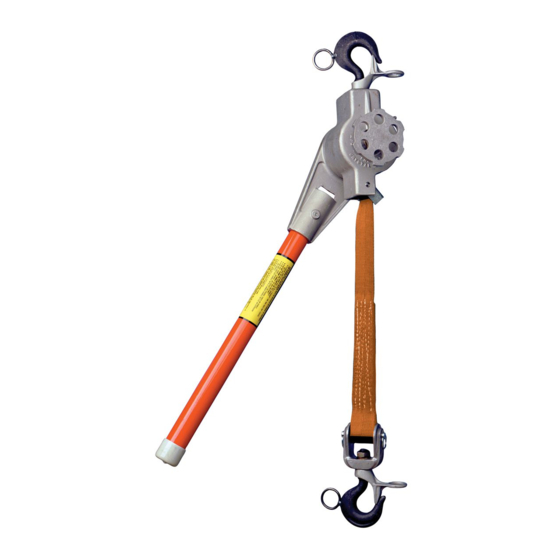

PSC3090323CE
Introduction
Thank you for purchasing a CHANCE® Strap Hoist.
Your safety, and the safety of others, is very important.
The warnings and instructions contained in this manual
are for your safety. Failure to follow safety warnings and
instructions could result in serious injury or death.
All information in this publication is based on the latest
product information available at the time of printing.
Hubbell Power Systems reserves the right to make changes
at any time without notice and without incurring any
obligation.
This Owner's Manual must always be kept with the hoist
and should remain with the hoist if it is transferred or sold.
PSC3090323
These instructions neither cover all details or possible
situations in which you may use a strap hoist, nor do they
provide for every possible contingency to be encountered
in relation to installation, operation or maintenance. Before
each use, think through each use, your safety and the safety
of others.
Should additional information and details be desired or if
situations arise which are not covered adequately for your
purpose, please contact Hubbell Power Systems.
Hubbell Power Systems, Inc.
210 N. Allen St
Centralia, MO 65240
(573) 682-5521
www.hubbellpowersystems.com
PSC3090467
PSP3090357 Rev. Q
Advertisement
Table of Contents
Related Manuals for Hubbell CHANCE PSC3090323CE
Summary of Contents for Hubbell CHANCE PSC3090323CE
-
Page 1: Introduction
Hubbell Power Systems reserves the right to make changes purpose, please contact Hubbell Power Systems. at any time without notice and without incurring any obligation. -
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NO. Introduction Table of Contents Important safety information Load ratings Operating Instructions Care Storage and Maintenance Disassembly Instructions Inspection Assembly Testing Parts Diagram Replacement Parts List CE Declaration of Conformity PSP3090357 Rev. Q... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Read and Understand Owner’s Manual Before Use This Owner’s Manual contains important information for protecting yourself and others and preventing equipment problems. Failure to follow these safety instructions and precautions can lead to property damage, serious injuries or death. Always read this entire manual before operating the strap hoist. - Page 4 Should additional information and details be desired or specific situations arise which are not covered adequately for the user’s purpose, consult your supervisor and the appropriate rules for safe work practices. If further information is desired, contact Hubbell Power Systems. PSP3090357 Rev. Q...
- Page 5 NEVER use a hoist as a load binder. g. NEVER use a hoist beyond rated capacity. h. NEVER use replacement parts other than those supplied by Hubbell/ CHANCE® or Bevins. NEVER use a cheater or extend the handle on the hoist.
-
Page 6: Load Ratings
WORK AREA SAFETY (cont.) NEVER allow the strap to come in contact with any object. k. NEVER use the hoist if the pull is not hook-to-hook straight line. NEVER leave a load suspended in the air. m. NEVER use a hoist as a tow line. n. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Considering the Work Area: Based on the job to be accomplished, the structure to which the hoist is to be attached, and the type and weight of the load to be moved, determined the position and how the hoist is to be attached. - Page 8 WARNING • The hoist is intended for industrial or utility use and is NEVER to be used for lifting people or loads over people. • Make sure the work area is clear of all unnecessary equipment and personnel before moving a load. Personnel and equipment should be moved clear of the area in case the load falls.
-
Page 9: Care Storage And Maintenance
CARE STORAGE & MAINTENANCE CHANCE® hoists will give many years of satisfactory performance if used and maintained properly. Always hang the hoist freely with a straight line between the housing hook and the load hook. DO NOT JAM THE HOIST OR STRAP AGAINST ANY OBJECT. The CHANCE®... -
Page 10: Disassembly Instructions
DISASSEMBLY INSTRUCTIONS WARNING • Do not attempt to clean the strap. If the strap is dirty or contaminated, it must be replaced. • Always wear safety glasses and other appropriate protective equipment during the following procedures. Use the correct tools for the operations being performed. In order to best visualize these instructions, study and refer to the exploded view of the hoist and parts list. -
Page 11: Inspection
INSPECTION • Thoroughly clean all metal parts with solvent and dry. The Epoxiglas® handle can be cleaned and refinished as any CHANCE® hot line tool. Refer to CHANCE® catalog for supplies. • Inspect the strap for any signs of wear, torn threads, or torn stitching, frayed edges, or cuts. Discoloration is a sign that the strap should be replaced. -
Page 12: Assembly
Refer any questions about the use, For repair or repair application or testing of this hoist to: parts, contact: Hubbell / Chance, M.W. Bevins Co., 210 N. Allen St., 9903 E. 54th, Centralia, MO 65240,... -
Page 13: Parts Diagram
REPAIR PARTS LIST FOR CHANCE NYLON RATCHET HOIST NOTE: Because Hubbell has a policy of continuous product improvement, we reserve the right to change design and specifications without notice. PSP3090357 Rev. Q... -
Page 14: Replacement Parts List
REPAIR PARTS LIST FOR CHANCE NYLON RATCHET HOIST Screw (Strap Anchor) P0010177P HANDLE BODY E3090069P SUBASSEMBLY Strap Clamp for Spool P3090062P Handle Body P3090054P Yoke Spool P3090531P Oilite Bearing 058614P Δ Roll Pin P3090272P Release Key P3090346P Hand Wheel P3090523P 019486P Snap Rings PS056011P... -
Page 15: Ce Declaration Of Conformity
• EN 13157 – Cranes – Safety – Hand Powered Cranes The undersigned herby declares, on behalf of Hubbell Power Systems, Inc. of Centralia, Mo, that the above-referenced product, to which the declaration relates, is in conformity with the above mentioned Directive and Safety Standard. - Page 16 Hubbell Power Systems, Inc. is not liable for death, serious injury, or property damage resulting from the use of these products in any manner that is inconsistent with the product installation and operating instructions, your employer’s internal safety guidelines, or recommendations from safety...
