Installing a Splitterless Connection

If you are using a splitterless (G.lite) connection, then your service
provider will attach the outside ADSL line directly to your phone system.
In this case you can connect your phones and computer directly to the
incoming ADSL line, but you will have to add low-pass filters to your
phones as shown below:
Plain Old
Telephone
System (POTS)
Residential
Connection
Point [Network
Interface
Device (NID)]

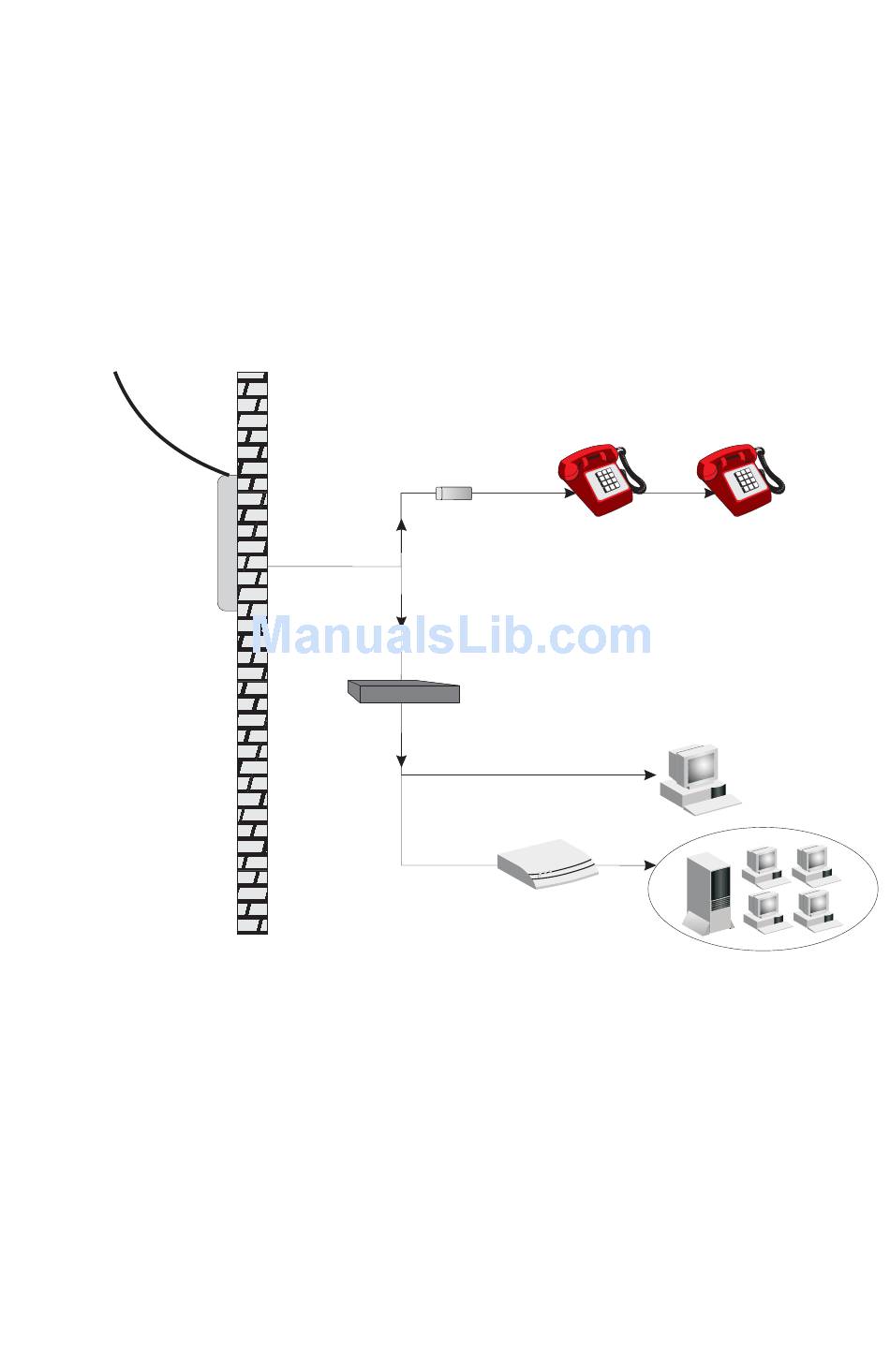

Figure 2-4. Installing without a Splitter
