Optional Redundant Power Unit; Power Supply Socket; Figure 1-4 Power Supply Sockets - SMC Networks 8708L2 Installation Manual

LED
Diag

Optional Redundant Power Unit

SMC supports an optional Redundant Power Supply (RPS), that can supply
power to the switch in the event of failure of the internal power supply.
Power Supply Sockets
There are two power sockets on the rear panel of the switch. The standard
power socket is for the AC power cord. The socket labeled "RPS" is for
the optional Redundant Power Supply.
Power Socket
Table 1-2 System Status LEDs
Condition
Flashing Green
On Green
On Yellow
Yellow/Green
Alternating
100-240V~
50-60Hz 2A

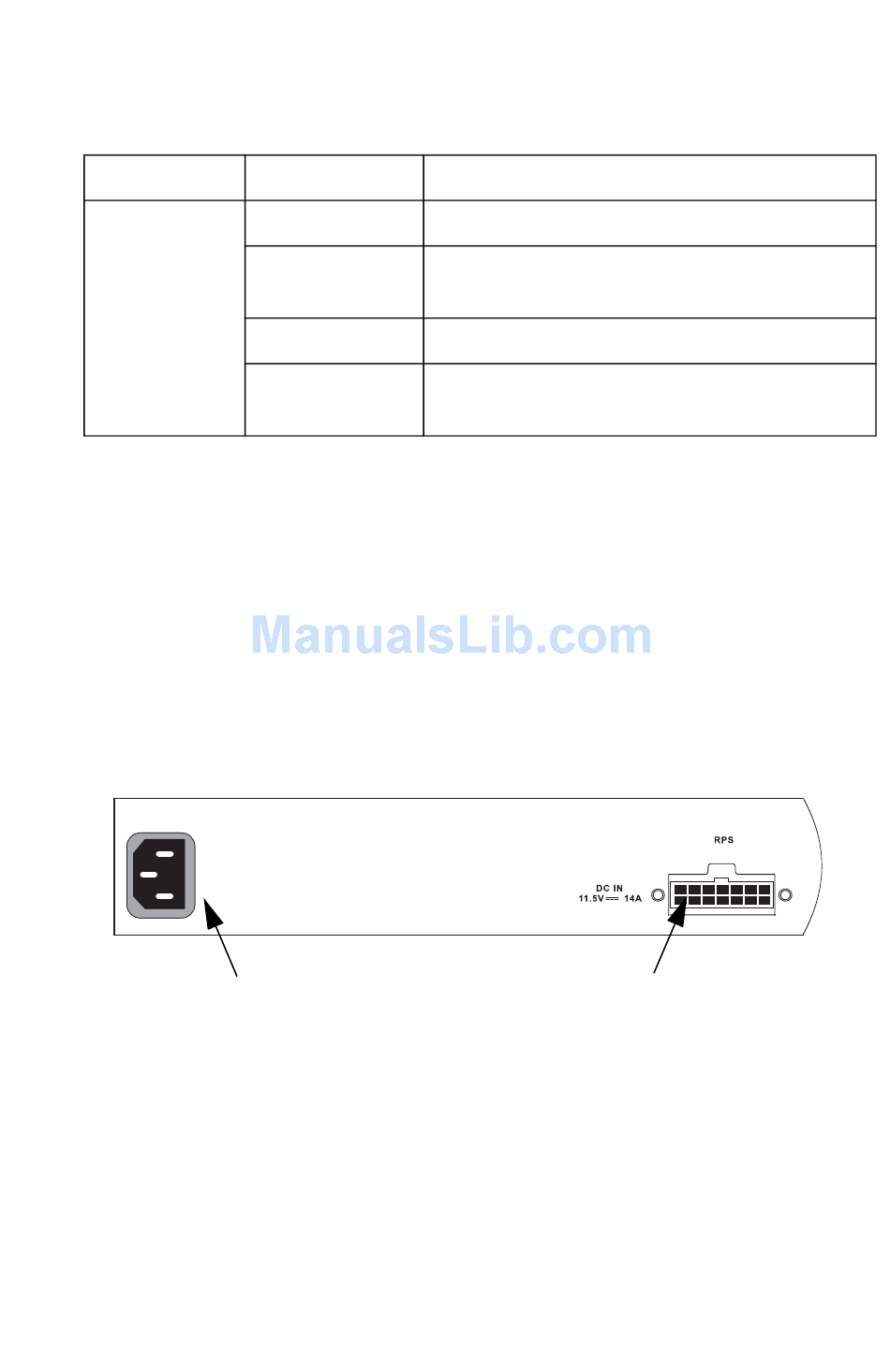

Figure 1-4 Power Supply Sockets

D
ESCRIPTION OF
(Continued)
Status
The system diagnostic test is in progress.
The system diagnostic test has completed
successfully.
The system diagnostic test has detected a fault.
There has been a fan fault or the unit has
overheated.
Redundant Power Socket
H
ARDWARE
1-7
