Table 1-2 System Status Leds; Figure 1-3 System Leds - SMC Networks 8708L2 Installation Manual

A T
BOUT THE IGER
LED
PWR
RPS
1-6
S 10G
WITCH
System LEDs

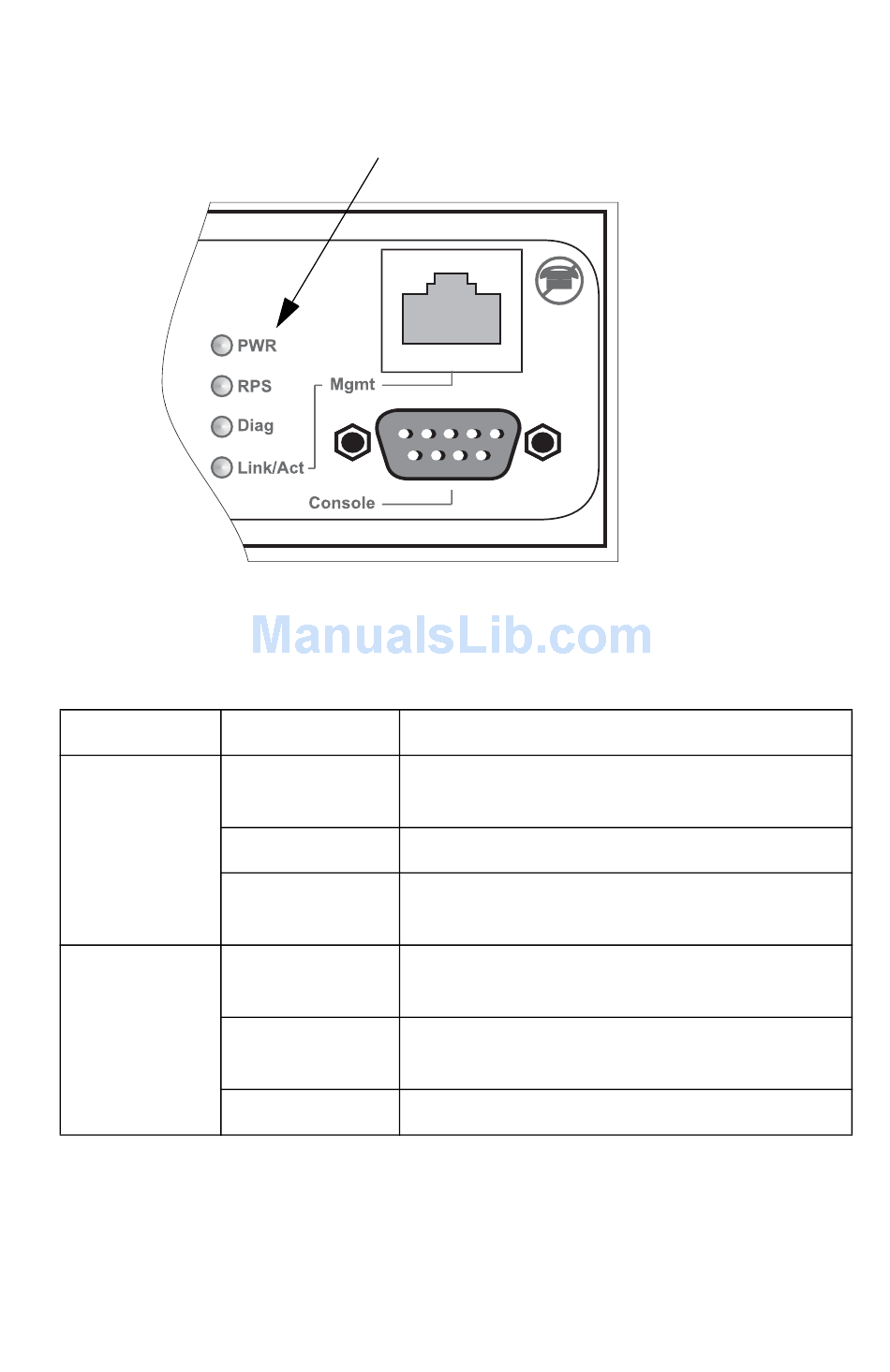

Figure 1-3 System LEDs

Table 1-2 System Status LEDs

Condition
On Green
On Yellow
Off
On Green
On Yellow
Off
Status
The unit's internal power supply is operating
normally.
The unit's internal power supply has failed.
The unit has no power connected or has
failed.
The redundant power supply is operating
normally.
The redundant power supply is plugged in but
faulty, such as a thermal or fan failure.
No redundant power supply is connected.
