Victorian Plumbing AREZZO Installation Manual

Dual control thermostatic shower valve
Hide thumbs Also See for AREZZO:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Dual Control Thermostatic
Shower Valve
Please follow them carefully and
leave this manual with end user
V3.12.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AREZZO and is the answer not in the manual?

Questions and answers

Related Manuals for Victorian Plumbing AREZZO

Summary of Contents for Victorian Plumbing AREZZO

  • Page 1 Dual Control Thermostatic Shower Valve Please follow them carefully and leave this manual with end user V3.12.23...

  • Page 2: Before You Begin

    Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage.

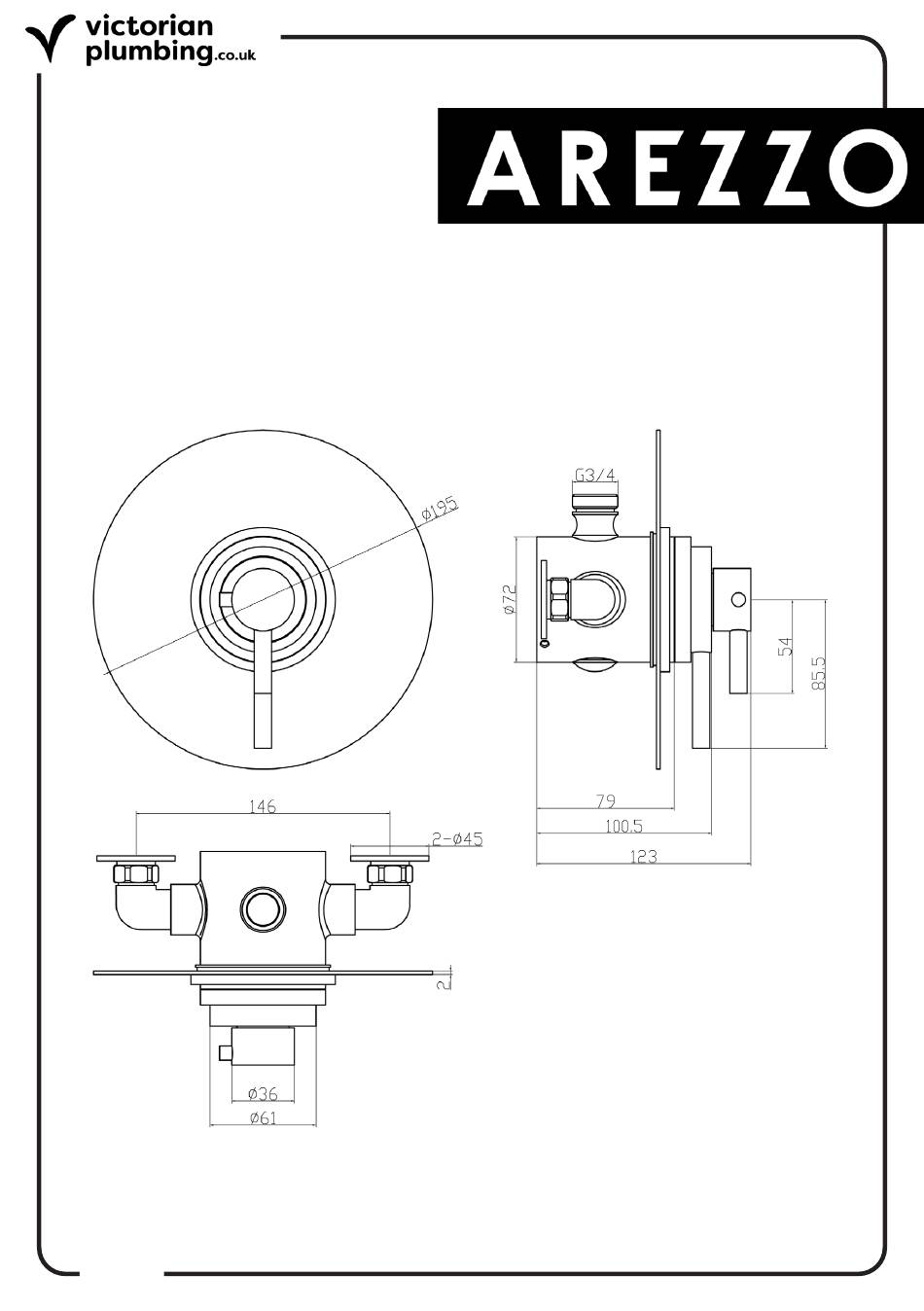

  • Page 3 Diagram: Diagrams are for illustration purposes only. Your thermostatic shower valve may superficially differ from this drawing however the installation guide steps still apply. V3.12.23...

  • Page 4: Exploded Diagram

    Exploded Diagram Sealing O-ring Riser Outlet Temperate Override Button Back Plate Cover Plate Water Inlet Connector Set Screw Check Valve Temperate Control Handle Small Filter Net Olive Circlet Flow Control Handle Sealing Cap Water Inlet Elbow Dome Cap Down Outlet Adapter For Shower Hose Diagrams are for illustration purposes only.

  • Page 5: Operation Notice

    Operation Notice: The work condition for use of this product is cold water 4-29°C, hot water 55-85°C and water pressure 0.5bar - 5bar. To avoid the differential pressure between hot water and cold water, the thermostatic cartridge is preferably under the condition of water pressure 3 bar, hot water 65°C and cold water 15°C.

  • Page 6: Troubleshooting

    Troubleshooting FAULT POSSIBLE CAUSE Hot and cold supplies have been plumbed the wrong direction. Shower only runs hot or cold after installation Faulty thermostat. Insufficient water pressure. Check the hot water supply temperature. Shower does not run hot Maximum temperature needs adjusting, see enough temperature adjustment.
  • Page 7 Notes: V3.12.23...
  • Page 8 www.victorianplumbing.co.uk V3.12.23...

This manual is also suitable for:

Trafalgar tsv11Belmont csv08
