Installation and Maintenance
Instruction Manual

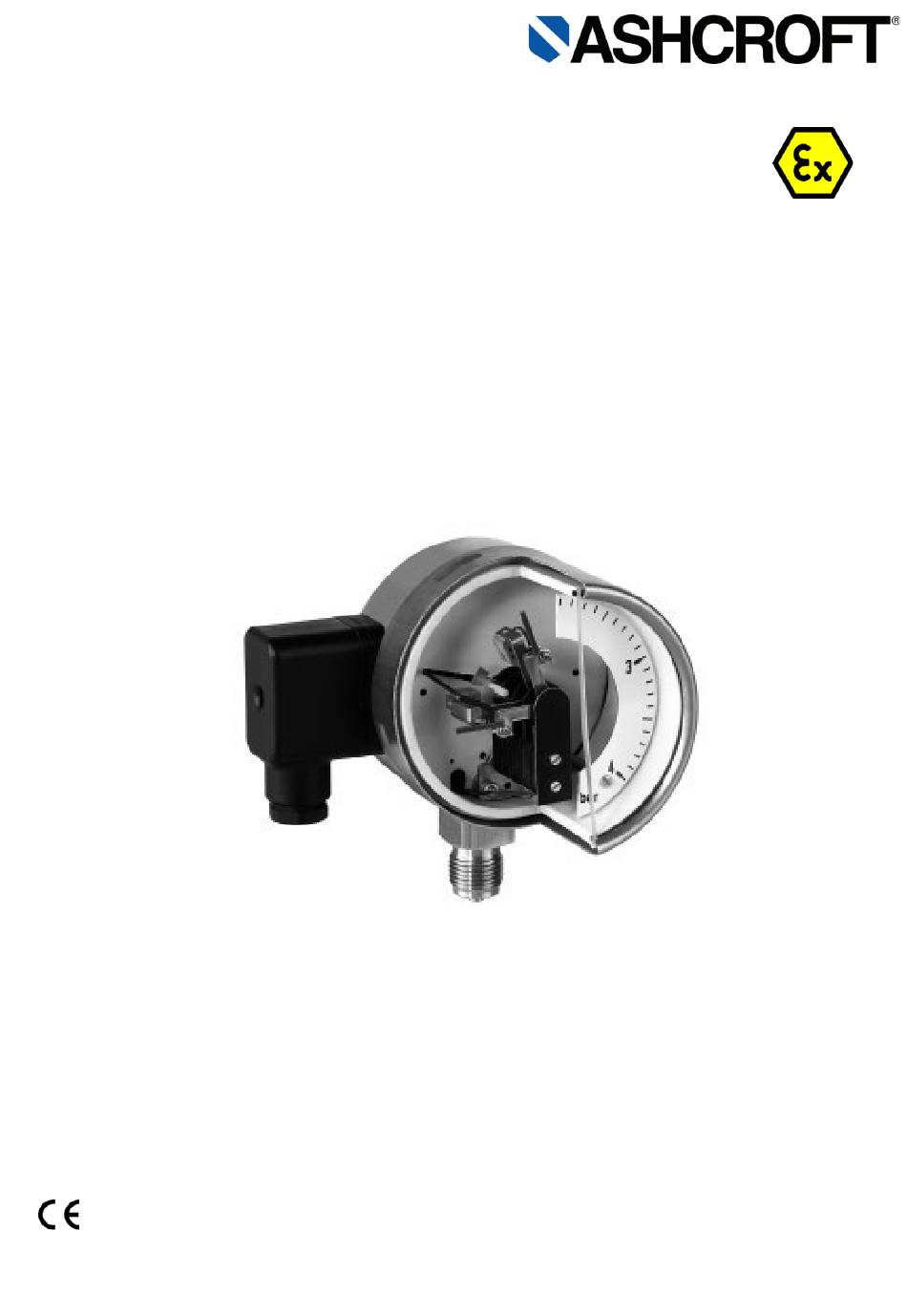

Bourdon tube pressure gauge, model T5500 KF and T6500 KF
for explosion risk areas in European Union pursuant to Directive 2014/34/EU
In the following configuration:
• ###T5500 KF/T6500 KF###I####ATEX bourdon tube pressure gauge with inductive proximity
switches
IM-T5500 KF/ATEX-EN
10/2024
Page 1 of 16
P/N 095I103-02EN
Advertisement
Table of Contents
Related Manuals for Ashcroft T5500 KF
Summary of Contents for Ashcroft T5500 KF
- Page 1 Bourdon tube pressure gauge, model T5500 KF and T6500 KF for explosion risk areas in European Union pursuant to Directive 2014/34/EU In the following configuration: • ###T5500 KF/T6500 KF###I####ATEX bourdon tube pressure gauge with inductive proximity switches IM-T5500 KF/ATEX-EN 10/2024...
-
Page 2: Table Of Contents
Disassembly ................................... 14 11.2 Disposal ..................................14 Appendix ....................................15 12.1 Data Sheet Bourdon Tube Pressure Gauge T5500 KF/ T6500 KF ................15 12.2 EU Declaration of conformity model T5500 KF and T6500 KF ..................16 Page 2 of 16... -
Page 3: General Remarks
For the product described here, we offer a warranty pursuant to Section 6 Guarantee in Respect of Defects in our General Terms and Conditions of Delivery and Payment. 1.6 Manufacturer’s address, customer services Ashcroft Instruments GmbH Tel.: +49 (0) 2404/5589-888 E-mail: customer.service@ashcroft.com... -
Page 4: Safety
Safety 2.1 General sources of hazards Pressure gauges are pressurized parts where failure can result in hazardous situations. The selection of pressure gauge should be made in accordance with the rules set out in EN 837-2. 2.2 Use in accordance with intended purpose The devices may only be used for the purpose intended by the manufacturer. -
Page 5: Safety Equipment
On the dial the manufacturer, measuring unit, accuracy class, note Silicone-free, note Oxygen-Service and the applied standard are visible. The device may have other labels and safety marks indicating special conditions of use: Note on calibration Note on the use of the manual, Note on the use of the vent plug. The operator must check the label, which is important for the use in potentially explosive atmospheres, at regular intervals to ensure that it remains legible. - Page 6 Process media Temperatures: Permissible max. medium temperature in the measuring system 90°C The process media temperature depends on the ignition temperature of the surrounding gas, vapors or dust, on the design of the device, especially the pressure change rate and the surface, as well as the ambient temperature and other external heat sources.
-
Page 7: Special Operating Conditions For Safe Use In Potentially Explosive Atmospheres
Labeling: Ex marking according Ex marking according 2014/34/EU ISO 80079-36 / 80079-37 T6…T1 Ex h IIIC T95°C Conformity mark Explosion protection mark Group II equipment is intended for use in locations with explosive gas atmospheres, excluding mine gas and/or dust from hazardous mining operations. -
Page 8: Technical Data
EU type examination certificates for the built-in inductive proximity switch Product code File number Ixxxx PTB 99 ATEX 2219 X The built-in proximity switch is indicated on the type plate as product coding and wiring diagram. IxxxxSN PTB 00 ATEX 2049 X For use in potentially explosive atmospheres, the devices must be connected to certified intrinsically safe circuits. -
Page 9: Marking Of The Device
Marking of the device The nameplate with serial number and type designation is located on the housing. The materials used for the wetted parts as well as other device-specific versions are represented by a type coding on the nameplate and can be broken down at any time with the aid of the data sheet. -
Page 10: Description Of Components
6.1 Description of components 6.1.1 Scale with pointer The pressure gauge is equipped with a dial and pointer according to EN 837-1, nominal size 100 mm or 160 mm. 6.1.2 Instrument connection The instrument connection is located on the bottom (Model T5500-KF, T6500-KF) or eccentrically on the back (available on Model T5500-KF only) of the instrument. -
Page 11: Requirements For The Installation Site
It is recommended to perform the assembly / installation without an existing explosive atmosphere (e.g. ventilated room). 8.2 Requirements for the installation site Check the suitability of the device for the process media to be measured, Design of the measuring range to the requirements of the measurement, ... -
Page 12: Starting Up
Please refer to type label for configuration of connections. 8.5 Starting up A prerequisite for starting up is the proper installation of all measuring lines. All connection must be laid in such a way that no mechanical forces can act on the device. Before starting up, the tightness of the pressure connection must be checked. -
Page 13: Check On Function, And Recalibration
9.1 Check on function, and recalibration Calibration For our devices we recommend a calibration interval of: Accuracy class ≤ 0.6 annual recalibration. Accuracy class ≥ 1.0 recalibration at an interval of two years Functional tests The exact test cycles must be adapted to the operating and ambient conditions. When various device components interact, the operating instructions of all other devices must also be observed. -
Page 14: Behavior After Rectifying The Fault
Signs of leakage of the measuring Process media not compatible with Improper use, system (discoloration of the dial or the material used for the Bourdon Replace device the filling liquid). tube, installation location with Shield installation site or relocate excessive external influences installation site. -
Page 15: Appendix
For more information on the disposal of packaging, please contact your local administration. 12 Appendix 12.1 Data Sheet Bourdon Tube Pressure Gauge T5500 KF/ T6500 KF Detailed data sheet is available from supplier’s website (see 1.6 Manufacturer’s address, customer services) This Table refers to specific documents:... -
Page 16: Eu Declaration Of Conformity Model T5500 Kf And T6500 Kf
12.2 EU Declaration of conformity model T5500 KF and T6500 KF Page 16 of 16...
