Summary of Contents for Chauvet DJ EZGobo

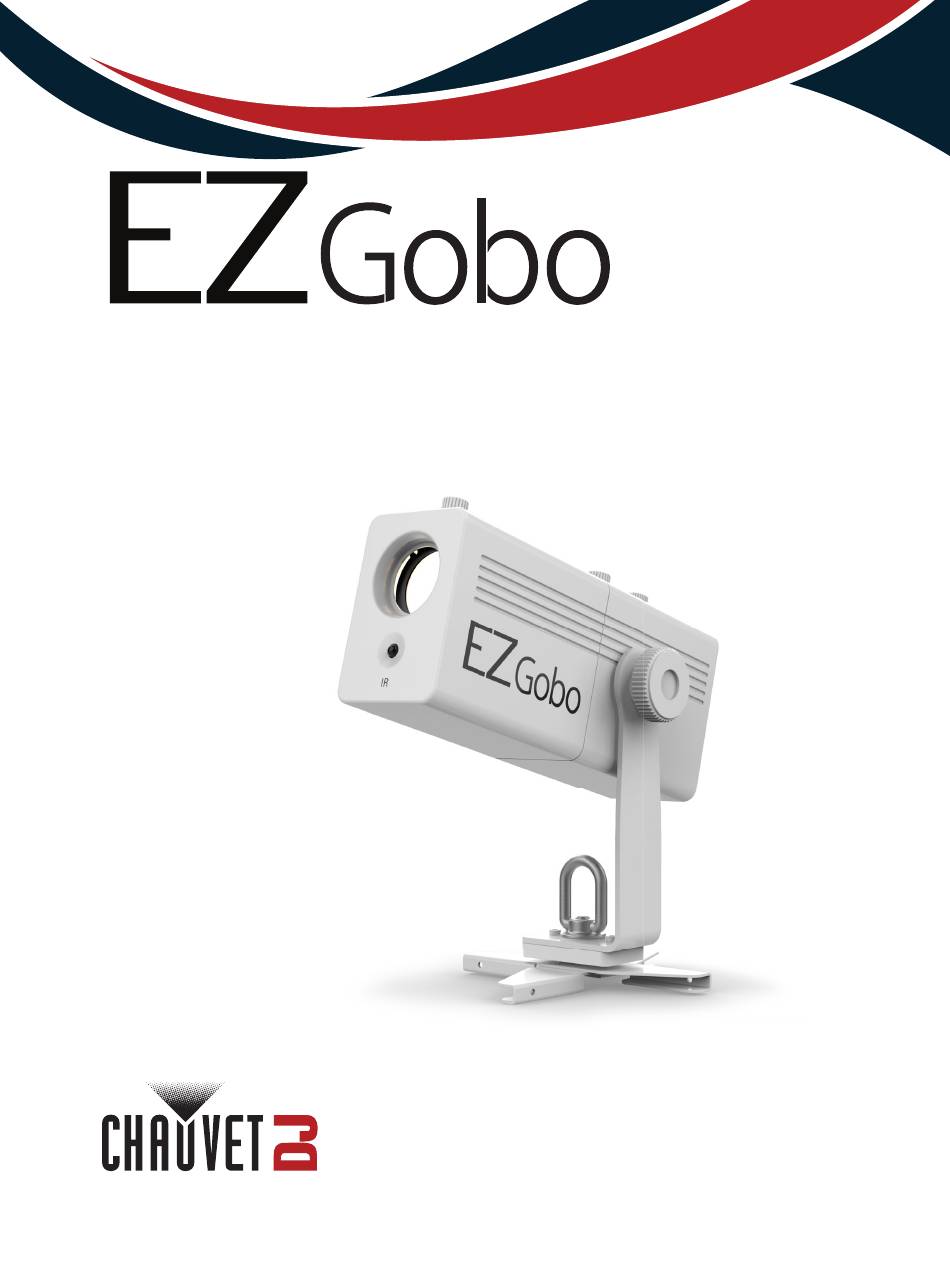

- Page 1 User Manual...
-
Page 2: Edition Notes
EZGobo as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and EZGobo are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 3: Table Of Contents
Rigging ....................... Gobo Dimensions....................Gobo Replacement .................... Procedure ........................ Gobo Replacement Diagram ................... 4. Operation..................... IRC-6 Infrared Remote Control ..............5. Maintenance..................Product Maintenance ..................Gobo Maintenance..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................EZGobo User Manual Rev. 1... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. EZGobo User Manual Rev. 1... -
Page 5: Safety Notes
Before You Begin Safety Notes These Safety Notes include important information about installation, use, and maintenance of the EZGobo. ■ ALWAYS: ♦ Connect to a grounded circuit. ♦ Connect to operating voltages as specified on the product's spec sticker. ♦... -
Page 6: Introduction
Introduction 2. Introduction Product Overview Name Name Gobo slot thumbscrew Scissor clip Zoom thumbscrews Mounting bracket Safety cable loop IRC-6 sensor On/off switch Lens DC power jack Bracket adjusting knob Magnetic base EZGobo User Manual Rev. 1... -
Page 7: Product Dimensions
Introduction Product Dimensions 6.5 in 167 mm 6.7 in 170 mm 4.3 in 110 mm EZGobo User Manual Rev. 1... -
Page 8: Setup
The EZGobo comes with a rechargeable lithium battery for cable-free operation. Charging the Battery The battery charges whenever the EZGobo is plugged into a power source using the included power cable. If the product is plugged in and not in operation, make sure the product is turned off. - Page 9 Setup Mounting Diagram Mounting clamp (such as CLP-10 from Chauvet) Hanging bracket Safety cable (such as CH-05 from Chauvet) Scissor clamp CLP-10 mounting mounting Magnetic base Magnetic base Surface mount mounting EZGobo User Manual Rev. 1...
-
Page 10: Gobo Dimensions
Gobo Dimensions 25.8 mm 18.6 mm Gobo Replacement The gobo in the EZGobo is removable from the gobo holder. • Make sure to disconnect the product’s power cable before replacing a gobo. • Always replace a gobo with a gobo of the same dimensions. -
Page 11: Operation
Operation 4. Operation IRC-6 Infrared Remote Control The EZGobo is compatible with the IRC-6 infrared remote control from Chauvet. Consult the table below to operate the EZGobo with the IRC-6. IRC-6 Button Function <+> Press to increase the intensity of the LED <->... -
Page 12: Maintenance
6. Wipe off all the lubricant from the gobo holder using a piece of lint-free cotton cloth. 7. Reinstall the gobo in the gobo holder. Make sure the gobo is in the correct position. 8. Reinstall the gobo holder in the unit. EZGobo User Manual Rev. 1... -
Page 13: Technical Specifications
Illuminance @ 2 m (w) Color Temperature 16° to 31° 1004 lux 346 lux 10,000 K Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection Ordering Product Name Item Code UPC Number EZGobo 07050900 781462212483 EZGobo User Manual Rev. 1... -
Page 14: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. EZGobo User Manual Rev. 1...
