Summary of Contents for Chauvet DJ EVE F-160ZQ

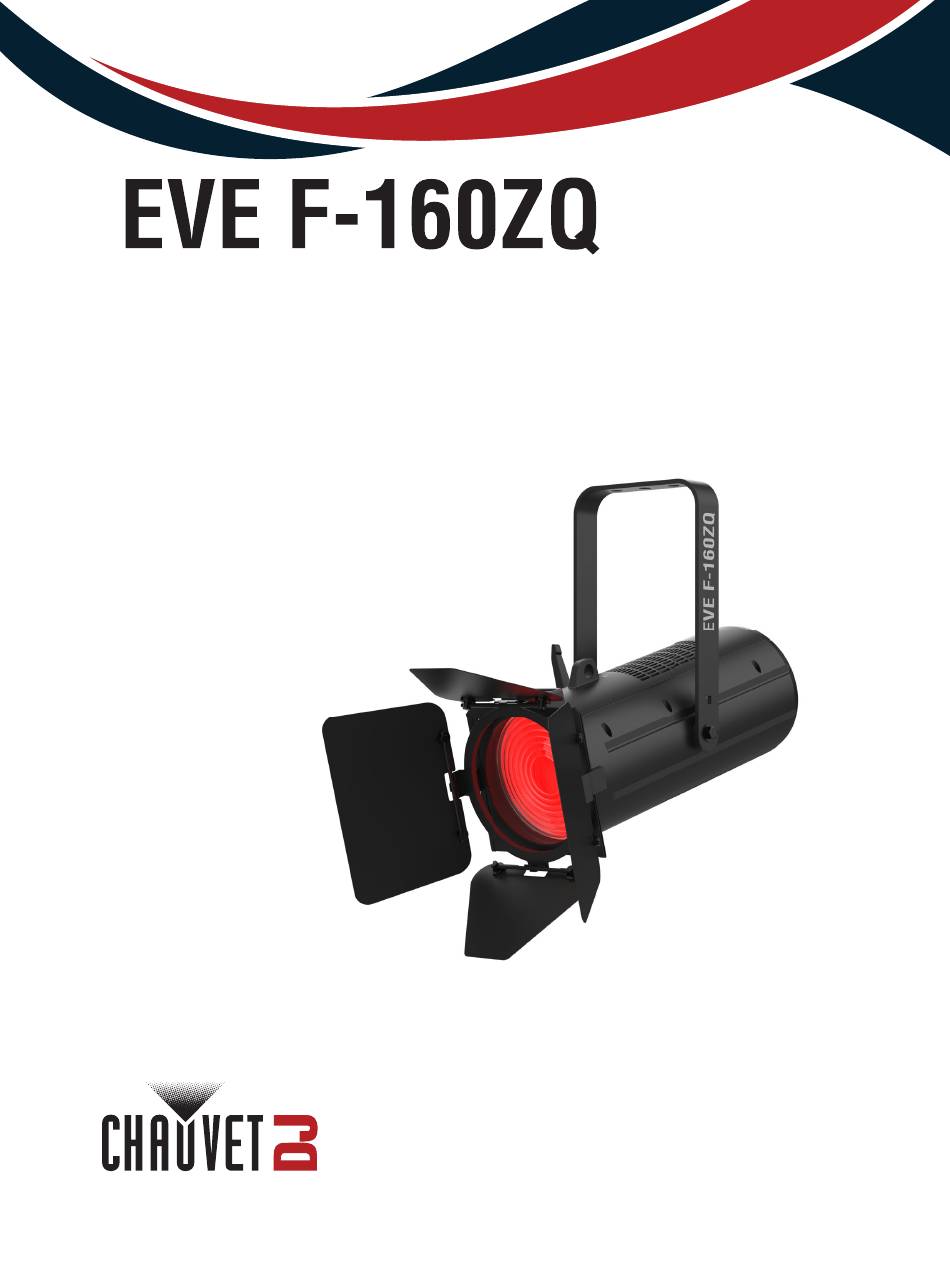

- Page 1 User Manual...
-
Page 2: Edition Notes
Edition Notes The EVE F-160ZQ User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the EVE F-160ZQ as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and EVE are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
Fan Mode ......................Back Light ......................Information ......................Upgrade Firmware ..................... Factory Reset..................... Wired Master/Slave Mode................D-Fi USB Master/Slave Mode ............... 5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................EVE F-160ZQ User Manual Rev. 1... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. EVE F-160ZQ User Manual Rev. 1... -
Page 5: Safety Notes
♦ Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. EVE F-160ZQ User Manual Rev. 1... -
Page 6: Introduction
Zoom thumbscrew Bracket adjustment knob Fuse holder WARNING! DO NOT plug anything other than a D-Fi USB or memory drive into the USB type A port. Doing so may cause damage to the product. EVE F-160ZQ User Manual Rev. 1... -
Page 7: Product Dimensions
227 mm 18.6 in 15.9 in 474 mm 405 mm 6.7 in 7.4 in 170 mm 187 mm 14 in 6.3 in 357 mm 159 mm 6.2 in 159 mm 15.9 in 405 mm EVE F-160ZQ User Manual Rev. 1... -
Page 8: Setup
3. Setup AC Power The EVE F-160ZQ has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The EVE F-160ZQ may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
Press to scroll down the list of options or to find a lower value <ENTER> Press to activate a menu option or a selected value Menu Map Refer to the EVE F-160ZQ product page on www.chauvetdj.com for the latest menu map and software. Main Menu... - Page 11 Wheel (cont.) 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K 3600K Dimmer 3700K (000–255) 3800K Color 3900K Selects preset color temperature Temperature (-025–025) 4000K 4100K 4200K 4300K 4400K 4500K 4600K 4700K 4800K 4900K 5000K EVE F-160ZQ User Manual Rev. 1...
- Page 12 Turns off display backlight after 10 seconds of inactivity Turns off display backlight after 30 seconds of inactivity Back Light Turns off display backlight after 2 minutes of 2Min inactivity Always On Display backlight remains on EVE F-160ZQ User Manual Rev. 1...
-
Page 13: Dmx Configuration
Chauvet website chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Personality and Starting Address The EVE F-160ZQ uses up to 11 DMX channels in the 11Ch DMX mode, which defines the highest configurable/recommended address to 502. When selecting a starting DMX address, always consider the number of DMX channels the DMX mode uses. -
Page 14: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The EVE F-160ZQ is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 15: Dmx Charts
214 221 Yel green 222 229 Green 230 237 Turqoise 238 245 Aqua 246 250 Blue green 251 255 No function 000 005 No function – 006 255 2800K-8000K EVE F-160ZQ User Manual Rev. 1... - Page 16 – – Control 040 047 Dimmer mode 3 048 055 Fan auto 056 063 Fan on 064 071 Fan off 072 079 Fan silent 080 255 No function EVE F-160ZQ User Manual Rev. 1...
-
Page 17: Standalone Configuration
DMX signals from the controller. Virtual Color Wheel To run the EVE F-160ZQ with a virtual color wheel, follow the instructions below. 1. Press <MENU> repeatedly until Virtual Color Wheel shows on the display. 2. Press <ENTER>. -
Page 18: Dimmer Mode
3. Use <UP> or <DOWN> to select a dimmer mode, from Dimmer 1–3 (fast to slow), or Off. 4. Press <ENTER>. DMX Loss To set the DMX Loss mode on the EVE F-160ZQ, follow the instructions below: 1. Press <MENU> repeatedly until DMX Loss shows on the display. 2. Press <ENTER>. -
Page 19: Wired Master/Slave Mode
D-Fi USB Master/Slave Mode The D-Fi USB allows a single EVE F-160ZQ product (the “master”) to control the actions of one or more EVE F-160ZQ products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in slave mode. -
Page 20: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because they could be damaged. EVE F-160ZQ User Manual Rev. 1... -
Page 21: Technical Specifications
104 °F (40 °C) Convection I/O Connector Channel Range 3-pin and 5-pin XLR 3, 4, or 11 Ch Ordering Product Name Item Code UPC Number EVE F-160ZQ 03052334 781462226824 UL 1573 CSA C22.2 No. 166 E113093 EVE F-160ZQ User Manual Rev. 1... -
Page 22: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. EVE F-160ZQ User Manual Rev. 1...
