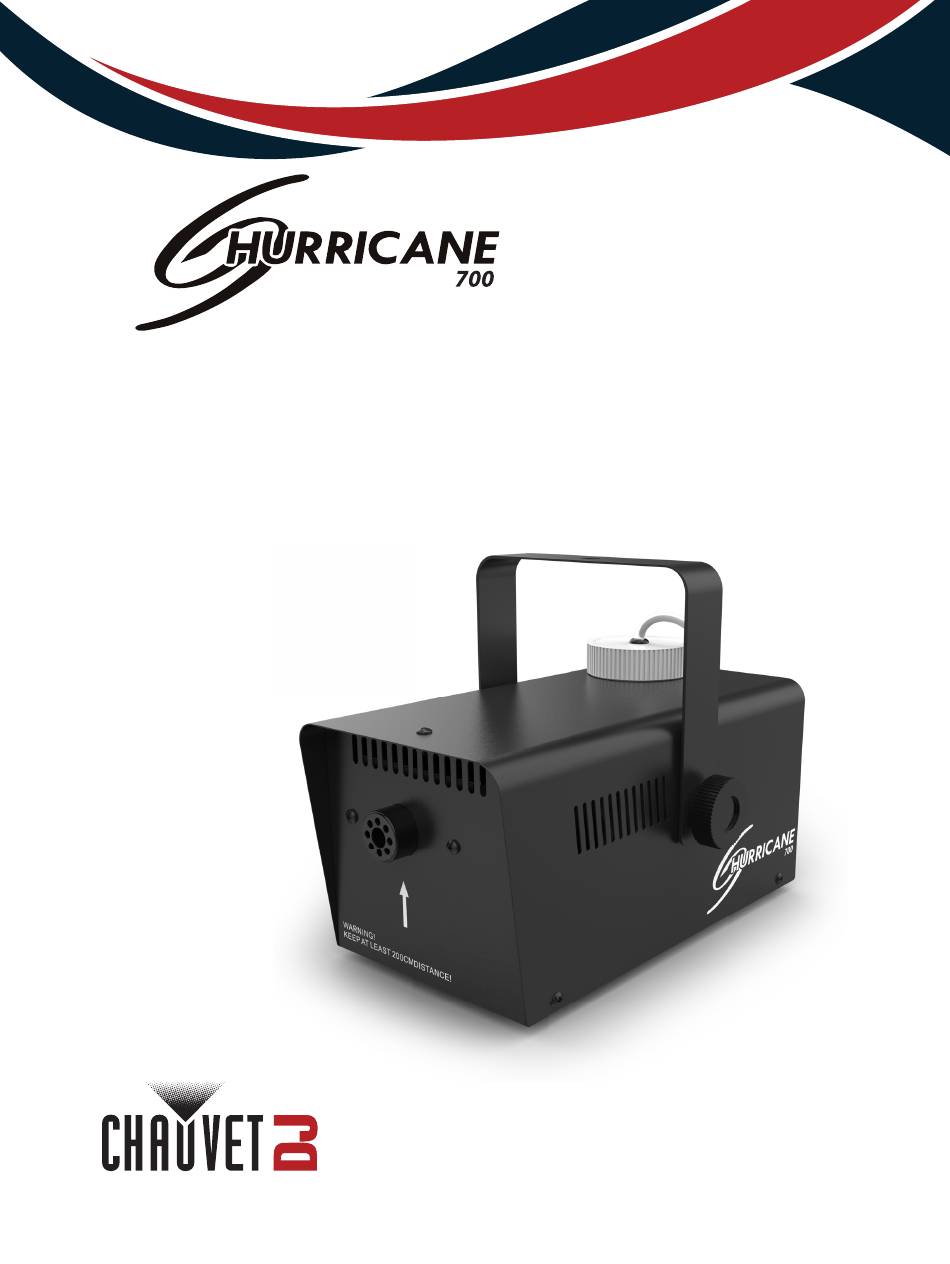

- Page 1 User Manual...
-
Page 2: Edition Notes
Edition Notes The Hurricane 700 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Hurricane 700 as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and Hurricane are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
AC Power ...................... Fuse Replacement ..................... Mounting ....................... Orientation......................Rigging ....................... 4. Operation..................... FC-M Wired Manual Remote ................ General Troubleshooting................5. Maintenance..................Fog Machine Maintenance................Storage......................6. Technical Specifications..............Contact Us....................Warranty & Returns..................Hurricane 700 User Manual Rev. 1... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Hurricane 700 User Manual Rev. 1... -
Page 5: Safety Notes
♦ Obstruct the bubble wands or leave machine unattended. ♦ Overfill. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Hurricane 700 User Manual Rev. 1... -
Page 6: Introduction
Fluid level indicator Manual controller Rubber feet (x4) Bracket knob Fuse holder Nozzle Product Dimensions 5.9 in 149 mm 6.6 in 167 mm 4.41 in 112 mm 6.6 in 167 mm 4.8 in 122 mm Hurricane 700 User Manual Rev. 1... -
Page 7: Setup
3. Setup AC Power The Hurricane 700 has a fixed voltage power supply, and it can work with an input voltage range of either 120 VAC, 60 Hz or 220 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Hurricane 700 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
FC-M Wired Manual Remote The Hurricane 700 is operated using the wired manual remote control (FC-M). This allows the user to start and stop the fog output. The LED indicator on the remote indicates when the fogger has reached the required operation temperature. -
Page 10: General Troubleshooting
Internal problem Send product for repair. Product stops pumping Low / no fluid Refill with Chauvet water-based fog fluid. Loud noise If problems persist after attempting the solutions above, contact Chauvet Technical Support. Hurricane 700 User Manual Rev. 1... -
Page 11: Maintenance
Test-run the Chauvet atmospheric products monthly to achieve the best performance. Chauvet does not guarantee products will withstand storage for long durations, even if the cleaning process is followed. Please use caution and test regularly to ensure the product continues to function properly. Hurricane 700 User Manual Rev. 1... -
Page 12: Technical Specifications
0.2 gal (0.6 l) 7.5 ml/min 1,500 cfm Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection Ordering Product Name Item Code UPC Number Hurricane 700 120V 05071510 781462218584 Hurricane 700 220V 05071520 781462218683 Hurricane 700 User Manual Rev. 1... -
Page 13: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Hurricane 700 User Manual Rev. 1...
