3
Configuring the Switch
3. Use the Private VLAN Port Configuration menu (page 3-185) to set the port
type to promiscuous (i.e., having access to all ports in the primary VLAN), or
host (i.e., having access restricted to community VLAN members, and
channeling all other traffic through promiscuous ports). Then assign any
promiscuous ports to a primary VLAN and any host ports a community VLAN.
To configure an isolated VLAN, follow these steps:
1. Use the Private VLAN Configuration menu (page 3-183) to designate an
isolated VLAN that will channel all traffic through a single promiscuous port.
2. Use the Private VLAN Port Configuration menu (page 3-185) to set the port
type to promiscuous (i.e., the single channel to the external network), or
isolated (i.e., having access only to the promiscuous port in its own VLAN).
Then assign the promiscuous port and all host ports to an isolated VLAN.

Displaying Current Private VLANs

The Private VLAN Information page displays information on the private VLANs
configured on the switch, including primary, community, and isolated VLANs, and
their assigned interfaces.
Command Attributes
• VLAN ID – ID of configured VLAN (1-4092), and VLAN type.
• Primary VLAN – The VLAN with which the selected VLAN ID is associated. A
primary VLAN displays its own ID, a community VLAN displays the associated
primary VLAN, and an isolated VLAN displays the stand-alone VLAN.
• Ports List – The list of ports (and assigned port type) in the selected private VLAN.
Web – Click VLAN, Private VLAN, Information. Select the desired port from the
VLAN ID drop-down menu.
3-182

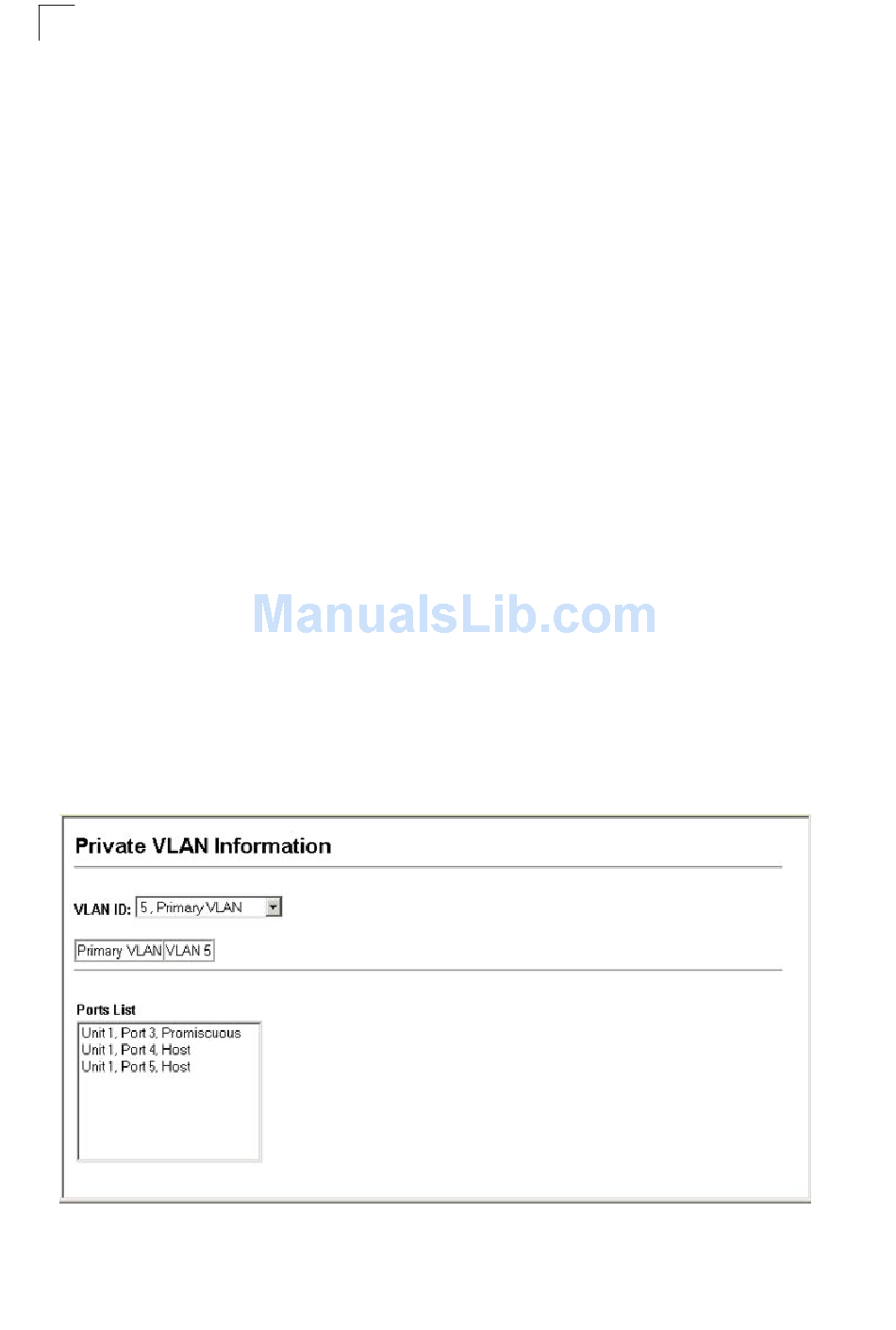

Figure 3-107 Private VLAN Information
