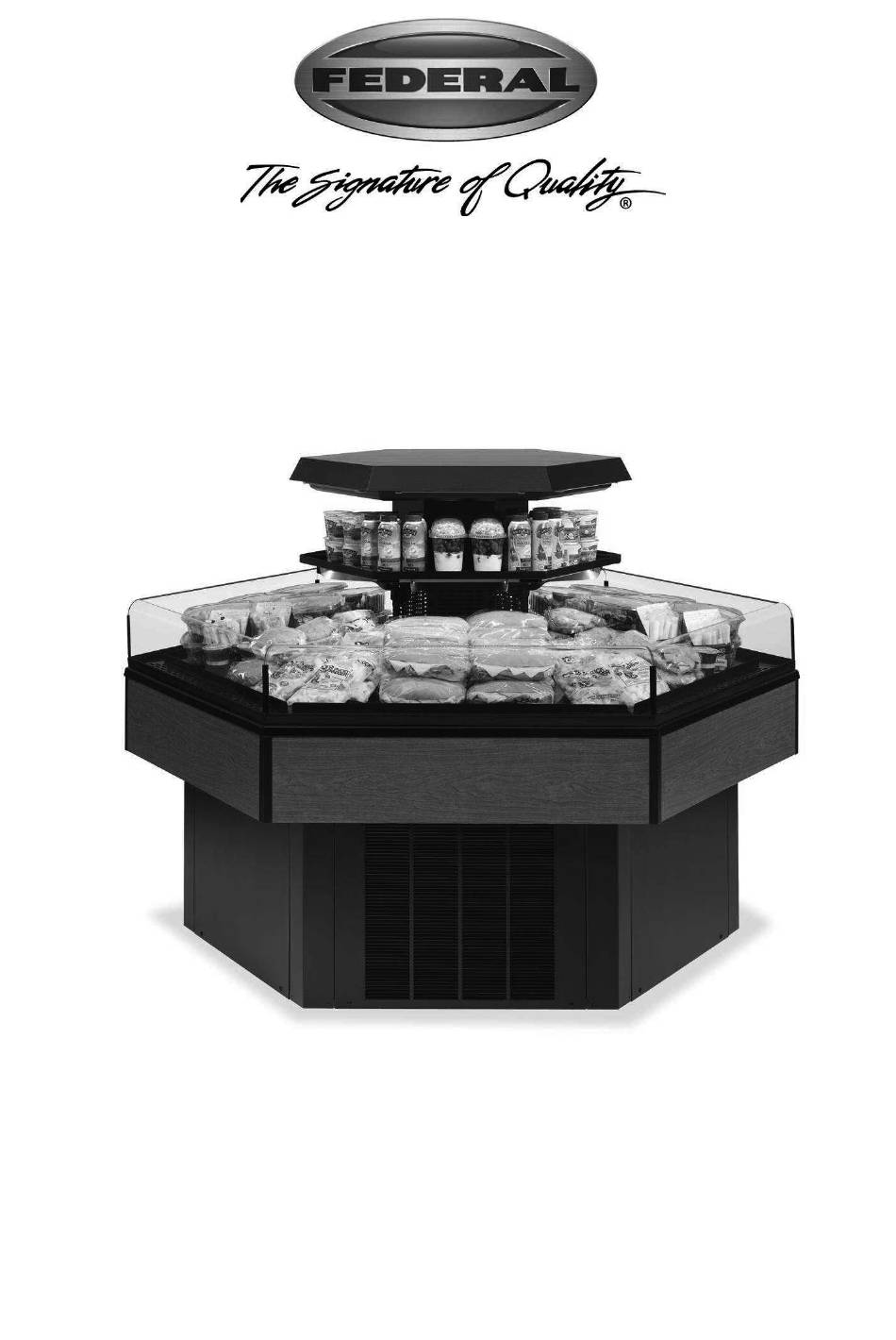

E3412
REV A 8/6/13
INSTALLATION & OPERATIONS MANUAL
KEEP THIS MANUAL FOR FUTURE REFERENCE
FEDERAL INDUSTRIES
Toll Free 1(800) 356-4206
HXISS E3412
FEDERAL INDUSTRIES
HXISS MODELS
Engineering and technical data are subject to change without notice.
P.O. Box 290
WI Phone (608) 424-3331
Belleville, WI 53508
Fax: (608) 424-3234
- 1 -
Advertisement
Table of Contents
Related Manuals for Federal HXISS
Summary of Contents for Federal HXISS
- Page 1 E3412 REV A 8/6/13 FEDERAL INDUSTRIES HXISS MODELS INSTALLATION & OPERATIONS MANUAL KEEP THIS MANUAL FOR FUTURE REFERENCE Engineering and technical data are subject to change without notice. FEDERAL INDUSTRIES P.O. Box 290 Belleville, WI 53508 Toll Free 1(800) 356-4206...
-
Page 2: Table Of Contents
CONTROL FACTORY SETTING ................... 23 CONTROL DISPLAY ......................24 MAXIMUM RUN TIMER ..................... 24 REFRIGERATION OPERATION ....................24-25 SELF CONTAINED OPERATION ..................24 REMOTE OPERATION ....................24-25 REPLACEMENT PARTS - ........................ 26 WIRING DRAWING ......................27-30 HXISS E3412 - 2 -... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing a Federal Industries display case. This manual contains important instructions for installing and servicing the IMSS Models. A repair parts list and wiring diagrams are also included in the manual. Read all of these documents carefully before installing or servicing your case. -
Page 4: Warning Labels & Safety Instructions
This is important installation, operation, or service information. If you ignore the message, you may damage your case. The warning and safety labels shown throughout this manual are placed on your Federal Industries case at the factory. Follow all warning label instructions. If any warning or safety labels become lost or damaged, call our customer service department at 1(800) 356-4206 for replacements. -
Page 5: Pre-Installation Procedures
-See the electrical data plate located on the base end, for proper circuit size and wire ampacity. -Standard Base Electrical Connection: The electrical connection box is in the base for floor electrical connection. The box is accessible by removing base panel. See “Panel Removal HXISS E3412 - 5 -... -
Page 6: Cord Connected
- The cord is factory installed protruding from the corner of the case. -A separate circuit for each display case is required to prevent other appliances on the same circuit from overloading the circuit and causing malfunction. HXISS E3412 - 6 -... -
Page 7: Removing Case From Shipping Skid
NOTE: Use a wood or plastic shim under each leg leveler to avoid scratching the tile floor. SEALING THE UNIT TO FLOOR After the unit is positioned and the leg levelers are turned out, the unit needs to be sealed to the floor for NSF approved installation. HXISS E3412 - 7 -... -
Page 8: Base Panels Removal
Louvered panels and solid panels have different mounting hole spacing to prevent wrong placement of panels. NOTE: solid panel with sound deadening pad should be installed in front of condensing unit coil to reduce condenser noise. HXISS E3412 - 8 -... -
Page 9: Base Component Layout
CONDENSATE PUMP HOSE CONTROL LED MUST RUN TO DRAIN READ OUT POWER CONNECTION BOX 19. 0 CONDENSATE REFRIGERATION PUMP SIGHT GLASS 7/8 FLOOR ELECTRICAL CONNECTION 12.00 FLOOR ACCESS HOLE DATA PLATE REFRIGERATION CONTROL SOLENOID VALVE HXISS E3412 - 9 -... -
Page 10: Condensate Pump
Note: There is a piece of cardboard that has to be removed from the side of the pump to free up the float. If this is not done, the pump will not turn on and the pan will overflow. HXISS E3412 - 10 -... -
Page 11: Shelves
Shelves The HXISS has (2) solid metal shelves with LED lighting as standard. There are (4) brackets required for each shelf. The bracket with cord retainer clip must be used where the light cord plugs in. The shelves can be placed in (2) height locations depending on product load. - Page 12 7. Push shelf light cords into plastic shelf cord retainer clip located on inside of shelf bracket. SHELF CORD RETAINER CLIP 8. Removal of shelving is performed by following steps in reverse order. HXISS E3412 - 12 -...
-
Page 13: Operating Instructions
The number of times and length of defrost will vary depending on case environment. Alarm light This light indicates that there is a problem with case or electronic control and service should be called. HXISS E3412 - 13 -... -
Page 14: Initial Start Up
ONLY. NOTICE: This refrigerated display case is designed to operate in a maximum environment of 75 DEG. F and 55% relative humidity. Exceeding these limits will cause poor case performance and sweating of glass panels. HXISS E3412 - 14 -... -
Page 15: Maintance
SURFACE OF CONDENSER COIL CONDENSER SERVICE: Condenser can be pulled out for service. Remove condenser retainer screw from base and pull condenser handle to slide condenser out. Turn handle 90deg as a condenser standoff from floor. HXISS E3412 - 15 -... -
Page 16: Cleaning Instructions
3. IMPORTANT: Cleaning the clear acrylic plastic front air deflector requires special care to prevent hazing and yellowing of material. Clean as described in “Acrylic Air Deflector Cleaning” section of this manual. HXISS E3412 - 16 -... -
Page 17: Weekly Cleaning
Dry with soft dry towel 5. Lift the display decks up and out of evaporator tub one at a time. There is a flange on each display deck panel that hooks under the display deck panel next to it.. HXISS E3412 - 17 -... -
Page 18: Service Information
Service problems or request for repair parts from authorized service agencies, trained service personnel, or owners should be referred to: TECHNICAL SERVICE DEPARTMENT Federal Industries P.O. Box 290 Belleville, WI 53508 Toll Free: (800) 356-4206 / WI Phone (608) 424-3331 Fax: (608) 424-3234 HXISS E3412 - 18 -... -
Page 19: Pre-Service Checklist
Check that drain lines from pump is not plugged or pinched. Check to see that pump float is operating correctly. Verify that pump is plugged in and has power. Replace pump if still not pumping condensate. HXISS E3412 - 19 -... -
Page 20: Special Service Situations
If moisture or liquid is observed around or under a Federal Industries case, an immediate investigation should be made by qualified personnel to determine the source of the moisture or liquid. -
Page 21: Sale & Disposal
SALE & DISPOSAL If you the owner sells or gives away this Federal Industries case it is the owner’s responsibility to make sure that all safety labels and the Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries will provide them free of charge. -
Page 22: Control Operation
Control parameter changes can only be made by downloading a new set of parameters via a program chip supplied by Federal Industries. The pre set control parameters are listed on the chart in the Settings Chart below. -
Page 23: Control Factory Setting
The control parameters are set at the factory and cannot be manually changed in the field. Control parameter changes can only be made by downloading a new set of parameters via a program chip supplied by Federal Industries E3380 FACTORY... -
Page 24: Control Display
The solenoid valve closes and shuts off the refrigeration flow to the unit and initiates a pump down cycle. This will allow the remote low pressure switch to open and shut off remote compressor. HXISS E3412 - 24 -... - Page 25 COILS REMOTE PROBE HIGH LOW PRESSURE SIGHT GLASS CONTROL HIGH DRIER/FILTER FUSED FUSED POWER CASE POWER SUPPLY ELECTRONIC SUCTION LINE CONTROL SOLENOID VALVE SERVICE VALVES REMOTE SUCTION LINE (INSULATED) FIELD CONNECTION CONDENSING LIQUID LINE UNIT HXISS E3412 - 25 -...
-
Page 26: Parts List
PARTS LIST REPLACEMENT PARTS Refrigeration System Federal Part Number Condensing Unit (Self Contained) 30-17889 Evaporator Coil Assy (COILS & TXV) SA5135 Evaporator Coil EA, CASE USES (2) 33-13283 Expansion Valve TXV 32-19416 Sight Glass 32-54010 Refrigerant Filter/Drier 32-11561 Solenoid Valve 3/8 (Remote) -
Page 27: Wiring Drawing
Case Wiring Diagrams Self Contained Models BEFORE 5/23/12 91-19432 9/5/11 SHELF LAMP TOP LAMP HXISS SELF CONTAINED COLOR CODE SHELF LAMP TOP LAMP B = BLACK BL = BLUE G = GREEN W = WHITE Y = YELLOW R = RED... - Page 28 Remote Models BEFORE 5/23/12 SHELF LAMP 91-19433 9/5/11 TOP LAMP HXISS REMOTE COLOR CODE SHELF LAMP TOP LAMP B = BLACK BL = BLUE G = GREEN W = WHITE Y = YELLOW R = RED B/BL B/BL SHELF LAMP...
- Page 29 Self Contained Models AFTER 5/23/12 91-19634 REV A SHELF LAMP TOP LAMP HXISS SELF CONTAINED COLOR CODE SHELF LAMP TOP LAMP B = BLACK BL = BLUE G = GREEN W = WHITE Y = YELLOW R = RED B/BL...
- Page 30 Remote Models AFTER 5/23/12 SHELF LAMP 91-19635 REV A TOP LAMP HXISS REMOTE COLOR CODE SHELF LAMP TOP LAMP B = BLACK BL = BLUE G = GREEN W = WHITE Y = YELLOW R = RED B/BL B/BL SHELF LAMP...
- Page 31 HXISS E3412 - 31 -...
