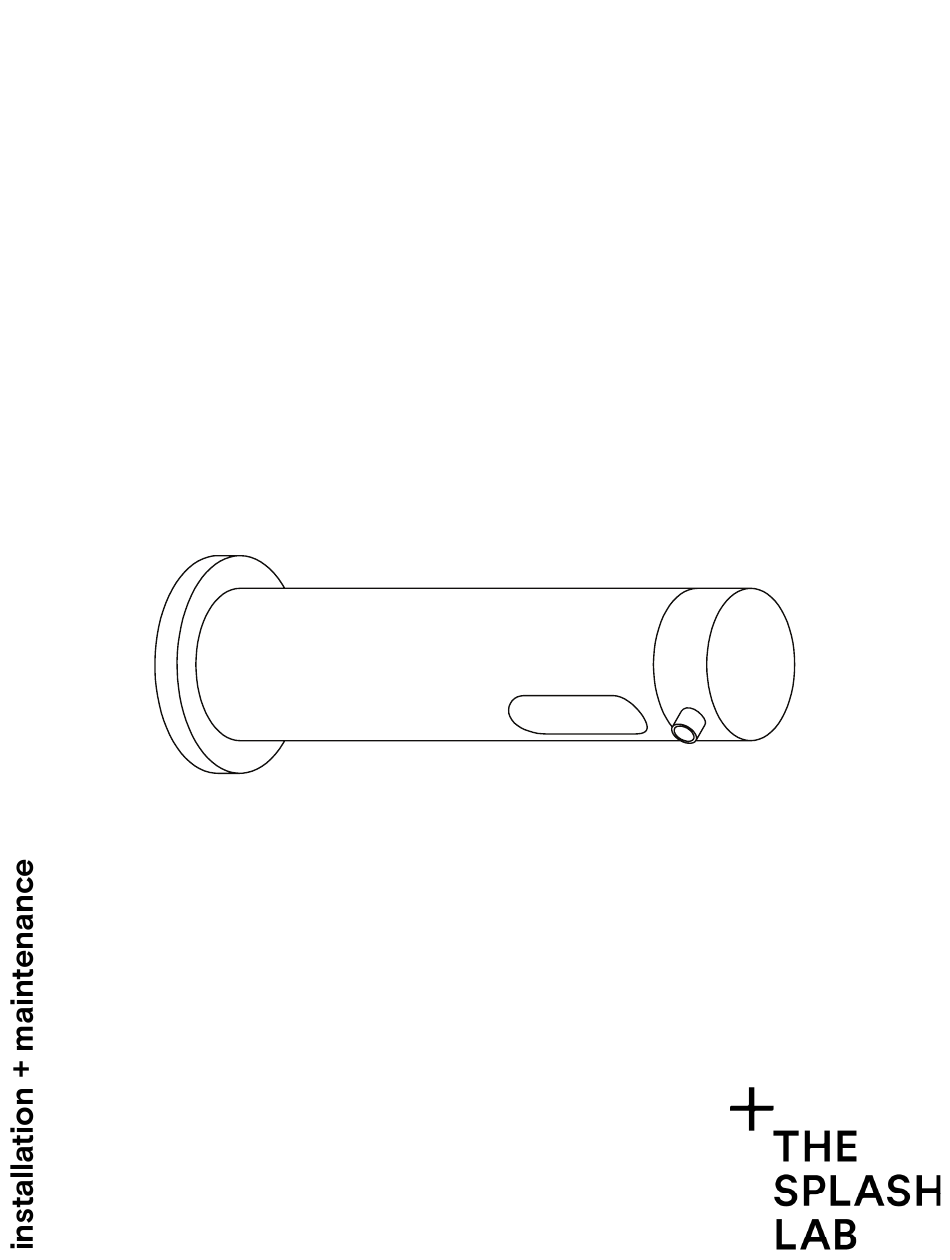

- Page 1 L-460 Panel Mounted Sensor Operated Soap Dispenser...
-
Page 2: Table Of Contents
Box contents Technical data L-460C Technical data L-460CS Before you install How to install Filling the soap Setting adjustment with a remote control Operation + maintenance Troubleshooting Warranty Contact us 2 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... -
Page 3: Box Contents
1 x M 4 x 4 Set Screw 1 x Bottle Support 1 x Soap tank and pump assembly 2 x Screw 3.5x1 1/4” Transformer 2 x 5 mm Anchors 3 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... -
Page 4: Technical Data L-460C
Body brass Chrome plated Soap system 1 litre soap bottle and pump (IP68 rated 12V transformer with push-fit ca- Power supply unit (PSU) bling to dispenser) Warranty 1 years limited warranty 4 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... - Page 5 L-460C SIDE FRONT MONTH CUTOUT 5 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL...
-
Page 6: Technical Data L-460Cs
AISI 316 Stainless Steel Soap system 1 litre soap bottle and pump Mains power (IP68 rated 12V transformer with Power supply unit (PSU) push-fit cabling to dispenser) Warranty 1 years limited warranty 6 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... - Page 7 L-460CS SIDE FRONT MAINS CUTOUT 7 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL...
-
Page 8: Before You Install
The sink countertop ledge can protrude no more than 50mm (2”) from the back wall. Important: Keep in mind that the location of the user hands, while using the faucet nearby should not interfere with the soap dispenser sensor detection area. 8 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... -
Page 9: How To Install
The sink countertop ledge can protrude no more than 50mm (2”) from the back wall. Important: Keep in mind that the location of the user hands, while using the faucet nearby should not interfere with the soap dispenser sensor detection area. 9 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... - Page 10 Disk Hexagonal nut 4. Fix the bottle support to the desired location. 5. Assemble the tube from the pump to the soap dispenser. 06 • 07 10 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL...
- Page 11 Connect transformer into the electricity supply and connect the transformer connector 3. Wait about 10 seconds before you put your hands within the sensor range. seconds 11 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL...
-
Page 12: Filling The Soap
To refill out of the soap the soap tank dispenser please refer to spout. This steps 1-5. operation can also be done using the soap dispenser remote control Refill function. 12 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... -
Page 13: Setting Adjustment With A Remote Control
Once the soap tank has been refiled, press the FILL button. The pump would work for one minute in order for the soap to start coming out of the soap dispenser spout. To stop this activity press the FILL button again. 13 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... -
Page 14: Operation + Maintenance
A good quality liquid soap of viscosity 100 – 3800 cPs units should be used. Hand cleaners containing abrasive particles should not be used as this will cause damage to the pump mechanism. The Splash Lab recommend the range of hand soaps available from Selden Research. Visit www. selden.co.uk for further details. spare parts For warranty terms and conditions please visit www.thesplashlab.com/uk... -
Page 15: Troubleshooting
Soap coming out from the The black connector between Connect the black connectors spout does not stop the pump assembly and soap all the way through. dispenser are not connected all the way through. 15 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL... -
Page 16: Warranty
Sensor-operated soap dispenser 1 year limited warranty If a defect is found in normal use, The Splash Lab will, at their discretion, repair, provide a replace- ment part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. -
Page 17: Contact Us
General information info.uk@thesplashlab.com +44 (0)161 482 7000 Unit 34, Meadow Industrial Estate, Water Street Stockport SK1 2BU United Kingdom Technical support info.uk@thesplashlab.com For further information visit: www.thesplashlab.com/uk 17 + L-460 PANEL MOUNTED SENSOR OPERATED SOAP DISPENSER MANUAL...
