Pichler 18020 Instruction Manual

T-28 trojan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
95% ALMOST READY TO FLY
Optional Accessories (recommended)
Brushless Motor BOOST 180, # 15662
[2] LiPo Battery LEMONRC 6300-6S, # 15743
[11] MASTER Digital Servo DS8040, # C8449
NGH Gas Engine GT65, # 17088
- Controller box.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18020 and is the answer not in the manual?

Questions and answers

Related Manuals for Pichler 18020

Summary of Contents for Pichler 18020

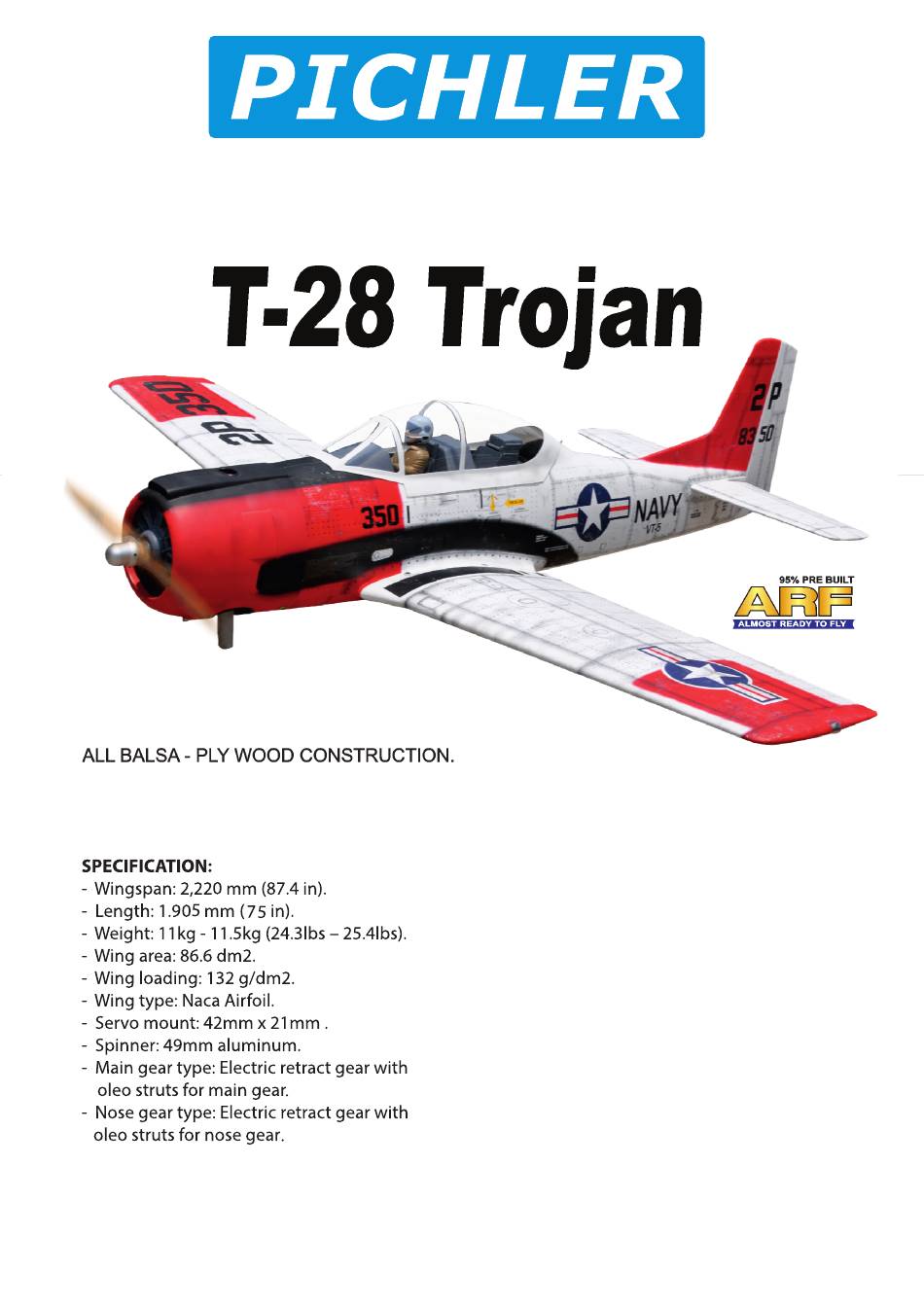

  • Page 1 Instruction Manual 95% ALMOST READY TO FLY Optional Accessories (recommended) Brushless Motor BOOST 180, # 15662 [2] LiPo Battery LEMONRC 6300-6S, # 15743 [11] MASTER Digital Servo DS8040, # C8449 NGH Gas Engine GT65, # 17088 - Controller box. Made in Vietnam.
  • Page 2 Cowling dimensional detail I/c flying warnings I/c flying guidelines...

  • Page 3: Warranty

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 WARRANTY IMPORTANT BUILDING NOTES Black Horse Model guarantees the component parts Please trial fit all the parts. Make sure you have the in this kit to be free from defects in both material and correct parts and that they fit and are aligned properly workmanship at the date of purchase by the before gluing! This will assure proper assembly.

  • Page 4: Flight Warnings

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS When ready to fly, first extend the transmitter aerial. Thin CA Switch on the transmitter. 30-minute epoxy Switch on the receiver. 6-minute epoxy Check that the wings are correctly fitted to the Threadlocker thread locking cement fuselage.
  • Page 5 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.) 3.

  • Page 6: Parts Listing (Not Included)

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 PARTS LISTING (NOT INCLUDED). Propeller: Suit with your engine. LiPo.6s 5500mAh ..2Packs Engine: 55-65 ..1 pcs. Brushless outrunner 5000 - 6500W, 180KV. Servo extension leads....2pcs. 330mm ..2pcs. 190mm ..2pcs.
  • Page 7 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan Item code: BH189 1: Fuselage (1a: Pilot,1b: Engin mount, 1c: Motor mount ). 8: Rudder spare part. 13: Nose gear spare part 2: Wing (2a(right wing); 2b(left wing); 2c: Aluminium wing tube ). 9: Cowling spare part. 14: Nose gear door 3: Horizontal stabilizer 10: Fuel tank spare part.

  • Page 8: Table Of Contents

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan Item code: BH189 4x20mm Button Head 4x42mm 115mm Wheel Cap Screw Controller Box - - - 2 - - - 8 - - - 2 BRAKE BRAKE R RETRACT R BRAKE L - - - 1 4mm Spring Washer RETRACT 7.

  • Page 9: Installing The Ailerons And Flaps

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE AILERONS AND FLAPS. 44mm Pinned hinge Horn - - - 4 - - - 4 67mm Pinned hinge Bottom View - - - 6 44mm Pinned hinge 67mm Pinned hinge Horn The number of times...

  • Page 10: Installing The Ailerons And Flaps Servos

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Bottom View INSTALLING THE AILERONS AND FLAPS SERVOS. Place the servo into the servo tray. Center the servo within the tray and drill 1.5mm pilot holes through the block of wood for each of the four mounting screws provided with the servo.
  • Page 11 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Aileron Aileron servos. 3 mm approx.16mm Aileron Aileron Flat Washer 3mm Lock Nut 3x12mm Button Head Cap Screw Aileron Aileron 1.5mm Screw 2x10mm Aileron Aileron Tp Screw 1.5mm Cut off shaded portion Drill holes using the stated.
  • Page 12 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Flaps Flaps servos. 3 mm approx.16mm For Flap. For Flap. 3mm Flat Washer 3mm Lock Nut 3x12mm Button Head Cap Screw Flap FLAP 1.5mm Lock Nut Screw 3x12mm Button Head Cap Screw Flap 2x10mm...
  • Page 13 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 2x10mm Tp Screw Bottom View Aileron Aileron Aileron Horn 3mm Lock Nut 3x12mm Button Head Cap Screw Top View Plastic The number of times the same way Assembly (in this case twice). Assemble left and right Cut off shaded portion Apply epoxy glue.

  • Page 14: 4X42Mm

    INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan T-28 Trojan T-28 Trojan Item code: BH189 Item code: BH189 INSTALLING THE ELECTRIC RETRACTABLE LANDING GEAR INSTALLING THE ELECTRIC RETRACTABLE LANDING GEAR 4x20mm Button Head Controller Box 115mm Wheel 4x42mm Cap Screw - - - 1...
  • Page 15 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Bottom View 4x4mm Set Screw Apply threadlocker Assemble left and right (screw cement). sides the same way...

  • Page 16: Plastic Gear Door

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE GEAR DOOR Plastic Gear Door Plastic Ball link Pinned hinge 3x16mm Button Head - - - 2 Cap Screw - - - 2 - - - 4 - - -1 - - -4 3mm Flat Washer...

  • Page 17: 3X12Mm Button Head

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 3x12mm Button Head Cap Screw Flat Washer Bottom View 3mm Lock Nut Aluminum Ball 2.6x40mm 2x10mm Tp Screw - - - 8 2x10mm Tp Screw ELECTRIC RETRACT SYSTEM Main Wheel Receiver Main Wheel POWER 7.4v...

  • Page 18: Installing The Fuselage Servos

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE FUSELAGE SERVOS 1) Install the rubber grommets and brass collets into the elevator, rudder and throottle servor. Test fit the servos into the servo tray. Trim the tray if necessary to fit your servos. 2) Mount the servo to the tray using the mounting screws provided with your radio system.
  • Page 19 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE MAIN GEAR DOOR SERVOS Ball link Steering arm 4x5mm Set Screw 6x80mm 3mm Spring Washer - - - 3 Alignment Pins Aluminium - - - 3 - - - 4 - - - 6 3x12mm Button Head - - - 1...

  • Page 20: ( R )

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Top View MAIN GEAR DOOR ( L ) ( R ) Bottom View 2x10mm TP Screw Nose Gear The number of times Ensure smooth, non-binding Assemble left and right the same way Assembly sides the same way.
  • Page 21 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Ball Link Ball Link 2.6x 90mm Pushrod Elevator 3mm Lock Nut Nose Gear 3x12mm Button Head Cap Screw Flat Washer Nose Gear Assemble left and right sides the same way.

  • Page 22: Installing The Nose Gear Retract

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE NOSE GEAR RETRACT Ball link 4x20mm Button Head 3x12mm Button Head Cap Screw Cap Screw - - -2 - - - 1 - - - 4 Aluminum Ball link 3mm Flat Washer - - -1 4mm Spring Washer...
  • Page 23 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE NOSE GEAR DOOR SERVOS 10x100mm 3x12mm Button Head 3mm Spring Washer Ball link Aluminium Alignment Pins Cap Screw - - - 1 - - - 4 Steering arm 3mm Flat Washer - - -6 - - - 2...

  • Page 24: ( L )

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Top View Aluminum Ball 2.6x90mm NOSE GEAR DOOR Gear Door 2x10mm TP Screw - - - 16 ( R ) Plastic Hinges ( L ) - - - 1 - - - 4 Bottom View 2x10mm TP Screw...
  • Page 25 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Bottom View 2x10mm TP Screw Bottom View 3mm Flat Washer 3x12mm Button Head Cap Screw The number of times Assemble left and right Ensure smooth, non-binding the same way Assembly sides the same way.
  • Page 26 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Bottom View Bottom View...

  • Page 27: Installing Horizontal Stabilizer

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING HORIZONTAL STABILIZER 44mm Pinned Hinge 2.6x798mm Push rod 3mm Flat Washer - - - 2 - - 2 - - - 2 - - - 6 3x12mm Button Head Horn 3mm Lock Nut Ball link...
  • Page 28 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Bottom View Push rod Ball link Aluminium ball 3mm Lock Nut 3x12mm Horn Button Head Cap Screw Bottom View Cut off shaded portion Assemble left and right Apply epoxy glue. sides the same way.
  • Page 29 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 3x12mm Button Head Cap scew Flash washer Push rod Ball link Servo tail 3mm Lock Nut Elevator servo...

  • Page 30: Installing The Rudder

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE RUDDER 44mm Pinned Hinge Horn 3mm Flat Washer - - - 1 - - - 5 - - - 2 - - - 1 2.6x838mm Push rod 3mm Lock Nut 3x12mm Button Head Ball link...
  • Page 31 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 3x12mm Button Head Cap scew Flash washer Push rod Ball link Servo tail 3mm Lock Nut Rudder servo...

  • Page 32: Installing The Engine Mount

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE ENGINE MOUNT May be you also need to trim some wood from the tri-angle wood for the installation is easy. Using plate of plywood (supplied with the kit) mark the holes onto the fire wall for installing the engine mount for G/P 61CC or NGH GT65 Throttle Lever...

  • Page 33: Installing The Engine

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE ENGINE 5x16mm Flat washer 5x20mm Socket Head 5mm Spring Washer Plywood engin Mount - - - 1 Cap Screw - - - 5 - - - 5 - - 5 5x12mm Flat washer 5mm Lock Nut...
  • Page 34 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 700cc...
  • Page 35 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189...
  • Page 36 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 5) Test fit the stopper assembly into the tank. It may 1) The stopper has been pre-assembled at the be necessary to remove some of the flashing around factory. the tank opening using a modeling knife.

  • Page 37: Installing The Throttle

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE THROTTLE direction. When the throttle stick is moved forward from idle to full throttle, the throttle barrel should Connector - - - - 1 also open and close using this motion. If not, reverse the direction of the servo, using the 1) Install one adjustable metal connector through transmitter.

  • Page 38: Mounting The Cowl

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 MOUNTING THE COWL Cowling Dummy engine 4x16mm Button Head Cap Screw - - - 4 4mm Aluminium Washer - - - 1 - - - 1 - - - 4 4x16mm Button Head Cap Screw 4mm Aluminium Washer...

  • Page 39: Installing The Switch, Receiver And Battery

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE SWITCH, RECEIVER AND BATTERY 1) Plug the servo leads and the switch lead into INSTALLING THE SWITCH the receiver. You may want to plug an aileron 1) The switch should be mounted on the fuselage extension into the receiver to make plugging in the side, opposite the muffler, close enough to the aileron servo lead easier when you are installing...
  • Page 40 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Top View Top View Apply epoxy glue.
  • Page 41 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Top View Top View...

  • Page 42: Installing The Wing To The Fuselage

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 INSTALLING THE WING TO THE FUSELAGE ø 32x768mm Aluminium wing tube. - - - 1 6X50 Aluminium - - - 4 Top View 6X50 Aluminium ø 32x768mm Aluminium wing tube. Top View Top View Apply threadlocker...

  • Page 43: Installing The Propeller And Spinner

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Top View 3mm Hex wrench Main wing must be inserted and attached completely before fixing with screw. Hex wrench INSTALLING THE PROPELLER AND SPINNER 3x8 mm Button 49mm Head Cap Screw - - - 1 - - - 1 - - - 4...

  • Page 44: Installing The Electric Motor

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Top View INSTALLING THE ELECTRIC MOTOR INSTALLING THE ELECTRIC MOTOR (EP VERSION) 5x25mm Socket Head 5x16mm Flat Washer 6x25mm Plastic Screw 5x12mm Flat washer Motor Mount Cap Screw - - - 4 - - - 4 - - - 1 - - - 4...
  • Page 45 INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 Zip tie Lock Nut 5x16mm Flat Washer 5x12mm Flat Washer Spring Washer 5x25mm Socket Head Cap Screw 6x25mm Plastic Screw Must be purchased separately!

  • Page 46: Lateral Balance

    INSTRUCTION MANUAL INSTRUCTION MANUAL T-28 Trojan T-28 Trojan Item code: BH189 LATERAL BALANCE BALANCING It is critical that your airplane be balanced After you have balanced a plane on the C.G. correctly. Improper balance will cause your plane to You should laterally balance it. Doing this will lose control and crash.

  • Page 47: Control Throws

    INSTRUCTION MANUAL INSTRUCTION MANUAL Messerschmitt BF 109G T-28 Trojan Item code: BH188 In order to obtain the CG specified, reposition the receiver and other equipment. If not obtain the CG specified, add a weight and adjust. Top View Do not fly before confirming the correct location of the CG.

  • Page 48: Main Gear Dimensional Detail

    INSTRUCTION MANUAL INSTRUCTION MANUAL Messerschmitt BF 109G T-28 Trojan Item code: BH188 MAIN GEAR DIMENSIONAL DETAIL 117mm 70mm 32.5mm 57mm 19mm 5.1mm holes NOSE GEAR RETRACT 70mm 32.5mm 117mm 57mm 19mm 6.1mm holes 23.5mm...
  • Page 49 INSTRUCTION MANUAL INSTRUCTION MANUAL Messerschmitt BF 109G T-28 Trojan Item code: BH188 COWLING DIMENSIONAL DETAIL 247mm...

  • Page 50: For Your Radio Installation Basic Connection For Airplane And Adjustment Of Servos

    INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL Messerschmitt BF 109G Messerschmitt BF 109G T-28 Trojan T-28 Trojan Item code: BH188 Item code: BH188 FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS For more information, refer to radio system instruction manual. Example of connection Follow instruction manual of Engine and Battery.
  • Page 51 INSTRUCTION MANUAL INSTRUCTION MANUAL Messerschmitt BF 109G T-28 Trojan Item code: BH188...
  • Page 52 I/C FLYING WARNINGS Always operate in open areas, away from fly near power lines,aerials or AL WAYS adjust the engine from behind NEVER factories, hospitals, schools, buildings other dangerous areas including airports, the propeller, and do not allow any part of and houses etc.
  • Page 53 I/C FLYING GUIDELINES Operate the control sticks on the ALWAYS land the model INTO When ready to fly, first extend transmitter and check that the the wind, this ensures that the the transmitter aerial. control surfaces move freely and in model lands at the slowest possible the CORRECT directions.
