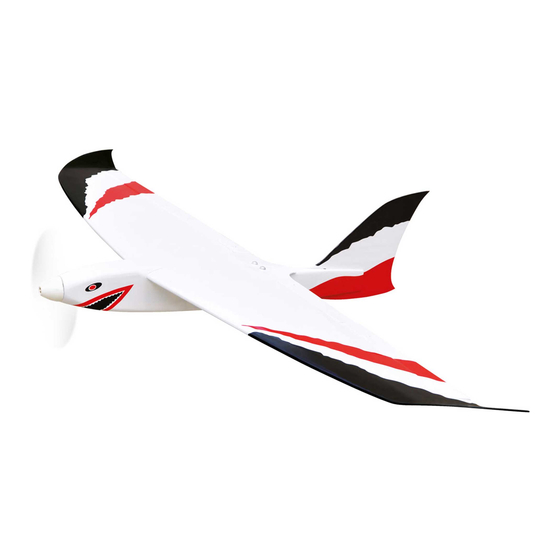

Technische Daten
Spannweite :
1600 mm
Länge
:
770 mm
Gewicht
:
1100 - 1600 g
R/C
:
4 Kanal
Servo
:
4 Servos
Hinweis zur Antriebswahl
Der Killer Hai fliegt mit dem Antriebssatz
C4390 bereits sehr flott.
Wenn es allerdings wie eine Rakete
senkrecht nach oben gehen soll, empfehlen
wir den Antrieb C5554
Instruction Manual book
Sonderzubehör (empfohlen)
Antriebssatz Killer Hai
(Brushless-Motor,
Brushless-Regler, Turbospinner
Luftschraube, Kleinteile)
LiPo Akku LEMONRC 3300-3S, Best.Nr. C1145
Servo S3212, Best.Nr. C1130
Antriebssatz Killer Hai „Tuning"
(Brushless-Motor handgewickelt, ca. 15% Mehrleistung
Brushless-Regler, Turbospinner
Luftschraube, Kleinteile)
LiPo Akku LEMONRC 3300-4S, Best.Nr. C1446
Best.Nr. C4390
Best.Nr. C5554

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KILLER HAI and is the answer not in the manual?

Questions and answers

Related Manuals for Pichler KILLER HAI

Summary of Contents for Pichler KILLER HAI

  • Page 1 LiPo Akku LEMONRC 3300-3S, Best.Nr. C1145 Servo 4 Servos Servo S3212, Best.Nr. C1130 Hinweis zur Antriebswahl Der Killer Hai fliegt mit dem Antriebssatz Antriebssatz Killer Hai „Tuning“ Best.Nr. C5554 C4390 bereits sehr flott. (Brushless-Motor handgewickelt, ca. 15% Mehrleistung Brushless-Regler, Turbospinner...

  • Page 2: Instruction Manual

    KILLER HAI Instruction Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your Killer Hai. Use the parts listing below to identify all parts. WARNING. Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    KILLER HAI Instruction Manual Do not flip the propeller with your fingers. SAFETY PRECAUTION. + Keep loose clothing and wires away from the propeller. + This is not a toy + Do not start the engine if people are near.

  • Page 4: Installing The Aileron Servos

    KILLER HAI Instruction Manual 3) Using the thread as a guide and using I. AILERON. masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. 1.INSTALLING THE AILERON SERVOS. When you have pulled the servo lead out, re-...

  • Page 5: Installing The Aileron Linkages

    KILLER HAI Instruction Manual Secure Mark poin. Bottom side 2.INSTALLING THE AILERON CONTROL HORN. 2mm X 12mm. 1) Using a ruler & pen to draw a straight line as below picture. Secure 3.INSTALLING THE AILERON Mark line. LINKAGES. Installing the air brake linkages as pictures below.

  • Page 6: Installing The Flap Servos

    KILLER HAI Instruction Manual II.FLAP 1.INSTALLING THE FLAP SERVOS. C/A glue thread Flap Electric wire Secure. 2 x 10mm Secure.

  • Page 7: Joining The Wing Halves

    KILLER HAI Instruction Manual INSTALLING ELECTRIC MOTOR. Bottom side Front view. Repeat the procedure for the other wing half. JOINING THE WING HALVES. INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 12mm wood screws.
  • Page 8 KILLER HAI Instruction Manual 2.INSTALLING THE FLAP CONTROL HORN. Secure. 2mm X 12mm. 3.INSTALLING THE FLAP LINKAGES. Installing the air brake linkages as pictures below. flap pushrod. Micro control Mark line connector. Straitgh line. C/A glue Mark poin. Secure.

  • Page 9: Vertical Installation

    READ NEXT VERTICAL INSTALLATION. PAGE ABOUT FIRST FLIGHT HINTS AND ADJUSTMENTS Lesen Sie die nächste Seite sorgfältig: Erstflug und Einstelltipps C/A glue WING AT TACHMENT. Installing the fuselage hatch as same as pic- ture below Schwerpunkt / C.G. Drill a hole 4mm diameter 84mm + / - 3mm...
  • Page 10 Das Modell wird mit laufendem Motor leicht nach oben geworfen, sonst zieht der Motorsturz das Modell zuerst nach unten. Hat man den empfohlenen PICHLER Boost Motor drin geht es senkrecht nach oben... Nach ein paar Eingewöhnungsrunden sollte der Schwerpunkt überprüft werden. Geht der Killer-Hai selbst mit leicht gezogenem Höhenruder stark nach unten und lässt sich nicht langsam machen ist der Schwerpunkt...
