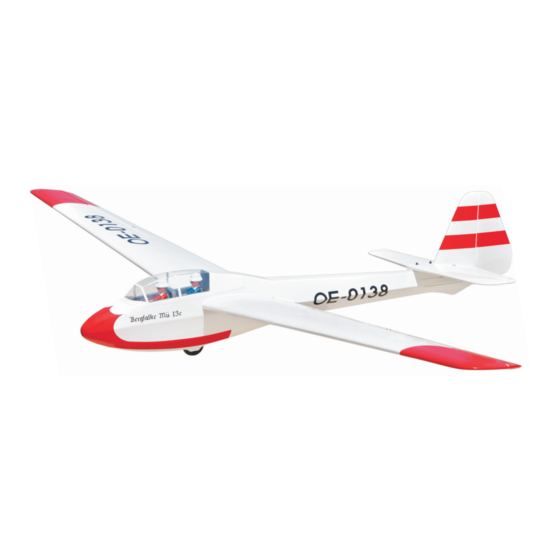

R/C Modellflugzeug in Holz-Fertigbauweise
Sonderzubehör:
# C5398, Elektrische Störklappen
# C7089, Antriebssatz Brushless für Bergfalke 3000
# C4995, Servo DS3012
# C4994, Servo DS4020
3000
Optional Accessories:
# C5398, Electric Spoilers (flaps)
# C7089, Power Set Brushless for Bergfalke 3000
# C4995, Servo DS3012
# C4994, Servo DS4020

Advertisement

loading
Need help?

Need help?

Do you have a question about the PICHLER BERGFALKE 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Pichler PICHLER BERGFALKE 3000

Summary of Contents for Pichler PICHLER BERGFALKE 3000

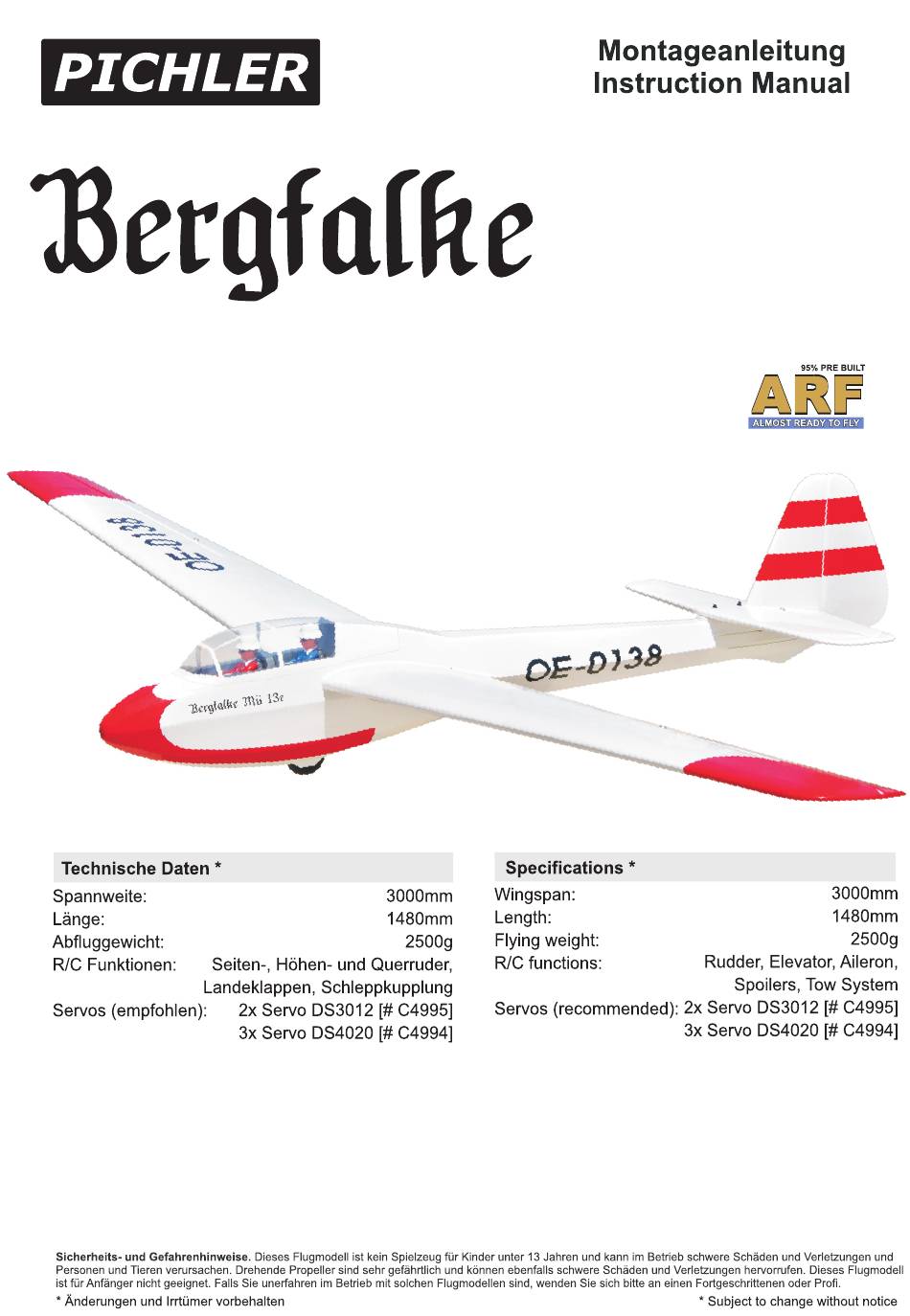

  • Page 1 3000 R/C Modellflugzeug in Holz-Fertigbauweise Sonderzubehör: Optional Accessories: # C5398, Elektrische Störklappen # C5398, Electric Spoilers (flaps) # C7089, Antriebssatz Brushless für Bergfalke 3000 # C7089, Power Set Brushless for Bergfalke 3000 # C4995, Servo DS3012 # C4995, Servo DS3012 # C4994, Servo DS4020 # C4994, Servo DS4020...
  • Page 2 Bergfalke Rudder E. Aluminium tube wing dihedral brace. Test fit the ailerons to the wing with the hinges. If the hinges don’t remain centered, stick a pin through the middle of the hinge to hold it in position. Temporary pin to keep hinge centered.
  • Page 3 Bergfalke Electric wire Install the rubber grommets and brass eyelets on to the aileron servos. Using a modeling knife, remove the covering from over Place the servo into the servo tray. Center the servo the pre-cut servo arm exit hole on the aileron servo tray within the tray and drill 1.5mm pilot holes through the /hatch.This hole will allow the servo arm to pass block of wood for each of the four mounting screws...

  • Page 4: Installing The Aileron Linkages

    Bergfalke Installing Electric Spoilers. Installing the aileron linkages Installing the aileron linkages as pictures below. Installing the Electric Spoilers as pictures below. lock nut Not included Snap keeper. 100mm Using pliers, carefully make a 90 degree bend down at the mark made. Cut off the excess wire, leaving about 6mm beyond the blend.

  • Page 5: Installing The Fuselage Servos

    Bergfalke Power Set for Bergfalke available seperately # C7089 Rudder install as same as the way of aileron. Antriebsset Bergfalke Please see pictures below: separat erhältlich 150mm Ball bearing (not included) nicht enthalten Installing the fuselage servos 1. Install the rubber grommets and brass collets into the elevator, rudder.
  • Page 6 Bergfalke 2) Draw a center line onto the horizontal stabilizer. Then put the horizontal into the fuselage. Check the fit of the horizontal stabilizer in its slot. Make sure the horizontal stabilizer is square and Using pliers, carefully make a 90 degree bend down centered to the fuselage by taking measurements, but at the mark made.
  • Page 7 Bergfalke Elevator control horn and linkage install as same as the Servo arm way of aileron. Please see pictures below. Secure Cut. Snap keeper. Elevator pushrod Installing The Receiver, ESC And Battery Regler ESC Receiver 3x12mm Battery tray Repeat the procedure to install the second e levator control horn and linkage Befestigen...
  • Page 8 Bergfalke Attach the aluminium tube into the fuselage. Push in Magnet Push in Push in Push in Screw the wing panel in position. A/B Epoxy glue Secure Push in Secure...
  • Page 9 50mm Aileron: 25mm up 15mm down Elevator: 25mm up 25mm down (30%Expo) Rudder: 50mm right 50mm left 25mm 15mm 25mm 25mm 50mm 50mm Rudder control © Copyright PICHLER Modellbau www.pichler-modellbau.de...
