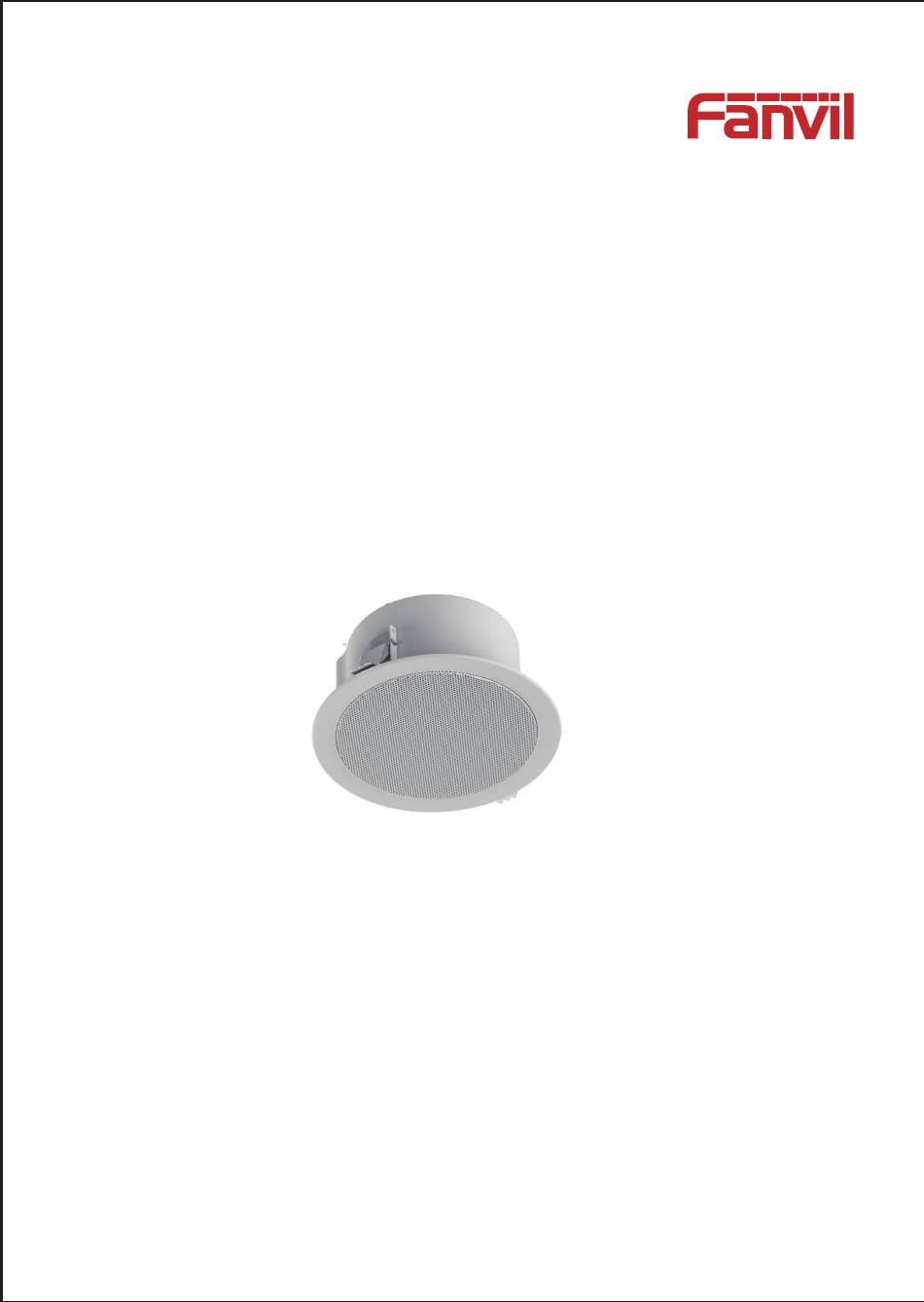

- Page 1 A201 SIP Ceiling Speaker Quick Installation Guide...
-
Page 2: Package Contents
Package Contents A��� Horn Speaker Quick Installation Guide A201 Ceiling speaker Quick Installation Guide Physical Specification Φ200*90mm Size Description 1) Panel Bracket Wiring harness... - Page 3 2) Interface Description ① ② ① ③ ② ③ ④ Serial Interface Description number + S� The short circuit input interface: input devices for connecting switches, infrared sensor, door sensor, vibration sensors etc. ① Ethernet interface: standard RJ�� interface, ��/���M adaptive, support PoE powered, it is recommended to use CAT�...
- Page 4 Fanvil Technology Co., Ltd Website: www.fanvil.com EMail: sales@fanvil.com support@fanvil.com Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Add: 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China...
-
Page 5: Installation Diagram
Installation Diagram A.Drill a Φ175mm hole on the ceiling. B.Connect the wiring harness and lift the clip. C.Clamp the product to the mounting surface with the clip. D..Power on the device,If it works normally, the installation is complete. - Page 6 Searching IP Address The default WAN mode is DHCP, Querying the IP address with the Device Manager： Ceiling Speaker Setting Step 1: Log in the web setting page of ceiling speaker Input IP address of indoor station (e.g. http:// 172.18.26.3) into the address bar of PC’s web browser.
- Page 7 Step 2：Add the SIP Account Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters. Select “Activate”, and then click “Apply” to save this setting. A233 Step 3：Device Setting...
- Page 8 Step 4：Security Settings If you need to connect other input and output devices.please set the Input and Output setting in the Security Settings： This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received;...
