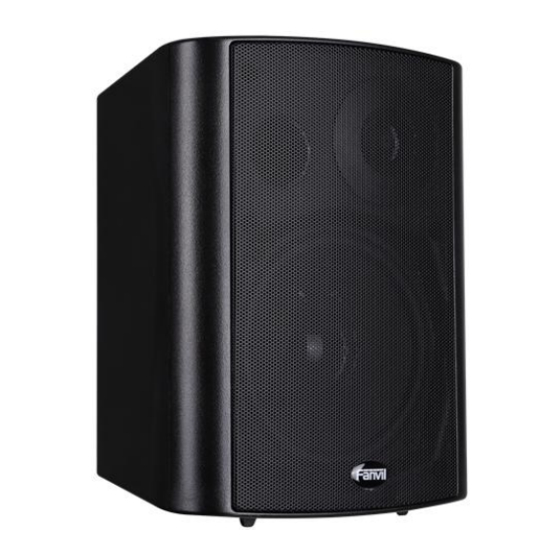

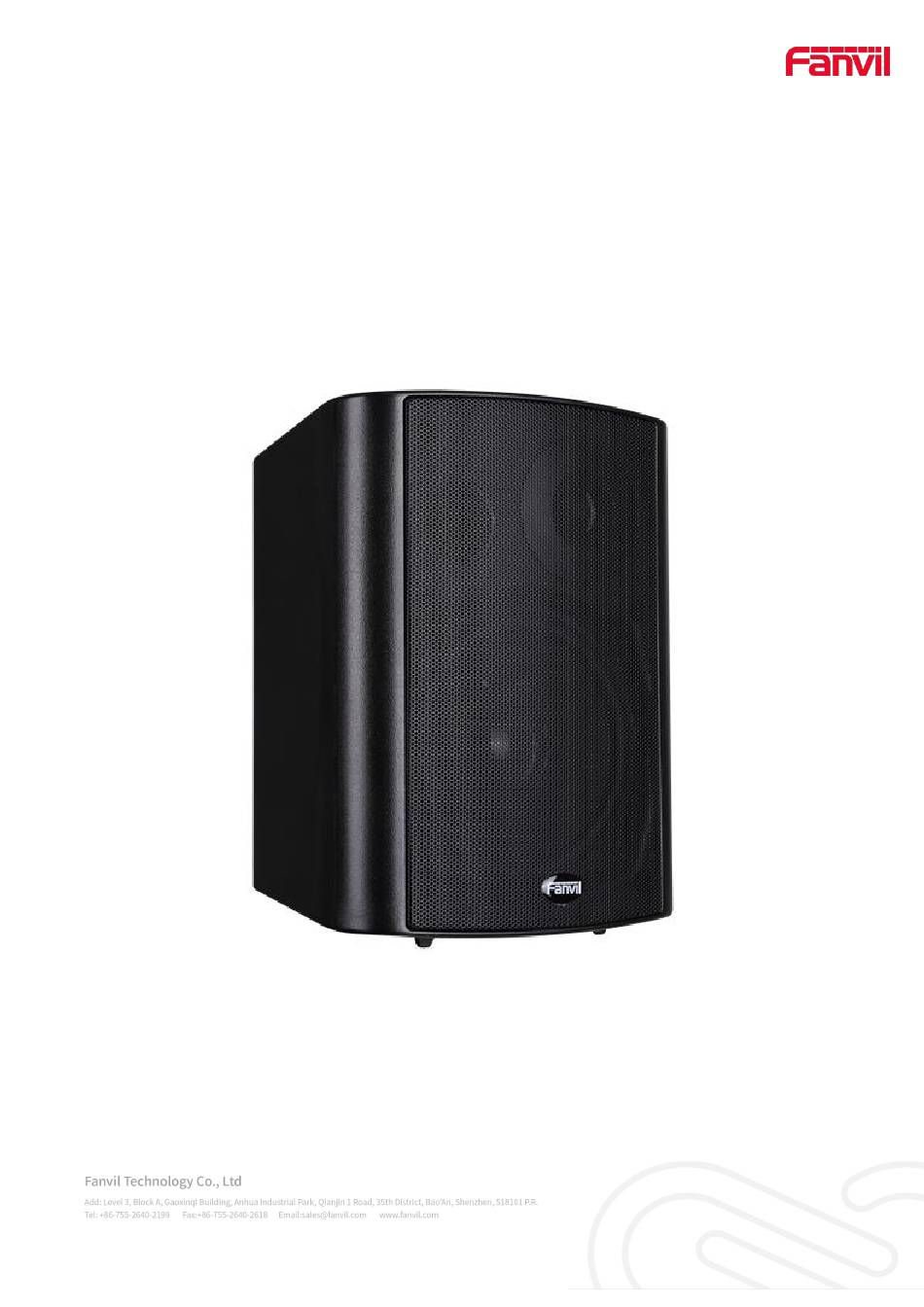

- Page 1 SIP Speaker iW30 Quick Installation...
- Page 2 Interface Explanation Interface Diagram Icons Description Feature Picture Power Input Range:+12～+24V DC Power Input port (Notice: Plus-n-Minus connection of the Power) 10M/100M Adaptive Ethernet port, connected to the WAN port network 10M/100M Adaptive Ethernet port, connected to the LAN Port computer (which can be configured to routing mode, or to bridge mode) or IPC camera.
- Page 3 Audio Connect audio port to output the audio headphones or AUDIO output external speakers. SIP Speaker Configuration Step One: Connect to the network The product factory default network mode is static IP address 192.168.1.128.Connect the end of network cable to the device WAN port, another end is connected to the LAN port of the router, then the hardware connection is completed.
- Page 4 Use the default IP scanner tool to get it: Network Scanner 1) Install the scanner tool: Network Scanner; (Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe 2) Ensure the working computer (installing IP scanner tool, exe.) is in the same local network with the corresponding device;...
- Page 5 Step Five: Add SIP account Step Six：The Volume adjustment Set the device volume size, as shown below, click [Apply]. Hands-free volume setting: normal call speaker volume size. Broadcast output volume: server music broadcast speaker volume size. Signal volume: call ringing, power back to ling, correct tone, error tone and other volume size. Microphone Input Volume: microphone volume size Step seven：Setting Speaker Settings mode The Speaker Settings default mode is <panel speaker>，the output power is limited to 10W。...
- Page 6 supply input voltage：POE/10W,12V/2A 10W,18V/2A 20W,24V/2A 30W。 Step eight：Set the camera (if not connected can skip) <Local>mode：Connect the original camera. You just need to input the factory authentication code of the original camera to active the function. <External>mode：To connect a non-original camera, insert the camera into another LAN or LAN port.
