FH-S01

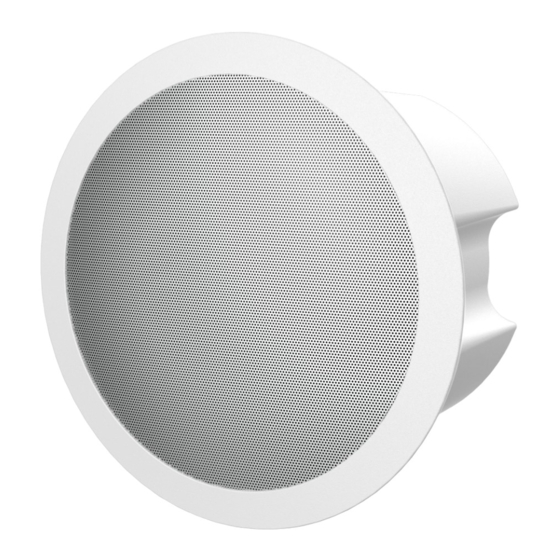

Ceiling Speaker
Quick Installation Guide

Advertisement

loading

Related Manuals for Fanvil FH-S01

Summary of Contents for Fanvil FH-S01

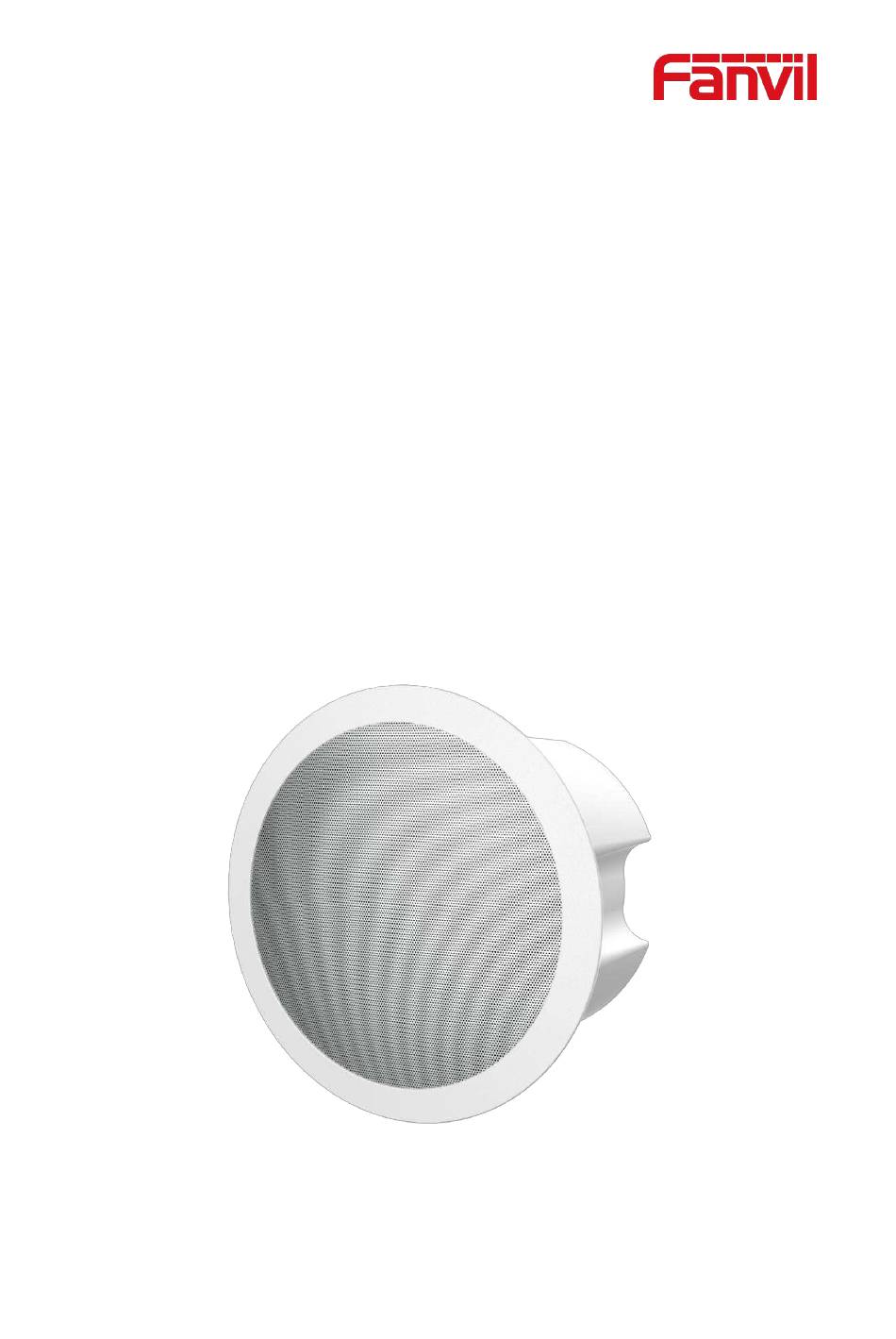

  • Page 1 FH-S01 Ceiling Speaker Quick Installation Guide...
  • Page 2 ① Package Contents Ceiling speaker Quick Installation Guide ② Physical specification 1) Ceiling Speaker A、Size specification B、Net cover and four eye bolts 1/4” eye bolt Net cover...

  • Page 3: Interface Description

    2)Interface description ① ② ③ ④ Interface Description Ethernet interface: standard RJ45 interface, 10/100M adaptive, support PoE powered, it is recommended to use CAT5 or CAT5E network cable. Power interface： 12V~24V/2A input 1 set of short-circuit input interface: input devices for connecting switches, infrared sensor, door sensor, vibration sensors etc.

  • Page 4: Ceiling-Mounted Installation

    Model 2：PoE ③ Installation Diagram Ceiling-mounted Installation Step1：Install Speaker A、According to the installation position, punch a round hole in the ceiling to hold the back box dimension of the ceiling speaker. B、Turn out the four bolts of the speaker, press down, and push out the net cover. C、Turn back bolts, insert the ceiling speaker through the round hole made before, then turn out the bolts.
  • Page 5 Step 2. Connect peripherals If you need to connect other input and output devices, please connect to the host through the cable. Step 3. Power on the device,If it works normally, the installation is complete. ④ Searching IP address The default WAN mode is DHCP, Querying the IP address with the IP Scanner：...
  • Page 6 ⑤IP Ceiling Speaker setting Step 1: Log in the web setting page of ceiling speaker Input IP address of indoor station (e.g. http:// 172.18.35.7) into the address bar of PC’s web browser. The default user name and password are both admin. Step 2：Add the SIP account Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters.
  • Page 7 Step 3：Feature Setting Step 4：Security Settings If you need to connect other input and output devices, please set the Input and Output setting in the Security Settings：...
