Fanvil iW-SA30 Quick Installation Manual

Sip speaker
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

iW-SA30
SIP Speaker Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-SA30 and is the answer not in the manual?

Questions and answers

Related Manuals for Fanvil iW-SA30

Summary of Contents for Fanvil iW-SA30

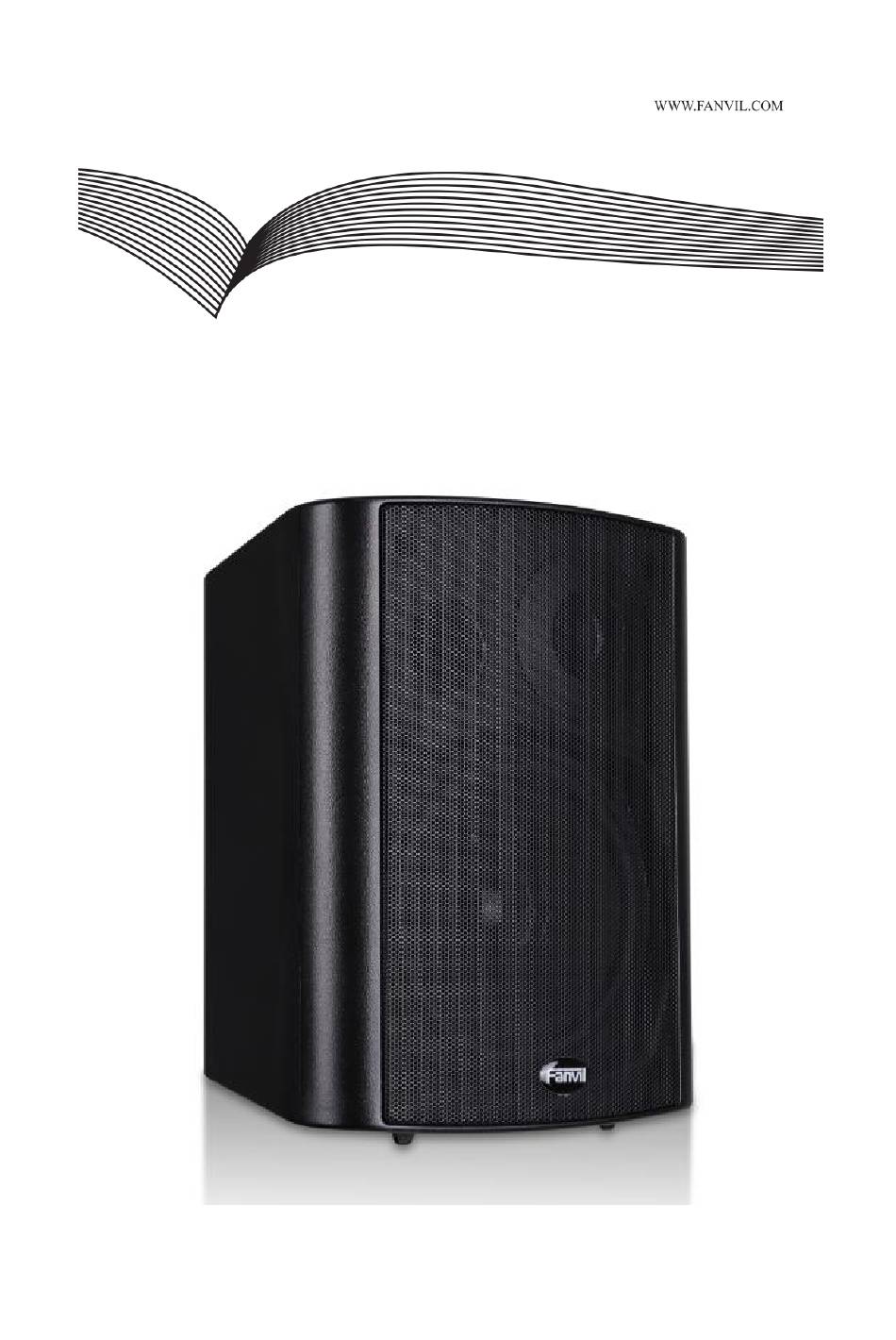

  • Page 1 SIP Speaker Quick Installation Guide...
  • Page 2 Interface Explanation Interface Diagram Speaker Port Description Feature Picture DC Power Input Input Range:+12～+24V DC port (Notice: Plus-n-Minus connection of the Power) 10M/100M Adaptive Ethernet port, connected to the WAN port network 10M/100M Adaptive Ethernet port, connected to the LAN Port computer(which can be configured to routing mode, or to bridge mode) 1，...
  • Page 3 SIP Speaker Configuration Step One: Connect to the network Connect the end of network cable to the device WAN port, another end is connected to the LAN port of the router, then the hardware connection is completed. Normally, you should set your network to DHCP mode.
  • Page 4 SIP Speaker Configuration Step Three: Log in the WEB admin interface of the device Input IP address (e.g.: http://192.168.1.128) the Web browser, the default user name: admin, password: admin. Step Four: Modify the device description...
  • Page 5 SIP Speaker Configuration Step Five: Add SIP account SIP Speaker Configuration Step Six：The Volume adjustment Method one: through the WEB can adjust the size of the volume, mainly is two, < Broadcast Output Volume > and < Handsfree Hardware Speakerphone Gain> below. The software gain, not greater than 5 Hardware gain...
