Summary of Contents for Kogan KABISS590DA

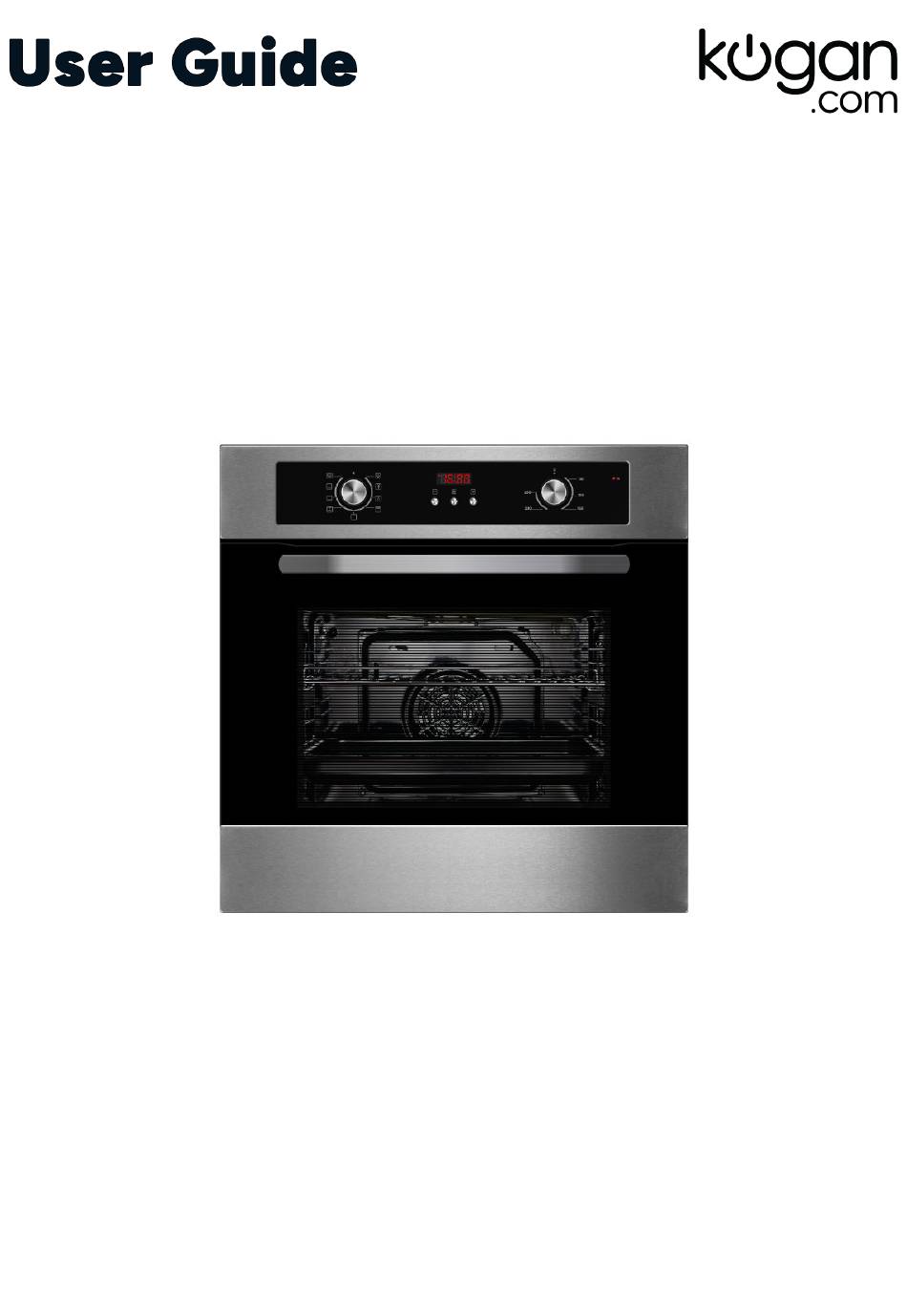

- Page 1 60cm Electric Built-in Oven with Digital Timer (5 Functions) KABISS590DA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Before First Use Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
• If the power cord or plug is damaged, cease use immediately and contact help.Kogan.com for support to avoid fire or electric shock. • Do not use abrasive cleaners or metal scrapers on the oven glass as they may scratch the surface and cause the glass to shatter. - Page 4 • After unpacking the oven, ensure it has not been damaged during transit. If it has been damaged, cease use immediately and contact help.Kogan.com for support. • Keep packaging materials, such as plastic bags and nails, out of children’s reach to avoid accidents.
-
Page 5: Overview
Overview Control panel Ventilation openings Mounting hole Mounting hole Glass door Handle... -
Page 6: Installation
Installation Standing Cupboard Space Requirements • Reserve 5mm for the door panel at the top and bottom respectively. • Reserve 20mm for the door panel on the left and right respectively. • Reserve 20mm for the door panel in thickness. •... - Page 7 Ground Cupboard Space Requirements • Reserve 5mm for the door panel at the top and bottom respectively. • Reserve 20mm for the door panel on the left and right respectively. • Reserve 20mm for the door panel in thickness. Minimum bottom ventilation area: 250mm...
- Page 8 If the appliance is installed under a cooktop, the minimum thickness of worktop A is shown below: Cooktop Type Worktop A Induction cooktop 37mm Full-surface induction cooktop 47mm Gas cooktop 30mm Electric cooktop 27mm • The thickness of the cupboard is 20mm. •...
- Page 9 Installation Customise the cupboard according to the space requirements. Before installation, ensure the electrical outlet is functional, properly grounded, and that the cupboard dimensions meet the installation requirements. Position the appliance in its designated location in the kitchen, install it in the cupboard, and connect it to the power supply.
- Page 10 Accessories Grill Rack Grill Tray Grill food or place heat-resistant cooking Cook large portions of food or catch containers. food scraps. Using the accessories: To ensure proper oven operation, the grill rack and grill tray should only be positioned between the first and fifth levels. When used together, always place the grill tray beneath the grill rack.
-
Page 11: Before First Use
Before First Use • Ensure the oven has been properly installed before operation. • Remove all transport protection materials, packaging items, and accessories (e.g., foam, cardboard, grill tray, grill rack) to prevent fire hazards. • Clean the oven cavity and accessories with soapy water and a soft cloth. •... -
Page 12: Operation
Operation Control Panel Function Dial Temperature Dial Time Buttons Symbol Function Description Observe the progress of cooking without opening the Lamp door. The lamp will light for all cooking functions, except ECO. The circulation of air at room temperature (without the use of any heat) enables quicker thawing of frozen Defrost food. -
Page 13: Setting The Clock
Setting the Clock When connecting the oven to the power supply for the first time, set the clock. • Press the ‘+’ or ‘-’ buttons to adjust the hour. • Press the ‘Arrow’ button to confirm the hour setting. • Press the ‘+’... -
Page 14: Manual Mode
Manual Mode • In manual mode, only the current time and the ‘ ’ symbol is displayed. Cooking time is controlled by the user. • If there is no operation for 5 hours, the displayed time will flash. After 10 hours, the oven will return to standby mode. - Page 15 Cooking End Time Set the oven to finish cooking at a specific clock time. Press the ‘Arrow’ button until ‘End’ appears on the display. Adjust the end time using the ‘+’ or ‘-’ button. Press the ‘Arrow’ button to confirm and start cooking. The ‘ ’ and ‘A’ icons will remain illuminated.
-
Page 16: Cleaning & Care
Replace the bulb with a new one of the same type, ensuring it is resistant to temperatures up to 300°C. For replacement bulbs, contact help.Kogan.com for support. Insert the new bulb, replace the lamp cover, and ensure it is securely in place. -
Page 17: Specifications
Main power switch is not Unable to start. Connect the power supply. turned on. Oven door is not closed. Close the oven door. Contact help.Kogan.com for Lamp does not Lamp is faulty. come on. support. Pungent odour or No action required; this is First use. -
Page 18: Notes
Notes... - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
