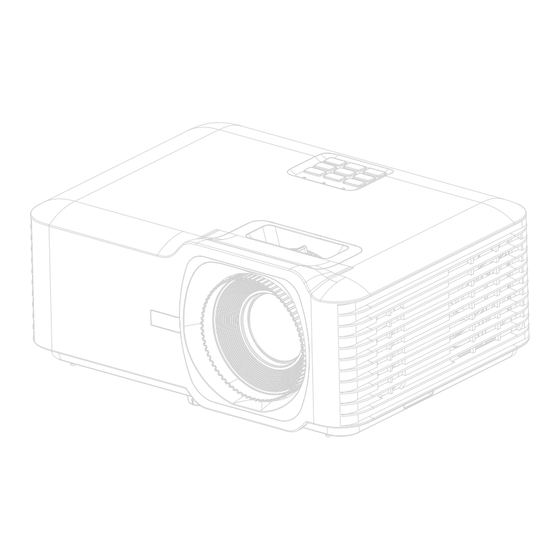

ViewSonic VS20367 User Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

LS630HD

LS630W

Projector

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box on our website.

Model No. VS20367 | VS20366

P/N: LS630HD | LS630W

Table of Contents

Need help?

Do you have a question about the VS20367 and is the answer not in the manual?

Questions and answers

Summary of Contents for ViewSonic VS20367

Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box on our website.
Page 2 At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
Page 3: Safety Precautions
Safety Precautions following Safety Precautions before you start using the projector. Please read the • Keep this user guide in a safe place for later reference. • Read all warnings and follow all instructions. • Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
Page 4 (UPS). • If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector. • Use only attachments/accessories specified by the manufacturer.
Page 5 Safety Precautions - Ceiling Mounting Please read the following Safety Precautions before you start using the projector. If you intend to mount the projector on the ceiling, it is strongly recommended that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.
Page 6: Laser Caution
Laser Caution This product belongs to CLASS I laser product and complies with IEC 60825-1:2014, EN 60825-1:2014/A11:2021, EN 50689:2021. CLASS 1 CONSUMER LASER PRODUCT EN50689:2021. IEC 60825-1:2014, EN 60825 1 2014 A11 2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as deﬁned in IEC 62471-5:Ed.1.0.
Page 7: Table Of Contents
Contents Safety Precautions ............3 Introduction ..............9 Package Contents ....................9 LS630HD ........................9 LS630W ......................... 10 Product Overview ....................11 Projector ........................ 11 Keypad ........................12 Indicator Lights ...................... 12 I/O Ports ........................ 13 Remote Control ..................... 14 Initial Setup ............... 18 Choosing a Location - Projection Orientation ............18 Projection Dimensions ..................19 LS630HD ........................
Page 8 Menu Operation ............34 On-Screen Display (OSD) Menu ................34 Menu Navigation ....................35 On-Screen Display (OSD) Menu Tree ..............36 Menu Options .......................41 Display Menu......................41 Audio Menu ......................45 Setup Menu ......................46 Network Menu ...................... 49 Information Menu ....................51 Appendix ..............
Page 9: Introduction
Introduction Package Contents LS630HD Number Description Projector Remote Control Batteries Quick Start Guide Power Cord Power Adapter NOTE: The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more information.
Page 10: Ls630W
LS630W Number Description Projector Remote Control Batteries Quick Start Guide Power Cord Power Adapter NOTE: The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more information.
Page 11: Product Overview
Product Overview Projector Number Description Remote IR Sensor Keypad Focus Ring Vent (outlet) Zoom Ring Vent (inlet) Security Bar Adjuster Foot Projection Lens IMPORTANT: Do not block the projector’s intake and exhaust vents.
Page 12: Keypad
Keypad SOURCE ENTER AUTO MENU EXIT Description OURCE ENTER AUTO Toggles the projector between standby mode and Power Power On. MENU Manually corrects distorted images resulting from an Keystone EXIT angled projection. SOURCE ENTER AUTO Selects the desired menu items and makes SOURCE ENTER AUTO...
Page 13: I/O Ports
I/O Ports Port Description DC IN DC IN socket. AUDIO OUT Audio signal output socket. USB A 5V/1.5A (Service) USB Type A port for power and service. RS-232 RS-232 control port. HDMI 2 HDMI port. HDMI 1 HDMI port. LAN control port.
Page 14: Remote Control
Remote Control Button Description AV Mute Hides the screen picture and volume mute. Power Turns the projector On or Off Automatically determines the best picture timings for Auto Sync the displayed image. Source Displays the input source selection bar. Navigation Navigates and selects the desired menu items and Buttons make adjustments.
Page 15 Button Description Keystone Manually correct distorted images. Volume Decrease the volume level. Down Video Unsupported Button Unsupported Button HDMI Selects the HDMI 1 or HDMI 2 input source. Aspect Displays the aspect ratio selection bar. Page Up Unsupported Button Zoom In Increases the projected image size.
Page 16 Remote Control - Receiver Range To ensure proper function of the remote control follow the steps below: 1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s). 2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft).
Page 17 Remote Control - Replacing the Batteries 1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across. 2. Remove any existing batteries (if necessary) and install two AAA batteries. NOTE: Observe the battery’s polarities as indicated. 3.
Page 18: Initial Setup
Initial Setup Choosing a Location - Projection Orientation Personal preference and room layout will decide the installation location. Consider the following: • Size and position of your screen. • Location of a suitable power outlet. • Location and distance between the projector and other equipment. The projector is designed to be installed in one of the following locations: Location Front...
Page 19: Projection Dimensions
Projection Dimensions LS630HD 16:9 Image on a 16:9 Screen NOTE: (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 29.55 38.44 14.71 2.35 1016 39.40 1001 51.25 1302 19.61...
Page 20 16:9 Image on a 4:3 Screen NOTE: (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 27.12 35.28 13.50 2.16 1016 36.16 47.04 1195 18.00 2.88 1270 45.20 1148...
Page 21: Projection Dimensions
Projection Dimensions LS630W 16:10 Image on a 16:10 Screen NOTE: (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 30.20 39.28 15.90 1.97 1016 40.26 1023 52.37 1330 21.20...
Page 22 16:10 Image on a 4:3 Screen NOTE: (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 28.49 37.06 15.00 1.86 1016 37.98 49.41 1255 20.00 2.48 1270 47.48 1206...
Page 23: Mounting The Projector
NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate. 1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
Page 24: Making Connections
Making Connections Connecting to Power 1. Connect the power cord to the power adapter. 2. Connect the power adapter to the DC IN jack at the rear of the projector. 3. Plug the power cord into a power outlet. NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit.
Page 25: Connecting To External Devices
Connecting to External Devices HDMI Connection Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1 or HDMI 2 port of your projector.
Page 26: Audio Connection
Audio Connection You can connect to various external sound delivery devices via the Audio Out port.
Page 27: Usb And Network Connection
USB and Network Connection USB Type A Connection The USB port is for supplying power (e.g., dongles) and service needs. NOTE: The USB port does not supply power when the projector is in standby mode. Network Connection Plug the network cable into the LAN port.
Page 28: Rs-232 Connection
RS-232 Connection When you use a RS-232 serial port cable to connect the projector to an external computer certain functions can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select, Brightness, and more.
Page 29: Using The Projector
Using the Projector Turning the Projector On 1. Make sure the projector’s power cord is properly connected to a power outlet. 2. Press the Power button on the projector or remote control to turn on the projector. NOTE: • The Power Indicator Light will be flashing blue during startup. •...
Page 30: Selecting An Input Source
Selecting an Input Source The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. When Auto Source is on, the projector will automatically search for input sources. If multiple sources are connected, press the Source button on the projector or remote control to select the desired input.
Page 31: Adjusting The Projected Image
Adjusting the Projected Image Adjusting the Projector’s Height and Projection Angle The projector is equipped with three adjustment feet. Adjusting the feet will change the projector’s height and the vertical projection angle. Adjustment Feet Tilt-Adjustment Ring...
Page 32: Adjusting The Focus, Keystone, And Zoom
Adjusting the Focus, Keystone, and Zoom You can improve and adjust the clarity and position of the image by adjusting the Focus Ring, Keystone Keys, or Zoom Ring.
Page 33: Turning The Projector Off
Turning the Projector Off 1. Press the Power button on the projector or remote control and a “power off message” will appear. 2. Press the Power button again to confirm and shut down the projector. 3. The Power Indicator Light will turn solid red and enter standby mode.
Page 34: Menu Operation
Menu Operation On-Screen Display (OSD) Menu The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. Display Image Settings Inactive 3x Fast Input Aspect Ratio Zoom Keystone Select Exit Enter Menu Description Adjust Image, 3D, Aspect Ratio, Edge Mask, Zoom,...
Page 35: Menu Navigation
Menu Navigation The projector has multilingual on-screen display menus that allow for image and settings adjustment. 1. To open the On-Screen Display (OSD) Menu, press the Menu/Exit button on the projector or the remote control. 2. When the OSD is displayed, use the Navigation buttons ( ) to select any item in the main menu.
Page 36: On-Screen Display (Osd) Menu Tree
On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option Presentation Brightest Movie Color Mode Gaming Golf Brightness (-/+, -50~50) Contrast (-/+, -50~50) Sharpness (-/+, 1~15) Color (-/+, -50~50) Tint (-/+, -50~50) Film Video Gamma Graphics Standard (2.2) Brilliant Display Image Settings (-/+, 1~10) Color™...
Page 37 Main Menu Sub-menu Menu Option Auto RGB (0~255) Color Settings Color Space RGB (16~235) Dynamic Black Image Settings Light Source Light Source Mode Power 100%~50% Reset Inactive 3x Fast Input Active 3D Mode Auto Top and 3D Format Bottom Display Frame Sequential 3D Sync Invert...
Page 38 Main Menu Sub-menu Menu Option Mute Audio Volume (-/+, 0~10) DeskFront DeskRear Projection CeilingFront CeilingRear Direct Power Signal Power Power Settings Auto Power (-/+, 0~180)/5 Off (min.) minutes Power Mode Active (Standby) ErP Off Setup Power On Lock Security Security Timer Change Password HDMI CEC...
Page 39 Main Menu Sub-menu Menu Option English Deutsch Français Italiano Español Português Polski Nederlands Svenska Norsk Suomi ελληνικά 繁體中文 Language 簡体中文日本語 한국어 Русский Options Setup Magyar Čeština ‫يبرع‬ ไทย Türkçe ‫یسراف‬ Tiếng Việt Bahasa Indonesia Auto Source High Altitude Keypad Lock Default Splash Screen User...
Page 40 Main Menu Sub-menu Menu Option Network Status MAC Address DHCP IP Address xxx.xxx.xxx Subnet Mask xxx.xxx.xxx Gateway xxx.xxx.xxx xxx.xxx.xxx Reset Crestron Network Extron PJ Link Control AMX Device Discovery Telnet HTTP Serial Number Source Resolution Refresh Rate Color Mode Light Source Information Hours Light Source...
Page 41: Menu Options
Menu Options Display Menu Display Image Settings Inactive 3x Fast Input Aspect Ratio Zoom Keystone Select Exit Enter Menu Description There are several predefined display modes that you can choose from to suit your viewing preference. Suitable for most presenting needs for Presentation business and education environments.
Page 42 Menu Description The higher the value, the brighter the image. Lower Brightness values will result in a darker image. Use this to set the peak white level after you have Contrast previously adjusted the Brightness setting to suit your selected input and viewing environment. A high value results in a sharper picture;...
Page 43 Menu Description Automatically adjust the picture Dynamic Black brightness in order to give optimum contrast performance. Light Source Dim the light output, lowering power Mode Eco. consumption. Image Settings Light Source Select the power percentage Power (50%~100%) for brightness mode. Return current display mode settings (Brightness, Contrast, Sharpness, Color, Tint, Gamma, Brilliant Color, Reset...
Page 44 Menu Description Select the aspect ratio of the projected image. Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration.
Page 45: Audio Menu
Audio Menu Audio Mute Volume Select Exit Enter Menu Description Mute Temporarily turn off the sound. Volume Adjust the sound level.
Page 46: Setup Menu
Setup Menu Setup Projection Power Settings Security HDMI CEC Test Pattern Options Reset Select Exit Enter Menu Description Projection Select the preferred projection: Front, Rear, Ceiling-Top, and Rear-Top. Automatically power on the projector when AC Direct Power power is supplied, without pressing the Power button on the projector or the remote control.
Page 47 Menu Description NOTE: • There is no USB power supply when the projector is in standby mode. • If you wish to connect to the projector via LAN in its standby mode, be sure you have selected “Erp Off”. • When you deactivate the power management function, energy consumption will increase.
Page 48 Menu Description When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI CEC control feature in the projector’s OSD. This lets one device or multiple devices in a group power on or power off via HDMI CEC in a typical configuration.
Page 49: Network Menu
Network Menu Network Control Select Exit Enter Menu Description View network information and enable/disable DHCP. NOTE: The projector will automatically detect the projector’s current IP address, Subnet Mask, Gateway, and DNS addresses when DHCP is enabled. Enable or disable network control suites. NOTE: To connect successfully, the control suite must be enabled.
Page 50 Controlling the Projector through a Network The projector provides diverse networking and remote management features. The LAN /RJ45 function of the projector, through a network, can remotely manage: Power On/Off, Volume adjustment, Input select, Brightness, and more. NOTE: Please ensure Network > Control > HTTP is enabled. 1.
Page 51: Information Menu
Information Menu View Serial Number, Source, Resolution, Refresh Rate, Color Mode, Light Source Hours, Light Source Mode, and Firmware Version information. Information 0000123456789 Serial Number HDMI Source 1080P Resolution 24Hz Refresh Rate None Color Mode 99999 hr Light Source Hours Dynamic Black Light Source Mode FW Version...
Page 52: Appendix
Appendix Specifications Specifications Item Category LS630HD LS630W Type Laser Display Size 30”~300” 1.187-1.544 1.13~1.47 Projector Throw Ratio (100”@2.50m) (100”@2.56m) Optical Zoom 1.3x Display System 1-CHIP DMD Input Signal HDMI : 15~102 kHz, f :23~120 Hz, Pixel rate: 170 MHz Resolution Native 1920 x 1080 1280 x 800...
Page 53: Projector Dimensions
Projector Dimensions 286 mm (W) x 129 mm (H) x 216 mm (D)
Page 54: Timing Chart
Timing Chart HDMI - PC Signal Timing Resolution Refresh Rate (Hz) 640 x 480 60/67/72/75 720 x 400 800 x 600 56/60/72/75 SVGA 832 x 624 1024 x 768 60/70/75 SXGA 1280 x 1024 60/75 1152 x 864 PowerBook G4 1152 x 870 1280 x 720 60/120...
Page 55 HDMI - 3D Signal Resolution Refresh Rate (Hz) Frame packing 720p 1280 X 720 50/59.94/60 1080p 1920 X 1080 23.98/24 Side-by-Side 1080i 1920 X 1080 50/59.94/60 Top-and-Bottom 720p 1280 X 720 50/59.94/60 1080p 1920 X 1080 23.98/24 NOTE: • 1080i @ 25 Hz and 720p @ 50 Hz will run in 100 Hz; other 3D timing will run in 120 Hz.
Page 56: Troubleshooting
Troubleshooting This section describes some common problems that you may experience when using the projector. Problem or Issue Possible Solutions • Ensure the power cord is properly attached to the projector and to the power outlet. • If the cooling process has not completed, please The projector does not wait until it has finished then try to turn on the turn on...
Page 57 Problem or Issue Possible Solutions • Ensure there are no obstacles between the remote control and projector; and that they are within The remote control range, 8 m (26 ft). does not work • The batteries may be out of power, please check and replace if necessary.
Page 58: Led Indicators
LED Indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown. Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicators light up or flash, please contact your nearest service center for assistance.
Page 59: Maintenance
• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
Page 60: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 61: Ce Conformity For European Countries
CE Conformity for European Countries The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Ecodesign Directive 2009/125/EC. The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).
Page 62: Declaration Of Rohs2 Compliance
Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Actual Concentration...
Page 63: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...
Page 64: Copyright Information
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association.
Page 65: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn www.viewsonic.com/hk/ 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/...
Page 66: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
Page 67 (e) the serial number of the product. 3. Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. 4. For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
Page 68 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
Page 69: Mexico Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
Page 70 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based...
Page 71 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
